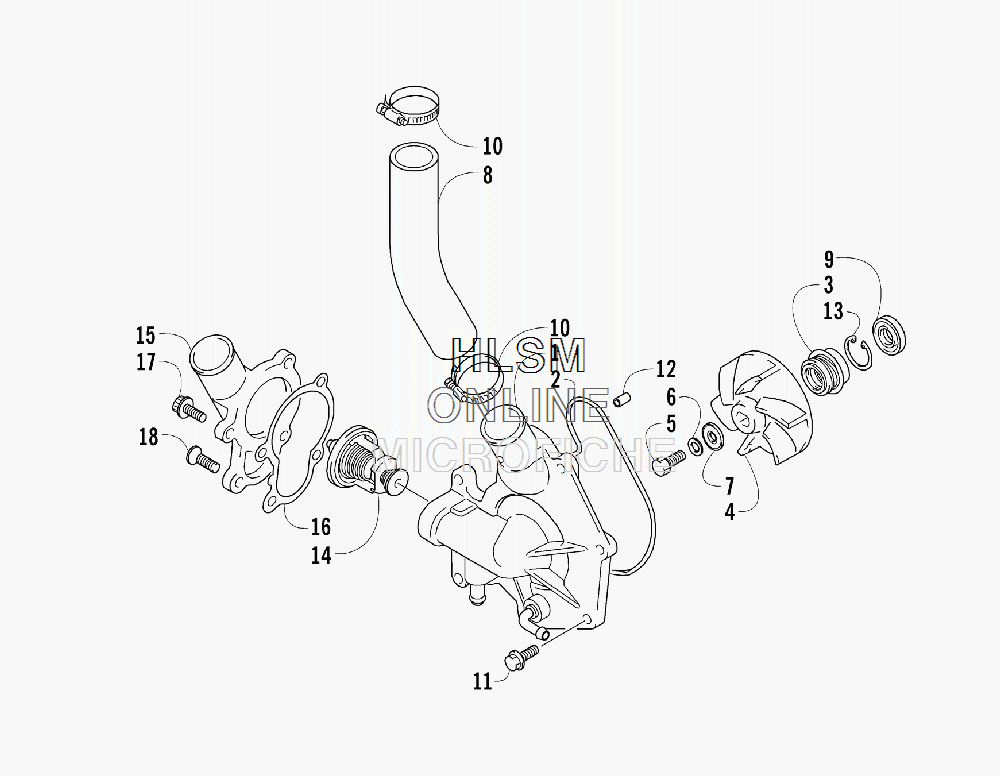

WATER PUMP/WATER MANIFOLD для Arctic Cat M1000 SNO PRO 162 INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
13007-296 CASE, WATER PUMPCASE, WATER PUMP
-
23007-297 O-RING, WATER PUMP CASEO-RING, WATER PUMP CASE
-
33007-476 SEAL, WATER PUMPSEAL, WATER PUMP
-
43007-299 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
53003-426 BOLT, 6 X 13 YEL CHROM.BOLT, 6 X 13 YEL CHROM.
-
63003-431 WASHER, 6MMWASHER, 6MM
-
73007-300 GASKET (6X17X2.2)GASKET (6X17X2.2)
-
83007-301 HOSE, WATER INLETHOSE, WATER INLET
-
93007-302 SEAL,OIL (12X25X7)SEAL,OIL (12X25X7)
-
103004-786 CLAMP, HOSECLAMP, HOSE
-
113007-409 SCREW, CAPSCREW, CAP
-
123006-321 PIN, DOWELPIN, DOWEL
-
133007-303 CIRCLIPCIRCLIP
-
143007-041 THERMOSTATTHERMOSTAT
-
153007-304 CAP, THERMOSTATCAP, THERMOSTAT
-
163007-543 GASKET, THERMOSTAT CAPGASKET, THERMOSTAT CAP
-
173007-446 SCREW, CAPSCREW, CAP
-
183007-306 SCREW, MACHINESCREW, MACHINE
