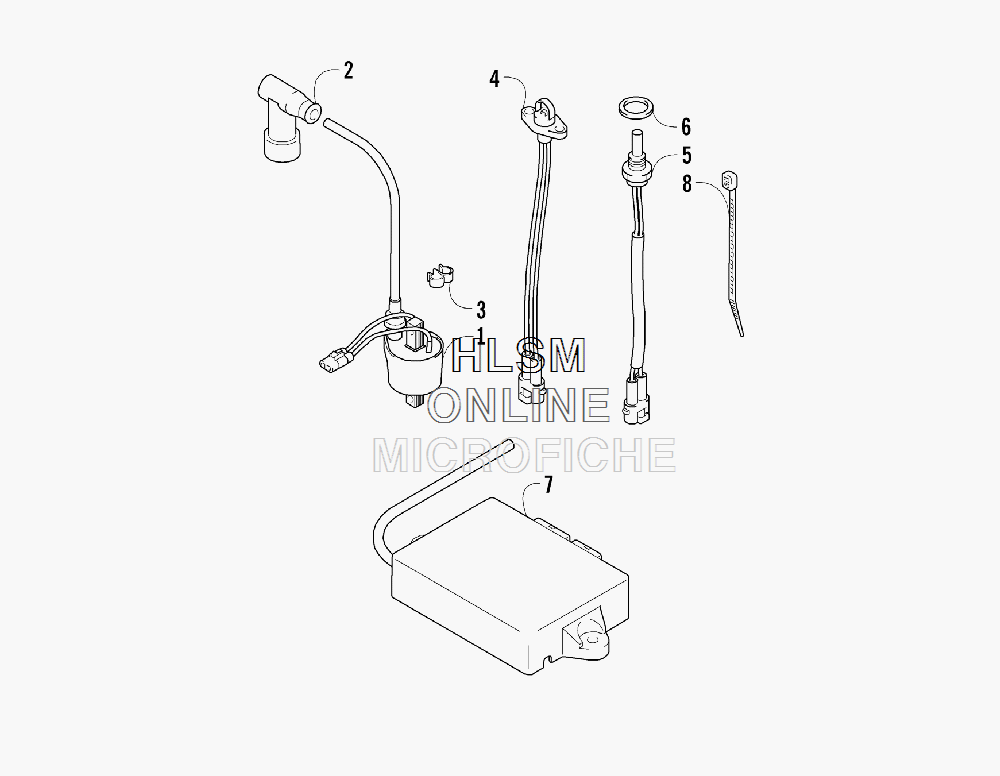

ELECTRICAL для Arctic Cat M1000 SNO PRO 162 INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
13007-548 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
23006-367 CAP, SPARK PLUG-NGK TB05EMDCAP, SPARK PLUG-NGK TB05EMD
-
33005-387 RETAINER, WIRERETAINER, WIRE
-
43006-728 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53006-725 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHERWASHER
-
73007-758 ECU L, '10 1000 (HIGH) CIRCLEECU L, '10 1000 (HIGH) CIRCLE
-
73007-759 ECU N, '10 1000 (HIGH) SQUAREECU N, '10 1000 (HIGH) SQUARE
-
73007-760 ECU S, '10 1000 (HIGH) TRIANGLEECU S, '10 1000 (HIGH) TRIANGLE
-
83005-237 TIE, CABLETIE, CABLE
