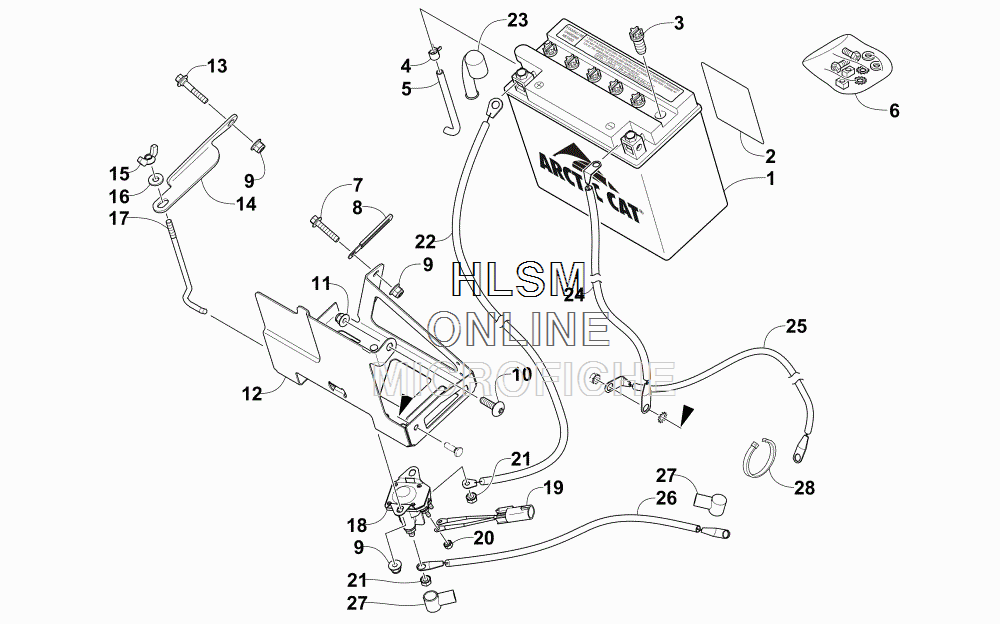

BATTERY AND TRAY ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE - 2017 года выпуска
-
№АртикулНазвание
-
10745-423 BATTERY (INC. 2-6)BATTERY (INC. 2-6)
-
20645-430 ...DECAL, WARNING...DECAL, WARNING
-
30645-045 ...CAP, BATTERY...CAP, BATTERY
-
40645-152 ...CLAMP, HOSE...CLAMP, HOSE
-
50645-263 ...HOSE, BATTERY...HOSE, BATTERY
-
60445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
78408-630 SCREW, CAPSCREW, CAP
-
81623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
98427-602 NUT, LOCKNUT, LOCK
-
108476-816 SCREW, MACHINESCREW, MACHINE
-
118427-802 NUTNUT
-
120745-315 TRAY, BATTERY - PAINTED BLACKTRAY, BATTERY - PAINTED BLACK
-
131623-725 SCREW, SHOULDERSCREW, SHOULDER
-
140745-318 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
150423-716 NUT, WINGNUT, WING
-
168050-217 WASHERWASHER
-
170745-329 ROD, HOLD-DOWN - BATTERYROD, HOLD-DOWN - BATTERY
-
180645-673 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
191686-708 HARNESS, ADAPTER - SOLENOIDHARNESS, ADAPTER - SOLENOID
-
200624-524 NUT W/WASHERNUT W/WASHER
-
210623-877 NUT W/WASHERNUT W/WASHER
-
220645-587 CABLE, BATTERY/SOLENOID (INC. 23)CABLE, BATTERY/SOLENOID (INC. 23)
-
230645-521 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
240645-586 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
250645-746 CABLE, STARTER-TO-GROUNDCABLE, STARTER-TO-GROUND
-
260645-745 CABLE, SOLENOID/STARTER (INC. 27)CABLE, SOLENOID/STARTER (INC. 27)
-
270645-327 ...BOOT, TERMINAL - SOLENOID...BOOT, TERMINAL - SOLENOID
-
280123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
280123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
280623-144 TIE, CABLE - 17.5 IN.TIE, CABLE - 17.5 IN.
