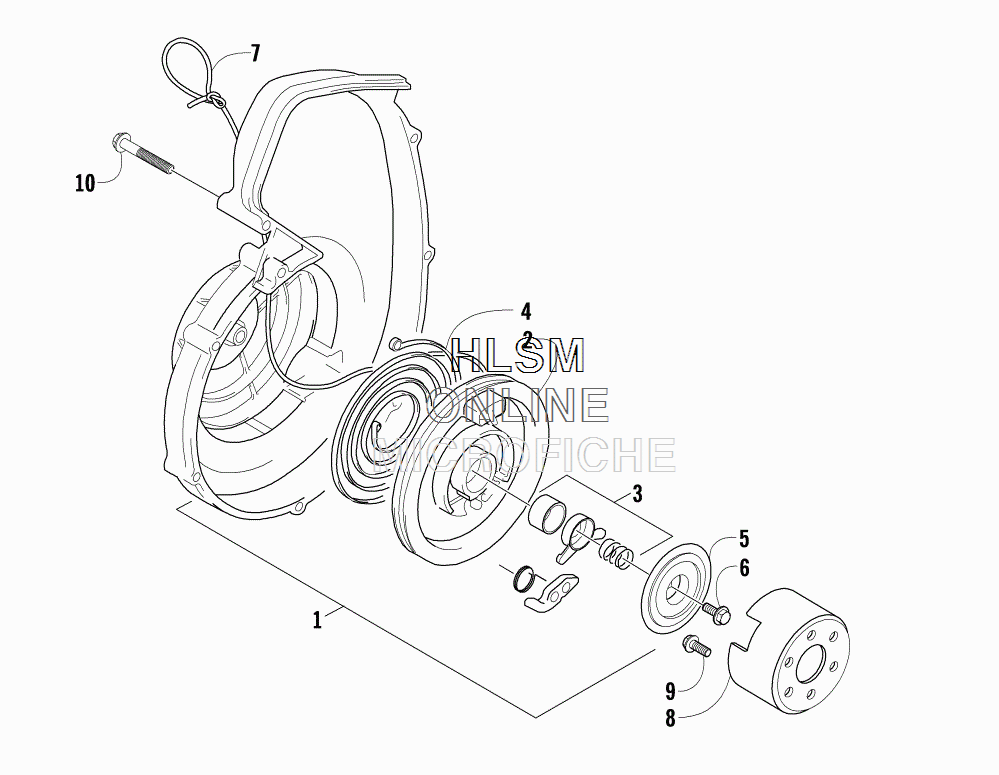

RECOIL STARTER для Arctic Cat BEARCAT 2000 XT BLUE - 2017 года выпуска
-
№АртикулНазвание
-
13007-688 RECOIL, STARTER - ASSEMBLY (INC. 2-7)RECOIL, STARTER - ASSEMBLY (INC. 2-7)
-
23006-090 ...ROLLER, STARTER...ROLLER, STARTER
-
33006-091 ...RATCHET SET...RATCHET SET
-
43007-487 ...SPRING...SPRING
-
53006-092 ...PLATE, FRICTION...PLATE, FRICTION
-
63006-093 ...BOLT...BOLT
-
73006-889 ...ROPE, STARTER (6 MM DIA.) (203 CM)...ROPE, STARTER (6 MM DIA.) (203 CM)
-
83006-020 PULLEY, STARTERPULLEY, STARTER
-
93006-463 BOLTBOLT
-
103007-488 BOLTBOLT
