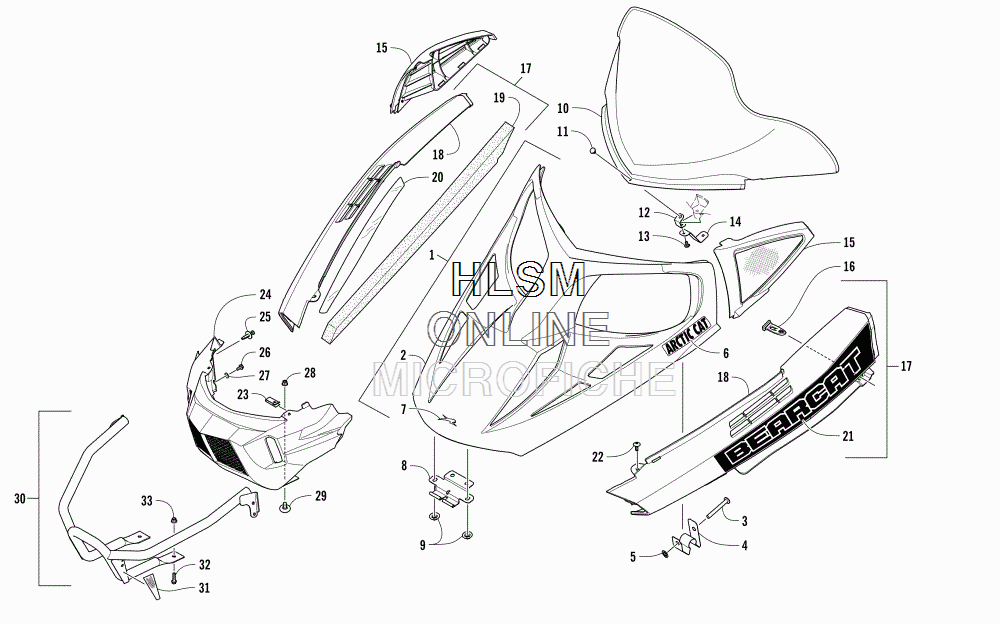

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE - 2017 года выпуска
-
№АртикулНазвание
-
14718-819 HOOD W/DECALS - WHITE (INC. 2-7)HOOD W/DECALS - WHITE (INC. 2-7)
-
27800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)...HOOD W/O DECALS - WHITE (INC. 3-5)
-
31623-610 ......PIN, RETAINING......PIN, RETAINING
-
45706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
45706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
51623-409 ......RETAINER, PUSHNUT......RETAINER, PUSHNUT
-
60621-732 ...DECAL, HOOD - "ARCTIC CAT"...DECAL, HOOD - "ARCTIC CAT"
-
74411-479 ...DECAL, AIRCAT...DECAL, AIRCAT
-
86606-027 BRACKET, HINGEBRACKET, HINGE
-
91623-469 NUT, STAMPEDNUT, STAMPED
-
105606-962 WINDSHIELD, HIGH - TINTWINDSHIELD, HIGH - TINT
-
111623-677 RIVET, PLASTICRIVET, PLASTIC
-
124606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
131623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
145606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
155606-940 BEZEL, INTAKE - RIGHT - WHITEBEZEL, INTAKE - RIGHT - WHITE
-
155606-941 BEZEL, INTAKE - LEFT - WHITEBEZEL, INTAKE - LEFT - WHITE
-
164606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
175718-056 SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 18-19, AND 21)SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 18-19, AND 21)
-
175718-057 SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 18-19 AND 21)SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 18-19 AND 21)
-
183718-886 ...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 19)...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 19)
-
183718-887 ...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 19)...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 19)
-
190617-656 ......FOAM, FRONT SPAR - RIGHT......FOAM, FRONT SPAR - RIGHT
-
190617-657 ......FOAM, FRONT SPAR - LEFT......FOAM, FRONT SPAR - LEFT
-
204606-934 FOIL, SPAR - RIGHTFOIL, SPAR - RIGHT
-
213621-182 DECAL, FRONT SPAR - RIGHTDECAL, FRONT SPAR - RIGHT
-
213621-183 DECAL, FRONT SPAR - LEFTDECAL, FRONT SPAR - LEFT
-
220623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231623-030 CLIP, U-NUTCLIP, U-NUT
-
245606-725 FASCIA, FRONT - BLUEFASCIA, FRONT - BLUE
-
250623-362 CLIP, RETAININGCLIP, RETAINING
-
260623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
278053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
288427-602 NUT, LOCKNUT, LOCK
-
291623-775 SCREW, SHOULDERSCREW, SHOULDER
-
304706-961 BUMPER, FRONT - BLACK (INC. 31)BUMPER, FRONT - BLACK (INC. 31)
-
319611-386 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
319611-387 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
328408-025 SCREW, CAPSCREW, CAP
-
338427-002 NUT, LOCKNUT, LOCK
