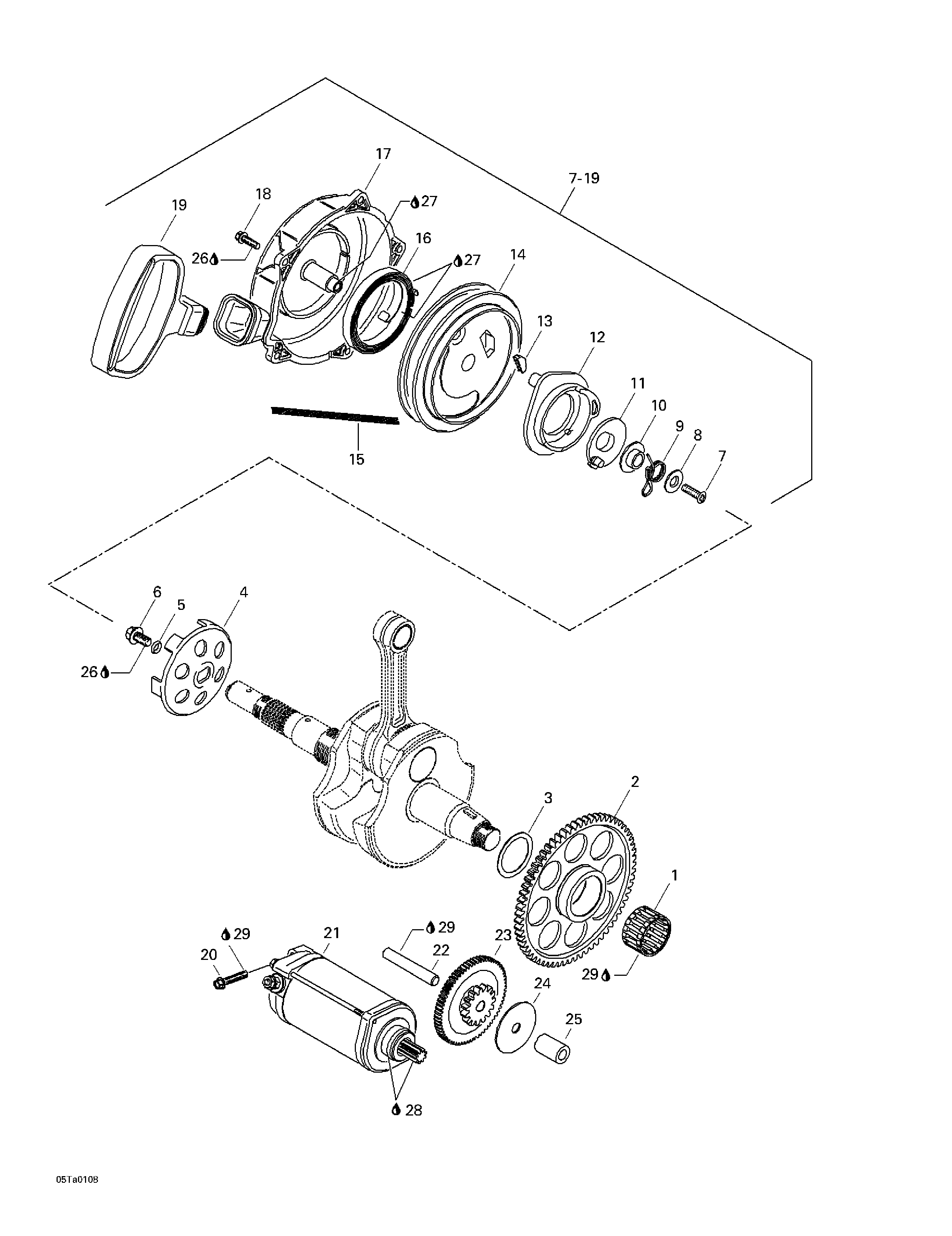

04- Rewind Starter, Electric Starter для BRP Traxter XL, 7448 - 2001
-
№АртикулНазвание
-
1711632190 Needle CageNeedle Cage
-
2711634940 Ring Gear 65 TeethRing Gear 65 Teeth
-
3711244290 Thrust WasherThrust Washer
-
4711852501 Starting PulleyStarting Pulley
-
5711650710 O-RingO-Ring
-
6711241720 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
7711296150 Rewind Starter Ass'y. Includes 7 - 19.Rewind Starter Ass'y. Includes 7 - 19.
-
7711241730 Screw Plastite M6 x 20Screw Plastite M6 x 20
-
8711244320 Flat WasherFlat Washer
-
9711938989 Locking SpringLocking Spring
-
10711847927 Stage SleeveStage Sleeve
-
11711852306 Pawl LockPawl Lock
-
12711852299 PawlPawl
-
13420852070 Key ClampKey Clamp
-
14420852283 Rope SheaveRope Sheave
-
15412500100 Starter Rope 2200 mm (Meter)Starter Rope 2200 mm (Meter)
-
16420939115 Rewind SpringRewind Spring
-
17711211960 Starter Rope HousingStarter Rope Housing
-
18711241861 Screw Hex. Flanged M6 x 20Screw Hex. Flanged M6 x 20
-
19711852515 Starting GripStarting Grip
-
20711241941 Screw Hex. Flanged M6 x 30Screw Hex. Flanged M6 x 30
-
21711296125 Electric Starter Ass'yElectric Starter Ass'y
-
21420266295 Brush Kit (Not shown)Brush Kit (Not shown)
-
21420250140 Starter O-ring (Not shown)Starter O-ring (Not shown)
-
21420250130 Starter Seal (Not shown)Starter Seal (Not shown)
-
22711229470 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
23711634970 Double Gear 15/67 TeethDouble Gear 15/67 Teeth
-
24711227620 Thrust WasherThrust Washer
-
25711847485 SpacerSpacer
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
-
28293800070 Loctite Antiseize, 8 ozLoctite Antiseize, 8 oz
