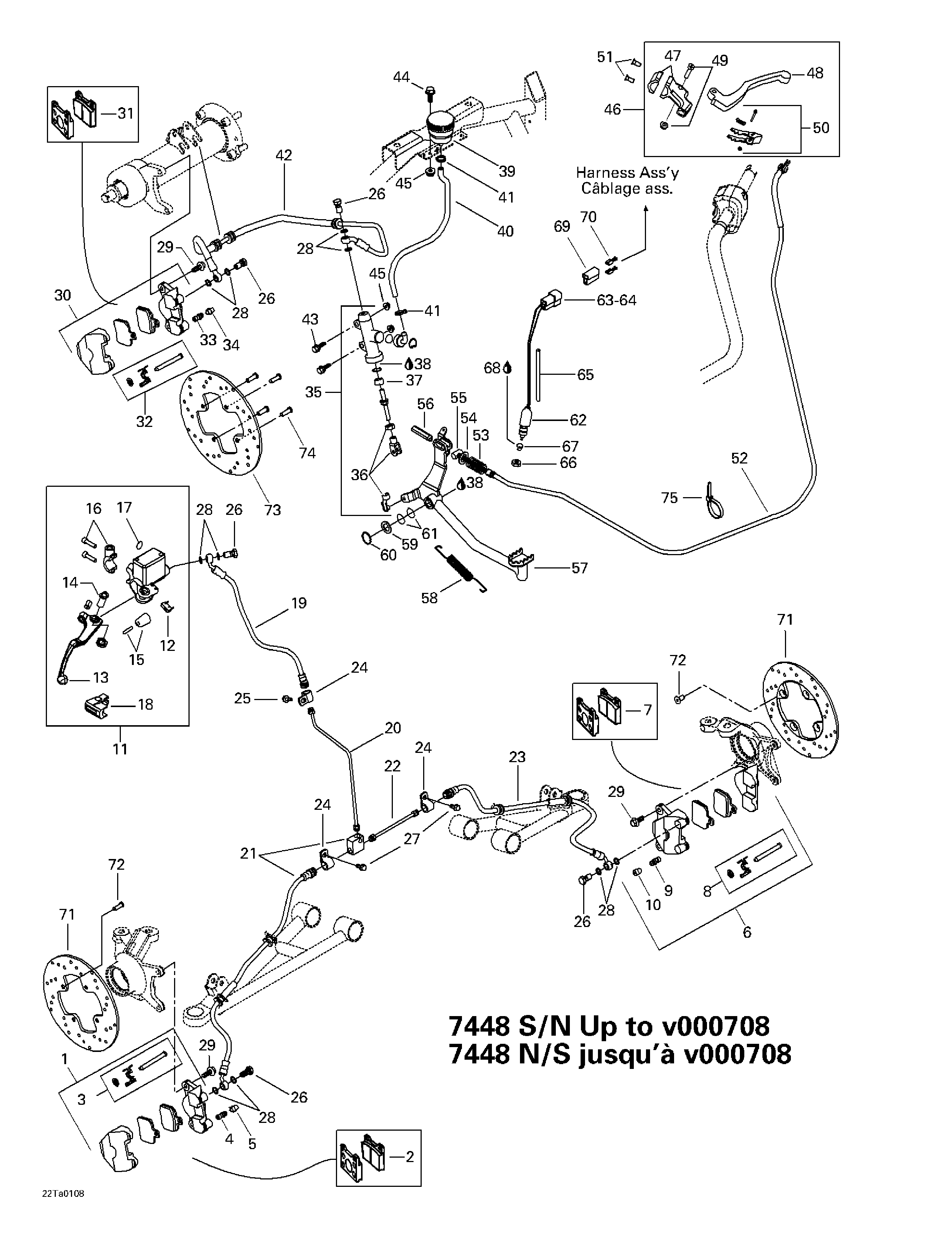

06- Hydraulic Brake (7448 Sn Up To V000708) для BRP Traxter XL, 7448 - 2001
-
№АртикулНазвание
-
1705600028 R.H. Caliper Ass'y. Includes 1 - 5.R.H. Caliper Ass'y. Includes 1 - 5.
-
2705600041 Brake PadBrake Pad
-
3705600110 Retainer KitRetainer Kit
-
4705600111 Bleeder ScrewBleeder Screw
-
5414989700 CapCap
-
6705600029 LH Caliper Ass'y. Includes 6 - 10.LH Caliper Ass'y. Includes 6 - 10.
-
7705600041 Brake PadBrake Pad
-
8705600110 Retainer KitRetainer Kit
-
9705600111 Bleeder ScrewBleeder Screw
-
10414989700 CapCap
-
11705600005 Master Cylinder Ass'y. Includes 11 - 18.Master Cylinder Ass'y. Includes 11 - 18.
-
12705600112 MicroswitchMicroswitch
-
13705600113 Arm LeverArm Lever
-
14414990200 Pin LeverPin Lever
-
15414990300 CapCap
-
16414990400 ClampClamp
-
17414990600 WindowWindow
-
18705600114 Boot RubberBoot Rubber
-
19705600007 Brake Handle HoseBrake Handle Hose
-
20705600036 Vertical TubeVertical Tube
-
21705600020 Flexible Hose R.HFlexible Hose R.H
-
22705600038 Horizontal TubeHorizontal Tube
-
23705600059 Flexible Hose L.HFlexible Hose L.H
-
24705600040 Tube ClipTube Clip
-
25210261680 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
26414920500 Banjo BoltBanjo Bolt
-
27210661940 Hex. Drilling Screw M6.3x19Hex. Drilling Screw M6.3x19
-
28414920600 WasherWasher
-
29207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
30705600031 R.H. Rear Caliper. Includes 30 - 34.R.H. Rear Caliper. Includes 30 - 34.
-
31705600041 Brake PadBrake Pad
-
32705600110 Retainer KitRetainer Kit
-
33705600111 Bleeder ScrewBleeder Screw
-
34414989700 CapCap
-
35705600006 Master Cylinder. Includes 35 - 37.Master Cylinder. Includes 35 - 37.
-
36705600021 PusherPusher
-
37705600075 Boot BellowBoot Bellow
-
38293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
39705600009 Oil HousingOil Housing
-
40705600102 Oil Housing HoseOil Housing Hose
-
41293650042 Oetiker ClampOetiker Clamp
-
42705600137 Rear Brake HoseRear Brake Hose
-
43207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
44207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
45233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
46705600129 Brake Handle Ass'y. Includes 46 - 50.Brake Handle Ass'y. Includes 46 - 50.
-
47705600184 Clamp KitClamp Kit
-
48705600130 LeverLever
-
49705600187 Pivot KitPivot Kit
-
50705600188 Block Lever KitBlock Lever Kit
-
51205351646 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
52705600099 Rear Brake CableRear Brake Cable
-
53705600144 SpringSpring
-
54705600145 Flat WasherFlat Washer
-
55705600146 Pin CylinderPin Cylinder
-
56705600147 NutNut
-
57705600131 Brake Pedal (Black)Brake Pedal (Black)
-
58705600107 Brake Pedal SpringBrake Pedal Spring
-
59503107800 WasherWasher
-
60293370012 CirclipCirclip
-
61293300053 O-RingO-Ring
-
62410106700 Brake SwitchBrake Switch
-
63409204500 Male HousingMale Housing
-
64409210000 Male TerminalMale Terminal
-
65515175442 HousingHousing
-
66250100002 Switch NutSwitch Nut
-
67570151100 Plunger CapPlunger Cap
-
68293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
69409204600 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
70561503100 Female TerminalFemale Terminal
-
71705600003 Brake Disc 205 mm (Front)Brake Disc 205 mm (Front)
-
72235381646 Screw M8 x 16 (Scotch Grip)Screw M8 x 16 (Scotch Grip)
-
73705600033 Brake Disk 220 mm (Rear)Brake Disk 220 mm (Rear)
-
74235381646 Torque Screw M8 x 16Torque Screw M8 x 16
-
75293750008 Tie RapTie Rap
-
414115200 Tie RapTie Rap
