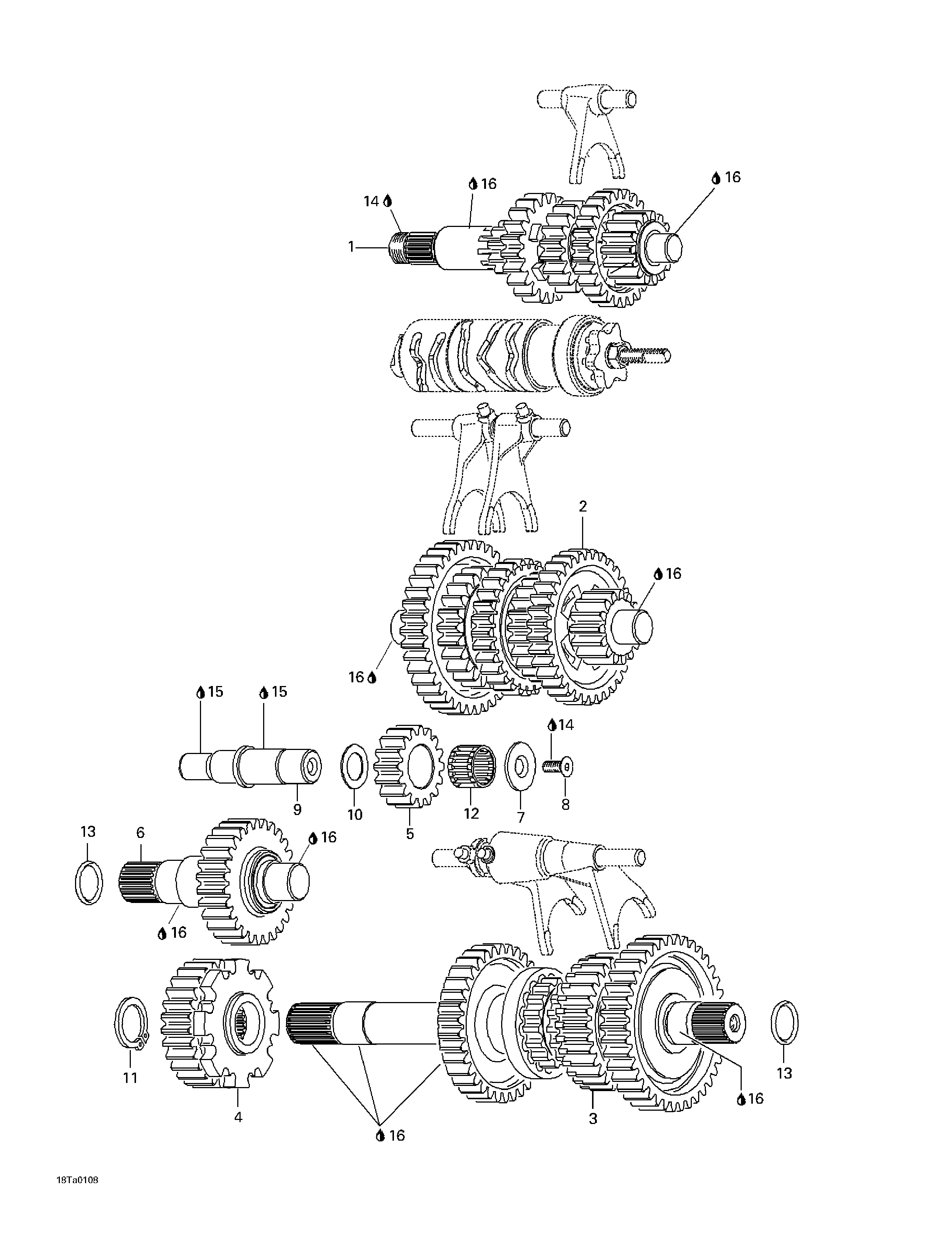

05- Transmission для BRP Traxter XL, 7448 - 2001
-
№АртикулНазвание
-
1711220487 CountershaftCountershaft
-
2711220509 Main Shaft Ass'yMain Shaft Ass'y
-
3711220497 Rear Output ShaftRear Output Shaft
-
4711634925 Output Gear 28 TeethOutput Gear 28 Teeth
-
5711634890 Sliding GearSliding Gear
-
6711220522 Front Output ShaftFront Output Shaft
-
7711244270 Stop WasherStop Washer
-
8711941430 Socket Screw M6 x 20Socket Screw M6 x 20
-
10711227440 Thrust WasherThrust Washer
-
11711945870 CirclipCirclip
-
12711632230 Needle CageNeedle Cage
-
13420430370 O-RingO-Ring
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15711297433 Molykote G-n Paste, 50gMolykote G-n Paste, 50g
-
16293800070 Loctite Antiseize, 8 ozLoctite Antiseize, 8 oz
