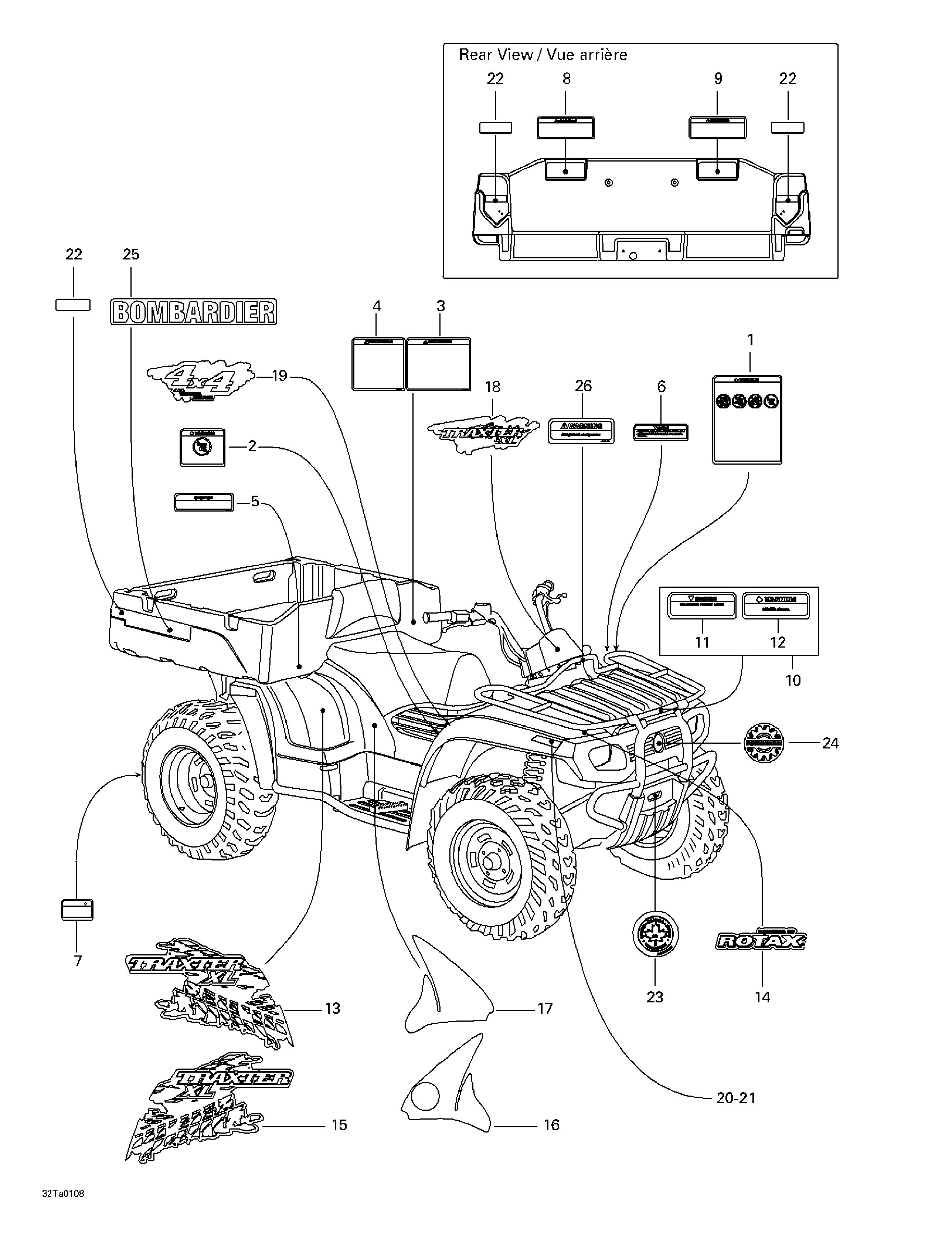

09- Decals для BRP Traxter XL, 7448 - 2001
-
№АртикулНазвание
-
1704900034 Label-Warning (Injuries/Death)Label-Warning (Injuries/Death)
-
2704900034 Label-Warning (Under 16)Label-Warning (Under 16)
-
3704900132 Label-Warning (Cargo)Label-Warning (Cargo)
-
4704900133 Label-Warning (Tire Pressure)Label-Warning (Tire Pressure)
-
5704900134 Label-Warning (Lat Compartment)Label-Warning (Lat Compartment)
-
6704900135 Label-Warning (Transmission)Label-Warning (Transmission)
-
7704900009 Label-Warning (Trailer)Label-Warning (Trailer)
-
8704900137 Label-Warning (Flamable Products)Label-Warning (Flamable Products)
-
9704900138 Label-Warning (Passenger)Label-Warning (Passenger)
-
10704900037 Labels-WarningLabels-Warning
-
13704900115 Decal-Fender RhDecal-Fender Rh
-
14704900063 Label-RotaxLabel-Rotax
-
15704900123 Decal-Fender LhDecal-Fender Lh
-
16704900065 Label-Lat LhLabel-Lat Lh
-
17704900066 Label-Lat RhLabel-Lat Rh
-
18704900126 Label-PodLabel-Pod
-
19704900068 Label-Front RhLabel-Front Rh
-
20705000026 Reflector-Fr. (Rh)Reflector-Fr. (Rh)
-
21705000083 Reflector-Fr. (Lh)Reflector-Fr. (Lh)
-
22704900128 Reflector-Rear (Red)Reflector-Rear (Red)
-
23704900032 Decal-LeafDecal-Leaf
-
24704900130 Logo-BombardierLogo-Bombardier
-
25704900136 Label-BombardierLabel-Bombardier
-
26704900038 Label-Warning (Cover Attachment)Label-Warning (Cover Attachment)
