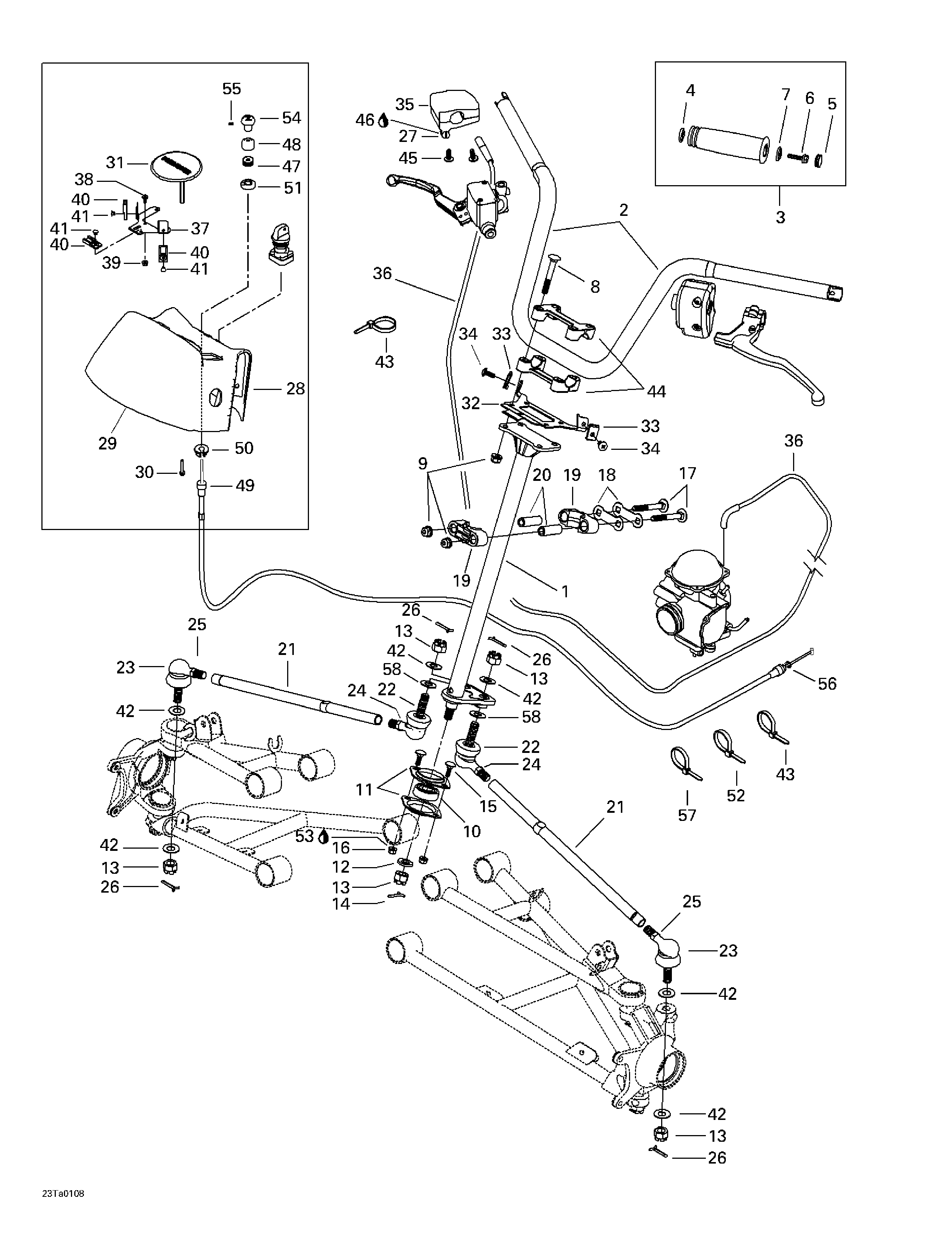

07- Steering System для BRP Traxter XL, 7448 - 2001
-
№АртикулНазвание
-
1709400089 Main TubeMain Tube
-
2709400005 Handle BarHandle Bar
-
3295500691 Handle Bar Grip Kit (Black). Includes 3 - 7.Handle Bar Grip Kit (Black). Includes 3 - 7.
-
5277000203 Grip CapGrip Cap
-
6250000002 Hex. Screw M6 x 30 (S.Grip)Hex. Screw M6 x 30 (S.Grip)
-
7234062600 Flat Washer 6 mmFlat Washer 6 mm
-
8207786544 Carriage Bolt M8 x 65Carriage Bolt M8 x 65
-
9233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
10709400012 Thrust BearingThrust Bearing
-
11709400013 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
14211400017 Cotter PinCotter Pin
-
15207762544 Carriage Bolt M6 x 25Carriage Bolt M6 x 25
-
16233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
17207787044 Carriage Bolt M8 x 70Carriage Bolt M8 x 70
-
18506150600 Stopper PlateStopper Plate
-
19709400034 Half HousingHalf Housing
-
20506150500 Housing BushingHousing Bushing
-
21709400064 Tie Rod Ass'y. Includes 21 - 25.Tie Rod Ass'y. Includes 21 - 25.
-
22709400065 R.H. Ball JointR.H. Ball Joint
-
23709400066 LH Ball JointLH Ball Joint
-
24732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
25732610020 LH Hex. Jam Nut M12LH Hex. Jam Nut M12
-
26211400013 Cotter PinCotter Pin
-
27250000017 Set Screw M5 x 20 (S.Grip)Set Screw M5 x 20 (S.Grip)
-
28703500019 Steering Cover. Includes 28 - 29.Steering Cover. Includes 28 - 29.
-
29704900024 Steering Cover LabelSteering Cover Label
-
30241141360 ScrewScrew
-
31705000232 Steering CapSteering Cap
-
32709400077 Steering Cover SupportSteering Cover Support
-
33211100050 Speednut M6Speednut M6
-
34211000123 Screw M6 x 20Screw M6 x 20
-
35709400016 Throttle HandleThrottle Handle
-
36707000097 Throttle CableThrottle Cable
-
37710000159 Housing SupportHousing Support
-
38208651241 Screw M5 x 12Screw M5 x 12
-
39232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
40270000141 ClipClip
-
41390402400 RivetRivet
-
42503175400 Hardened WasherHardened Washer
-
43414115200 Tie RapTie Rap
-
44709400028 Steering ClampSteering Clamp
-
45205353046 Socket Screw M5 x 30Socket Screw M5 x 30
-
46293800061 Loctite BLK/MAX, 20 gLoctite BLK/MAX, 20 g
-
47707000087 Cap HolderCap Holder
-
48707000088 Rubber CapRubber Cap
-
49707000096 Choke CableChoke Cable
-
50211100030 Hex. NutHex. Nut
-
51707000067 Washer ''D''Washer ''D''
-
52293750009 Tie Rap 160 mmTie Rap 160 mm
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
54707000089 ButtonButton
-
55205030487 Socket Screw M3x0.5Socket Screw M3x0.5
-
56293300075 O-RingO-Ring
-
57293750008 Tie Rap 350 mmTie Rap 350 mm
-
58503189276 WasherWasher
