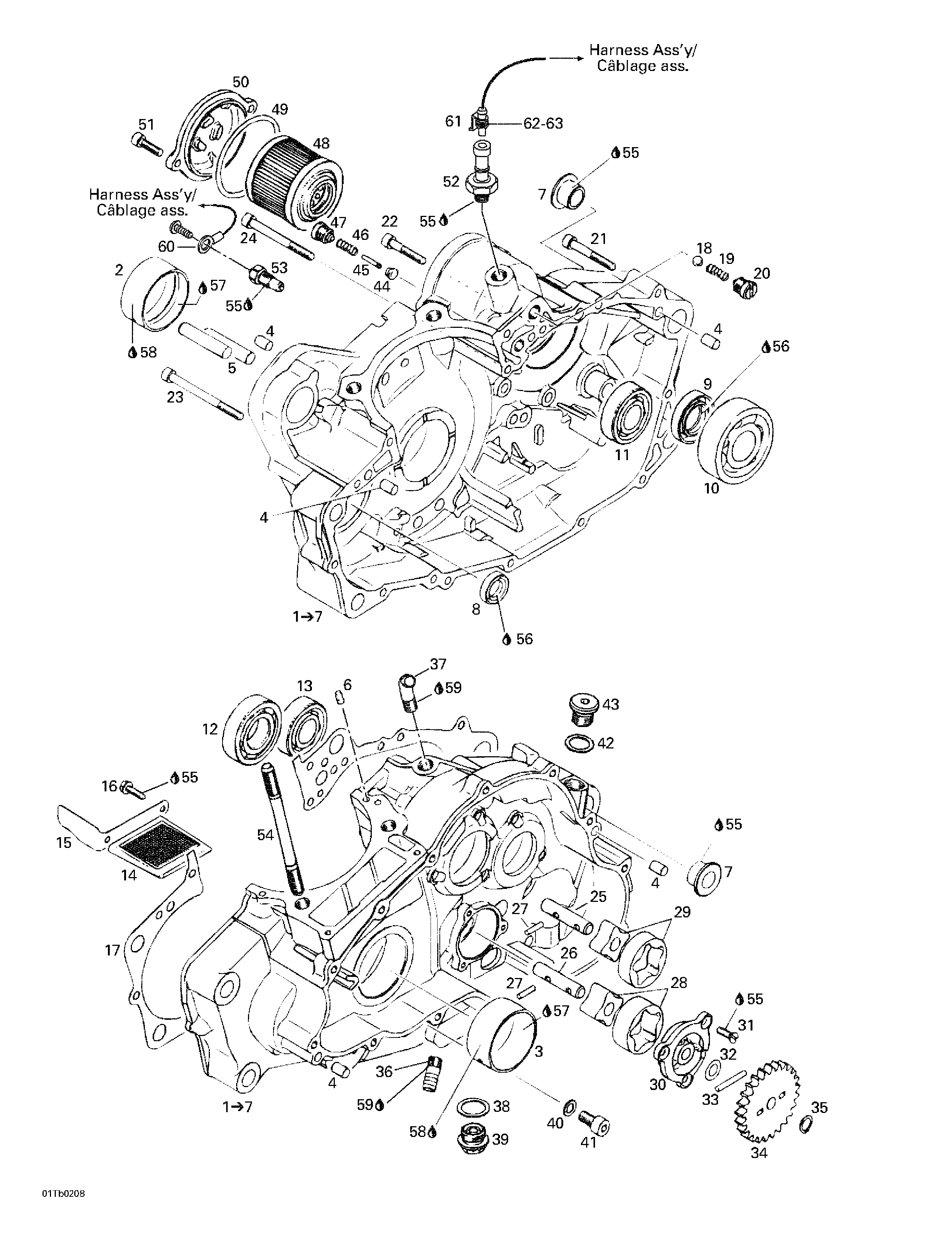

01- Crankcase для BRP DS 650 Baja - 2002
-
№АртикулНазвание
-
1711296346 Crankcase Ass'y. Includes 1 - 7.Crankcase Ass'y. Includes 1 - 7.
-
2711233675 BushingBushing
-
3711233680 BushingBushing
-
4290632010 PinPin
-
5711229301 Pin M6 x 50Pin M6 x 50
-
6420929650 Drive Pin 5 x 10Drive Pin 5 x 10
-
7711247320 SleeveSleeve
-
8711430550 Oil SealOil Seal
-
9420230395 Oil SealOil Seal
-
10711932826 Ball Bearing 6305Ball Bearing 6305
-
11711232501 Ball Bearing 6303Ball Bearing 6303
-
12711232764 Ball Bearing 6205Ball Bearing 6205
-
13711932815 Ball Bearing 6303EBall Bearing 6303E
-
14711256321 Oil SieveOil Sieve
-
15711256430 Oil Sieve GuideOil Sieve Guide
-
16420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
17711250910 GasketGasket
-
18420932830 Ball 8 mmBall 8 mm
-
19711239280 Spring (Compression)Spring (Compression)
-
20711256170 Valve Pin ScrewValve Pin Screw
-
21711241822 Socket Head Screw M6 x 45Socket Head Screw M6 x 45
-
22711241810 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
23711240531 Socket Head Screw M6 x 75Socket Head Screw M6 x 75
-
24711241262 Socket Head Screw M6 x 65Socket Head Screw M6 x 65
-
25711220762 Oil Pump ShaftOil Pump Shaft
-
26711220760 Oil Pump ShaftOil Pump Shaft
-
27711232730 Needle PinNeedle Pin
-
28711256680 Oil Pump Rotor (Suction)Oil Pump Rotor (Suction)
-
29711256670 Oil Pump Rotor (Pressure)Oil Pump Rotor (Pressure)
-
30711210642 Oil Pump CoverOil Pump Cover
-
31711640821 Torx Screw M5 x 16Torx Screw M5 x 16
-
32711827590 Thrust WasherThrust Washer
-
33711232430 Needle PinNeedle Pin
-
34711234560 Oil Pump Gear (25 Teeth)Oil Pump Gear (25 Teeth)
-
35420245330 Snap RingSnap Ring
-
36711256330 Hose NippleHose Nipple
-
37711924245 Angle TubeAngle Tube
-
38711552280 O-RingO-Ring
-
39711840277 Drain PlugDrain Plug
-
40420950141 Sealing RingSealing Ring
-
41205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
42711430622 O-RingO-Ring
-
43711240232 Plug Screw M16 x 1,5Plug Screw M16 x 1,5
-
44711260570 Retaining ValveRetaining Valve
-
45711256150 Valve PinValve Pin
-
46711239810 Spring (Compression)Spring (Compression)
-
47711256170 Valve Pin ScrewValve Pin Screw
-
48711256188 Oil FilterOil Filter
-
49711650500 O-RingO-Ring
-
50711610230 Oil Filter CoverOil Filter Cover
-
51205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
52711256770 Oil Pressure SwitchOil Pressure Switch
-
53711241852 Neutral SwitchNeutral Switch
-
54711640470 Stud M10 x 223Stud M10 x 223
-
55293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
56293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
58711297616 Grease, 60 gGrease, 60 g
-
59293800073 Loctite 277, 10 mlLoctite 277, 10 ml
-
60710000112 Ring TerminalRing Terminal
-
61278001012 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
62278001014 Female TerminalFemale Terminal
-
63278001013 SealSeal
