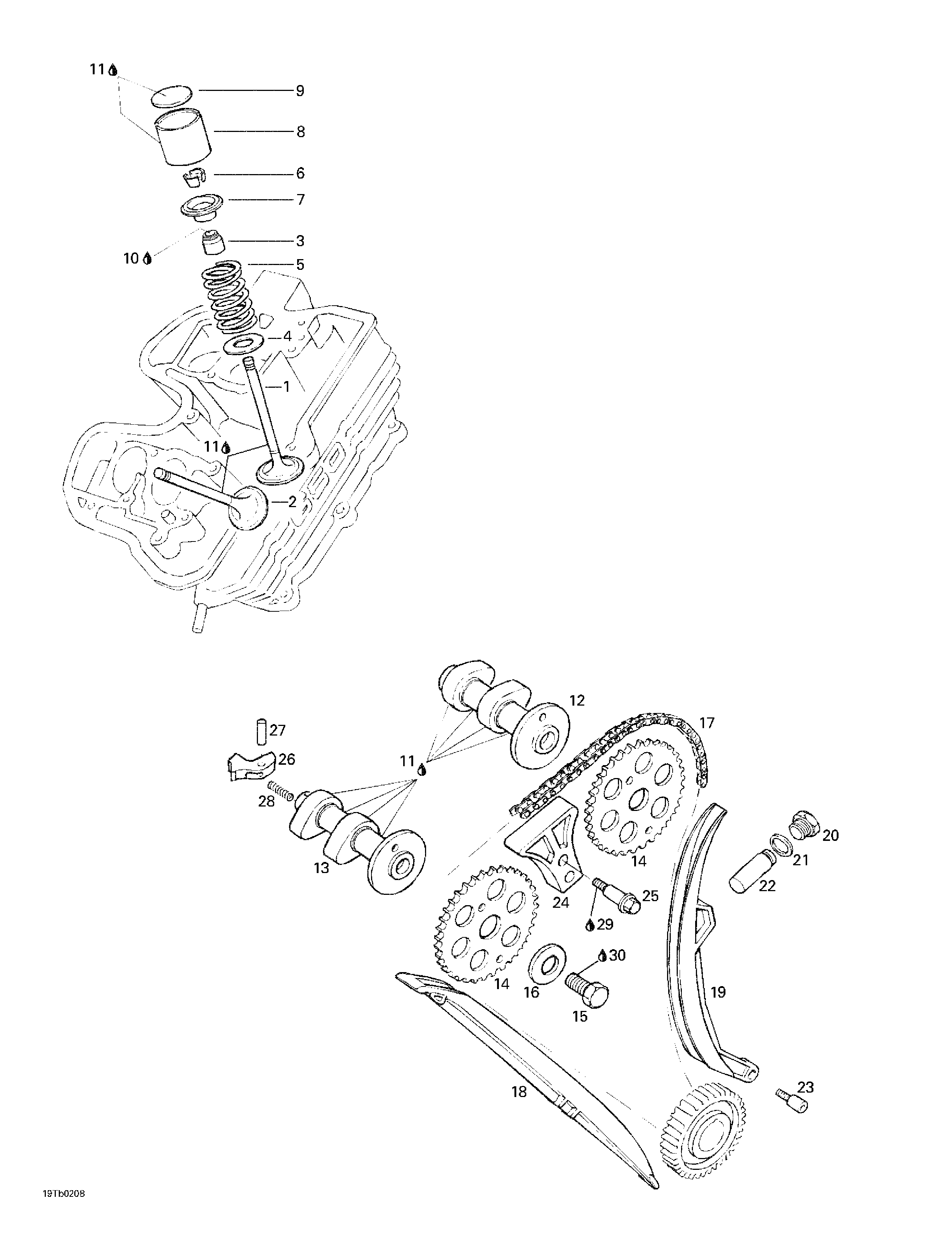

01- Valve для BRP DS 650 Baja - 2002
-
№АртикулНазвание
-
1711253770 Inlet ValveInlet Valve
-
2711253780 Exhaust ValveExhaust Valve
-
3711230510 SealSeal
-
4711227982 Thrust Washer 11,2/28,0/1,0Thrust Washer 11,2/28,0/1,0
-
5711239290 Valve SpringValve Spring
-
6711253645 Cotter ValveCotter Valve
-
7711253760 Valve Spring RetainerValve Spring Retainer
-
8711253545 Valve TappetValve Tappet
-
9711253741 Shim 2,1Shim 2,1
-
711253752 Shim 2,15Shim 2,15
-
711253742 Shim 2,2Shim 2,2
-
711253753 Shim 2,25Shim 2,25
-
711253743 Shim 2,3Shim 2,3
-
711253754 Shim 2,35Shim 2,35
-
711253744 Shim 2,4Shim 2,4
-
711253755 Shim 2,45Shim 2,45
-
711253745 Shim 2,5Shim 2,5
-
711253756 Shim 2,55Shim 2,55
-
711253746 Shim 2,6Shim 2,6
-
711253747 Shim 2,7Shim 2,7
-
711253748 Shim 2,8Shim 2,8
-
711253749 Shim 2,9Shim 2,9
-
10293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
12711220190 Camshaft-InletCamshaft-Inlet
-
13711220200 Camshaft-ExhaustCamshaft-Exhaust
-
14711634280 Timing Gear (34 Teeth)Timing Gear (34 Teeth)
-
15207102044 Hex. Screw M10 x 20Hex. Screw M10 x 20
-
16711627040 WasherWasher
-
17711297890 Timing ChainTiming Chain
-
18711236230 Chain GuideChain Guide
-
19711236221 Chain Tension GuideChain Tension Guide
-
20711552277 Hex. Screw M18 x 10Hex. Screw M18 x 10
-
21711552280 O-RingO-Ring
-
22711236250 Rod TensionerRod Tensioner
-
23711240940 Screw M6Screw M6
-
24711236240 Chain Guide BowChain Guide Bow
-
25711240960 Distance Screw M6 x 16Distance Screw M6 x 16
-
26711231044 Centrifugal WeightCentrifugal Weight
-
27711232910 PegPeg
-
28711239920 SpringSpring
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30413711400 Loctite 648, 10 mlLoctite 648, 10 ml
