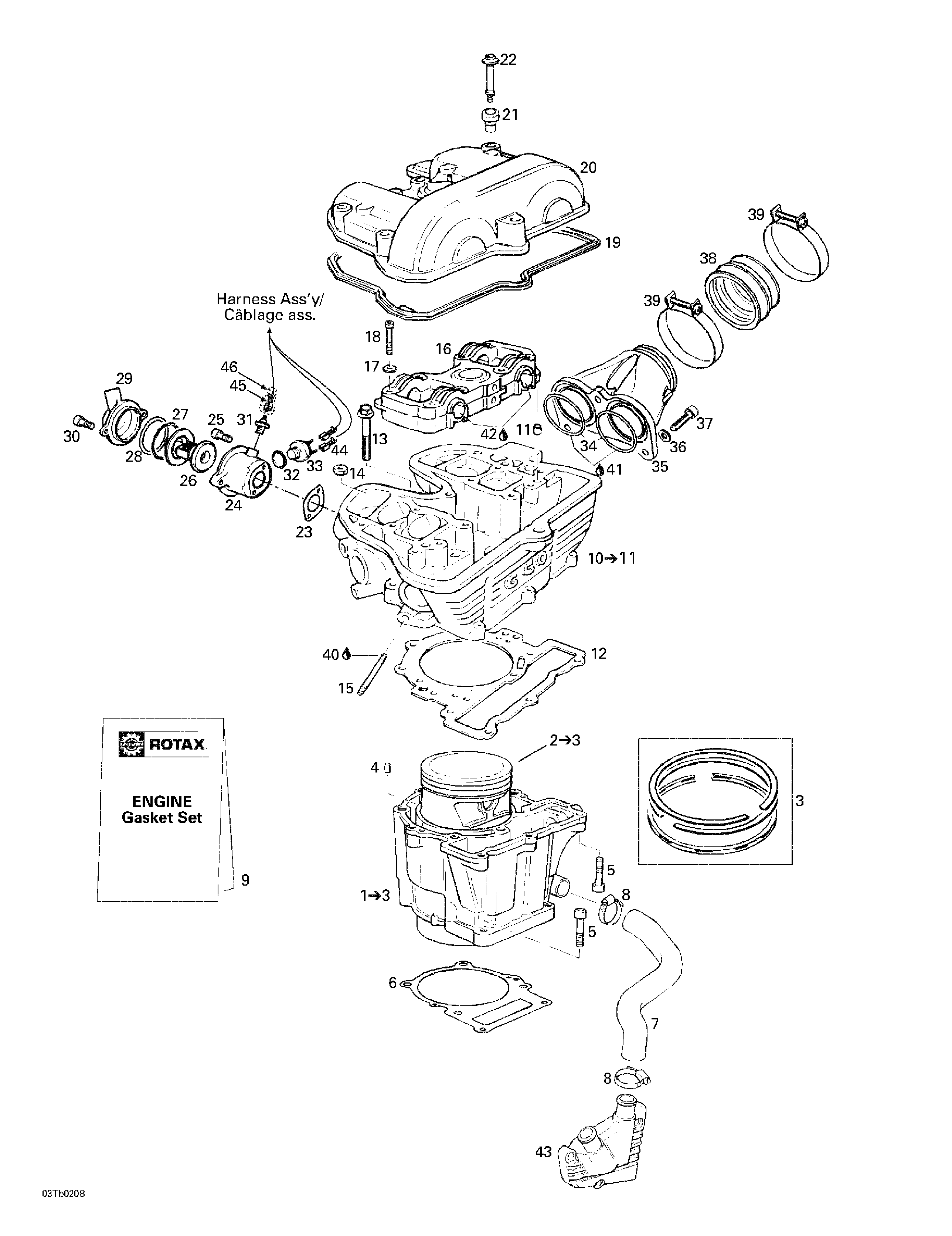

01- Cylinder, Cylinder Head для BRP DS 650 Baja - 2002
-
№АртикулНазвание
-
1711223906 Cylinder with Piston Ass'y. Includes 1 - 3.Cylinder with Piston Ass'y. Includes 1 - 3.
-
2711295185 Piston Ass'y. Includes 2 - 3.Piston Ass'y. Includes 2 - 3.
-
3711295184 Piston Ring SetPiston Ring Set
-
4420929650 Drive Pin Ass. 5 x 10Drive Pin Ass. 5 x 10
-
5205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
6711650010 GasketGasket
-
7711222450 Water Cooling HoseWater Cooling Hose
-
8711651170 ClampClamp
-
9711294768 Gasket SetGasket Set
-
10711223916 Cylinder Head. Includes 10 - 11.Cylinder Head. Includes 10 - 11.
-
11290632010 Pin 8 x 12Pin 8 x 12
-
12711650020 GasketGasket
-
13207684544 Hex. Flanged Screw M8 x 45Hex. Flanged Screw M8 x 45
-
14233101414 Flanged Nut M10Flanged Nut M10
-
15711240362 Stud M8 x 58Stud M8 x 58
-
16711211326 Camshaft BridgeCamshaft Bridge
-
17420927945 Flat WasherFlat Washer
-
18711241820 Socket Head Screw M6 x 45Socket Head Screw M6 x 45
-
19711250900 GasketGasket
-
20711211301 Valve CoverValve Cover
-
21711260050 Rubber BushingRubber Bushing
-
22711240906 Distance ScrewDistance Screw
-
23711650060 GasketGasket
-
24711222430 Thermostat HousingThermostat Housing
-
25711840518 Socket Head Screw M5 x 18Socket Head Screw M5 x 18
-
26711222463 ThermostatThermostat
-
27711245770 Corrugated WasherCorrugated Washer
-
28711650030 O-RingO-Ring
-
29711222440 Thermostat CoverThermostat Cover
-
30711840512 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
31711265392 Thermostatic SwitchThermostatic Switch
-
32711230380 O-RingO-Ring
-
33711265390 Thermostatic Switch (Fan)Thermostatic Switch (Fan)
-
34293300059 O-RingO-Ring
-
35711267230 Intake AdaptorIntake Adaptor
-
36234061410 Flat Washer 6 mmFlat Washer 6 mm
-
37205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
38711267240 Carburetor Flange 52 mmCarburetor Flange 52 mm
-
39293650090 Norma Gear ClampNorma Gear Clamp
-
40413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
41293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
43711211270 Waterpump CoverWaterpump Cover
-
44710000038 Female TerminalFemale Terminal
-
45710000114 Female TerminalFemale Terminal
-
46278001484 Rubber CapRubber Cap
