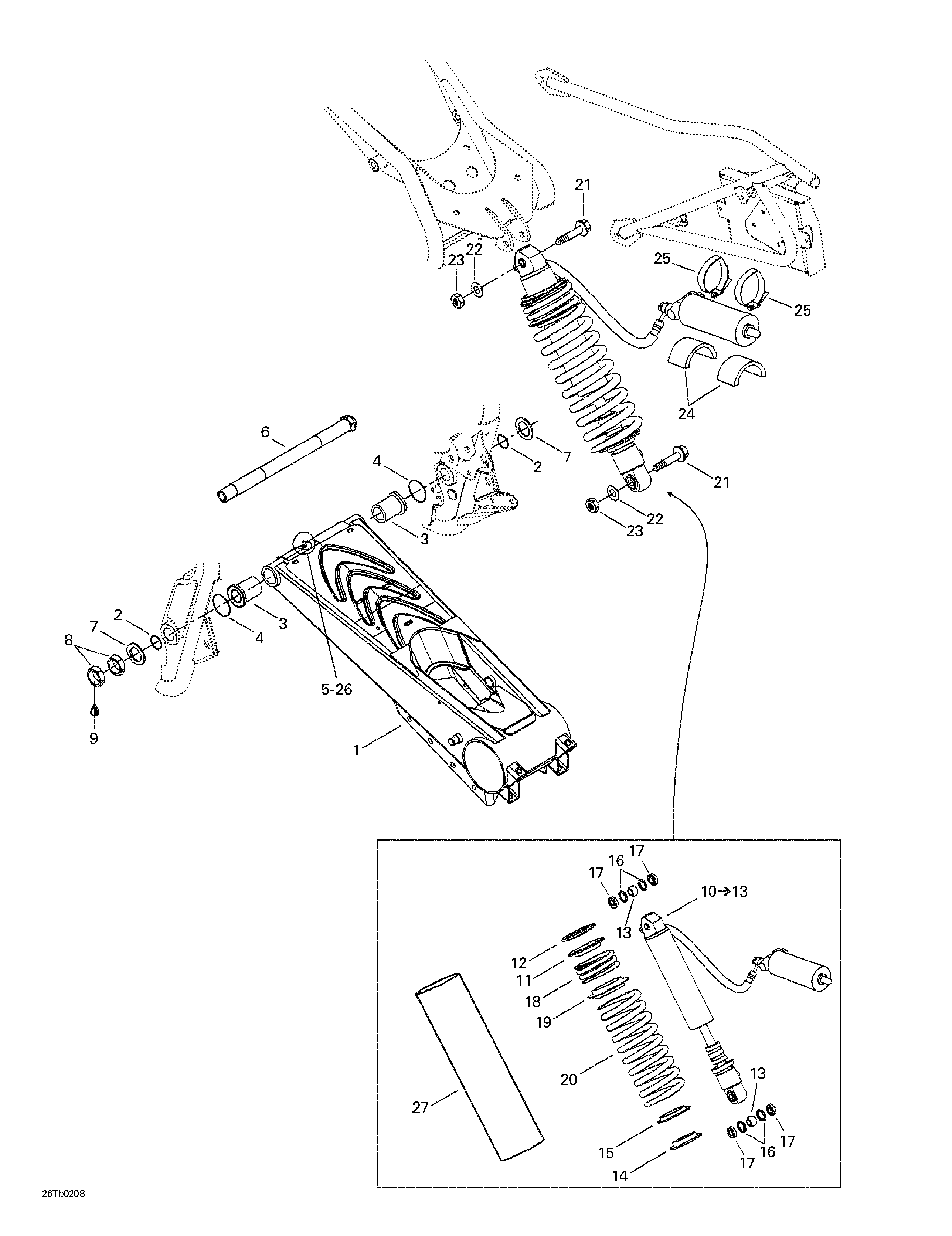

08- Rear Suspension для BRP DS 650 Baja - 2002
-
№АртикулНазвание
-
1706000134 Swing ArmSwing Arm
-
2293300074 O-RingO-Ring
-
3706000089 CushionCushion
-
4293300068 O-RingO-Ring
-
5408200700 Grease FittingGrease Fitting
-
6706000102 Pivot BoltPivot Bolt
-
7293050003 WasherWasher
-
8250100009 Jam Nut M20Jam Nut M20
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10706000148 Rear Shock. Includes 10 - 13.Rear Shock. Includes 10 - 13.
-
11706000062 Spring StopperSpring Stopper
-
12706000082 Ring StopperRing Stopper
-
13706000105 Ball JointBall Joint
-
14706000061 Spring StopperSpring Stopper
-
15706000060 Spring GuideSpring Guide
-
16293250111 SealSeal
-
17706000103 CushionCushion
-
18706000059 Rear Spring (Short)Rear Spring (Short)
-
19706000079 Spring SpacerSpring Spacer
-
20706000077 Rear Spring (Long)Rear Spring (Long)
-
21207626046 Hex. Flanged Screw M12 x 60Hex. Flanged Screw M12 x 60
-
22732900048 WasherWasher
-
23232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
24293830083 ProtectorProtector
-
25514052859 Norma Gear ClampNorma Gear Clamp
-
26293550010 Synthetic GreaseSynthetic Grease
-
27706000166 ProtectorProtector
