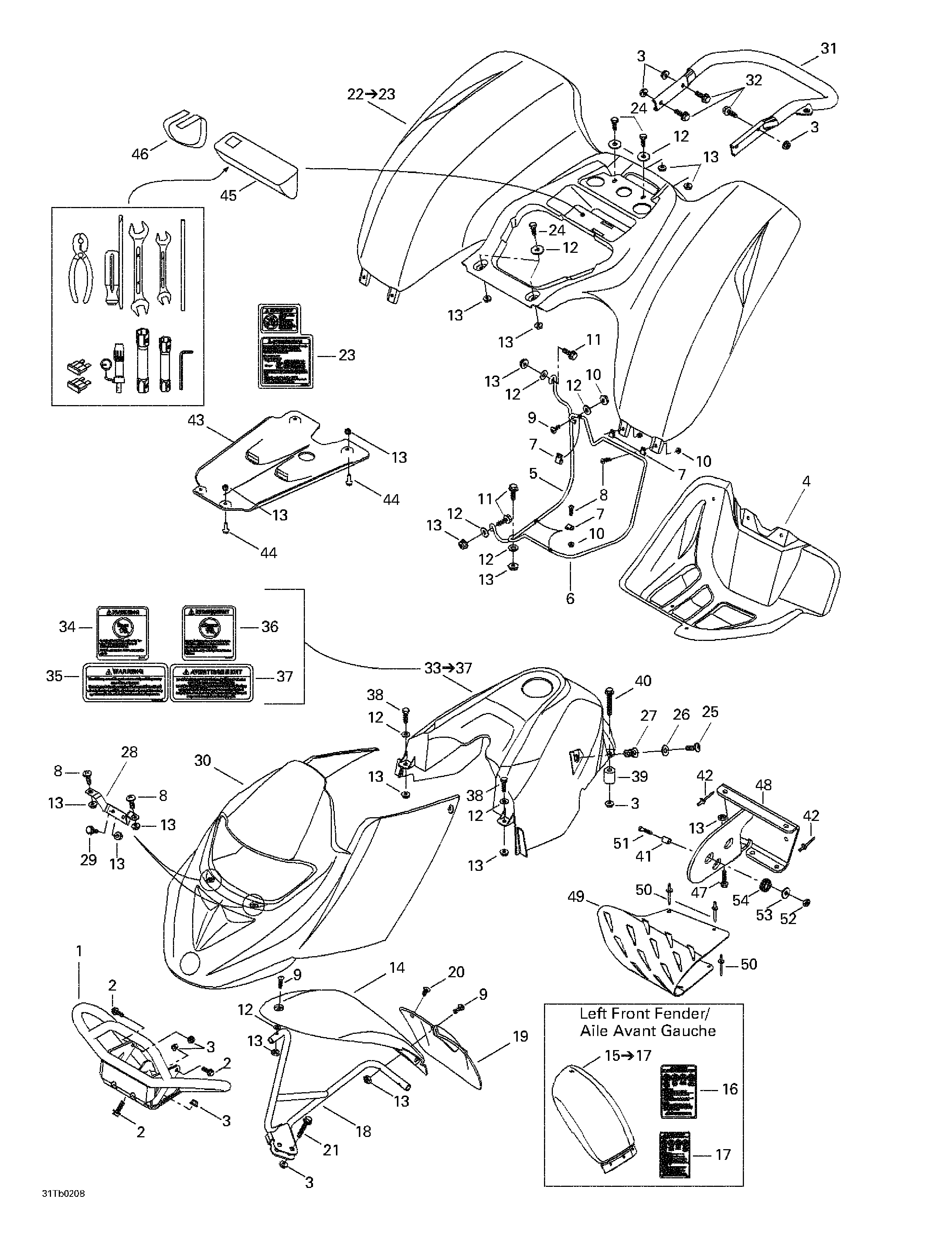

09- Frame And Body для BRP DS 650 Baja - 2002
-
№АртикулНазвание
-
1705000387 Front BumperFront Bumper
-
2207683044 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4705000301 R.H. Foot ProtectorR.H. Foot Protector
-
705000302 L.H. Foot ProtectorL.H. Foot Protector
-
5705000116 R.H. SupportR.H. Support
-
705000119 L.H. SupportL.H. Support
-
6705000117 R.H. SupportR.H. Support
-
705000120 L.H. SupportL.H. Support
-
7293650111 Gear ClampGear Clamp
-
8211000123 Screw M6 x 20Screw M6 x 20
-
9250000032 Screw M6 x 30Screw M6 x 30
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
12224061201 Flat WasherFlat Washer
-
13233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14705000485 R.H. Front Fender KitR.H. Front Fender Kit
-
15703500160 L.H. Front Fender Kit. Includes 15 - 17.L.H. Front Fender Kit. Includes 15 - 17.
-
16704900112 Warning Label (English). (Injuries/Death)Warning Label (English). (Injuries/Death)
-
17704900002 Warning Label (French). (Injuries/Death)Warning Label (French). (Injuries/Death)
-
18705000150 R.H. Fender SupportR.H. Fender Support
-
705000151 L.H. Fender SupportL.H. Fender Support
-
19705000095 R.H. MudguardR.H. Mudguard
-
705000096 L.H. MudguardL.H. Mudguard
-
20414939500 DartDart
-
21207683544 Hex. Flanged Screw M8 x 35Hex. Flanged Screw M8 x 35
-
22703500159 Rear Fender Kit. Includes 22 - 23.Rear Fender Kit. Includes 22 - 23.
-
23704900102 Warning Label Ass'y (French). (Passenger and tire Pressure)Warning Label Ass'y (French). (Passenger and tire Pressure)
-
704900040 Warning Label Ass'y (English). (Passenger and tire Pressure)Warning Label Ass'y (English). (Passenger and tire Pressure)
-
24207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
25250000043 Screw M6 x 20 (Scotch Grip)Screw M6 x 20 (Scotch Grip)
-
26506117300 BushingBushing
-
27732610057 Jack Nut M6Jack Nut M6
-
28705000146 Facia BracketFacia Bracket
-
29207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
30705000363 Front FaciaFront Facia
-
31705000143 Rear BumperRear Bumper
-
32207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
33703500128 Tank Cover Kit. Includes 33 - 37.Tank Cover Kit. Includes 33 - 37.
-
34704900113 Warning Label (English). (Under 16)Warning Label (English). (Under 16)
-
35704900089 Warning Label (English). (Performance/VTT)Warning Label (English). (Performance/VTT)
-
36704900012 Warning Label (French). (Under 16)Warning Label (French). (Under 16)
-
37704900105 Warning Label (French). (Performance/VTT)Warning Label (French). (Performance/VTT)
-
38207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
39705000114 SpacerSpacer
-
40207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
41517245900 BushingBushing
-
42390402000 Pop RivetPop Rivet
-
43705000488 Skid PlateSkid Plate
-
44207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
45529035782 Tool KitTool Kit
-
46708200008 StrapStrap
-
47205482060 Socket Head ScrewSocket Head Screw
-
48705000397 R.H. Head Lamp SupportR.H. Head Lamp Support
-
705000398 L.H. Head Lamp SupportL.H. Head Lamp Support
-
49705000399 R.H. Head Lamp ProtectorR.H. Head Lamp Protector
-
705000400 L.H. Head Lamp ProtectorL.H. Head Lamp Protector
-
50390402000 Pop RivetPop Rivet
-
51205452046 Socket Head ScrewSocket Head Screw
-
52233251414 Elastic Flanged NutElastic Flanged Nut
-
53391301600 WasherWasher
-
54414036300 GrommetGrommet
