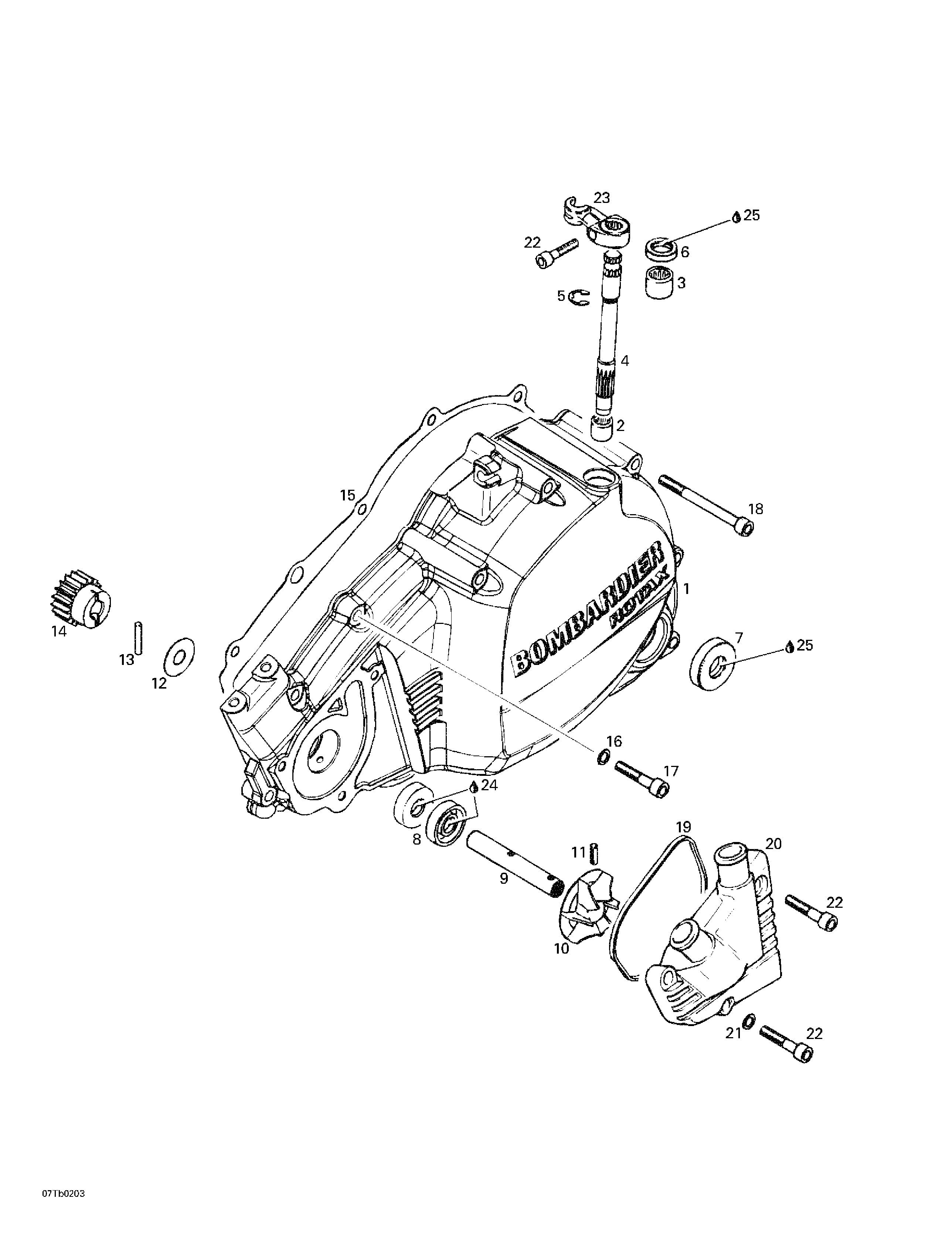

01- Clutch Housing для BRP DS 650 - 2002
-
№АртикулНазвание
-
1711610120 Clutch CoverClutch Cover
-
2711232275 Needle BushingNeedle Bushing
-
3290232480 Needle BushingNeedle Bushing
-
4711237022 Shaft-Release Clutch (11 Teeth)Shaft-Release Clutch (11 Teeth)
-
5420845390 Retaining RingRetaining Ring
-
6711250992 Oil SealOil Seal
-
7711250450 Oil SealOil Seal
-
8420230195 Oil SealOil Seal
-
9711237040 Water Pump ShaftWater Pump Shaft
-
10711222272 Water Pump ImpellerWater Pump Impeller
-
11711229280 Spring PinSpring Pin
-
12711827590 Thrust WasherThrust Washer
-
13420232420 Needle PinNeedle Pin
-
14711234620 Gear (18 Teeth)Gear (18 Teeth)
-
15711230581 GasketGasket
-
16711230415 Washer-SealWasher-Seal
-
17205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
18711240532 Socket Head Screw M6 x 75Socket Head Screw M6 x 75
-
19420850430 O-RingO-Ring
-
20711211270 Waterpump CoverWaterpump Cover
-
21711230415 Washer-SealWasher-Seal
-
22205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
23711248305 Lever-Release ClutchLever-Release Clutch
-
24413707000 Molykote 111Molykote 111
-
25293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
