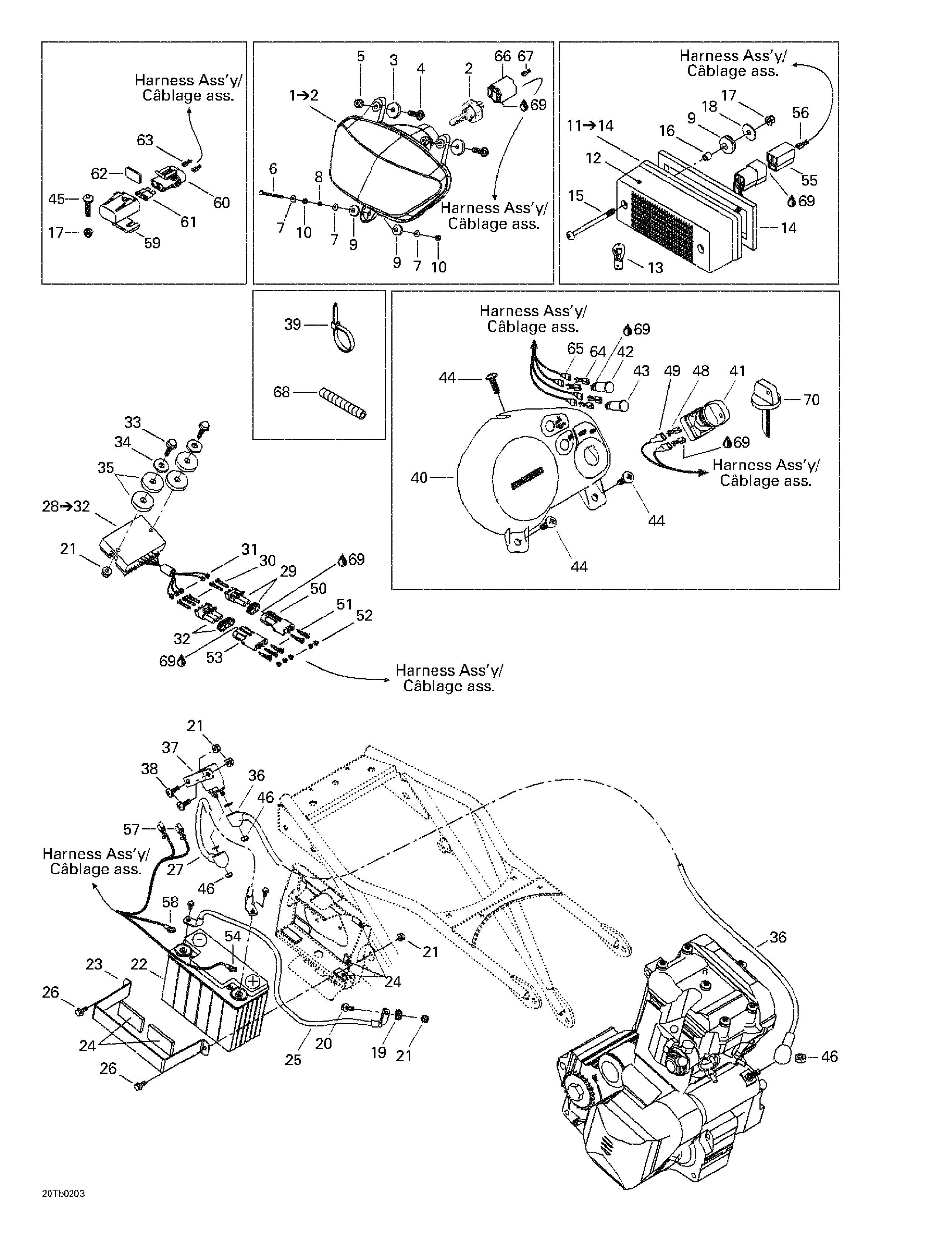

10- Electrical System для BRP DS 650 - 2002
-
№АртикулНазвание
-
1710000053 Headlamp. Includes 1 - 2.Headlamp. Includes 1 - 2.
-
2410504401 Bulb H4 (12 V, 60/55 W)Bulb H4 (12 V, 60/55 W)
-
3250200002 Rubber WasherRubber Washer
-
4207683544 Hex. Flanged Screw M8 x 35Hex. Flanged Screw M8 x 35
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6208656091 Phillips Screw M5 x 60Phillips Screw M5 x 60
-
7517124300 WasherWasher
-
8414806900 NutNut
-
9414036300 GrommetGrommet
-
10233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
11710000102 Tail Housing. Includes 11 - 14.Tail Housing. Includes 11 - 14.
-
12710000055 Red LensRed Lens
-
13410504100 Tail Lamp BulbTail Lamp Bulb
-
14710000129 GasketGasket
-
15208657041 Phillips Screw M5 x 70Phillips Screw M5 x 70
-
16517245900 BushingBushing
-
17233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
18224060201 Flat WasherFlat Washer
-
19234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
20207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
21233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22710000283 BatteryBattery
-
23710000087 StrapStrap
-
24293830083 Rubber ProtectorRubber Protector
-
25710000086 Ground CableGround Cable
-
26207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
27710000066 Positive CablePositive Cable
-
28278001554 Rectifier Ass'y. Includes 28 - 32.Rectifier Ass'y. Includes 28 - 32.
-
29278000220 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
30409007300 Female TerminalFemale Terminal
-
31278000218 Wire SealWire Seal
-
32278000273 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
33207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
34224060251 WasherWasher
-
35250200002 Rubber WasherRubber Washer
-
36710000069 Positive CablePositive Cable
-
37710000111 Starter RelayStarter Relay
-
38211000123 Screw M6 x 20Screw M6 x 20
-
39414115200 Tie RapTie Rap
-
39293750001 Tie Rap 94 mmTie Rap 94 mm
-
39293750008 Tie Rap 350 mmTie Rap 350 mm
-
40710000060 DashboardDashboard
-
41710000075 Ignition SwitchIgnition Switch
-
42710000062 Pilot LampPilot Lamp
-
43710000063 Pilot LampPilot Lamp
-
44732600009 Phillips Screw M6 x 18Phillips Screw M6 x 18
-
45732600030 ScrewScrew
-
46232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
47710000178 Harness Ass'y (Not Shown)Harness Ass'y (Not Shown)
-
48278001009 Female TerminalFemale Terminal
-
49278001007 Insulation SheathInsulation Sheath
-
50278000217 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
51409004300 Male TerminalMale Terminal
-
52710000048 Wire SealWire Seal
-
53278000281 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
54278001392 Open BarrelOpen Barrel
-
55409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
56561503100 Female TerminalFemale Terminal
-
57409010700 Female TerminalFemale Terminal
-
58278000992 Open BarrelOpen Barrel
-
59278001326 Fuse Holder CapFuse Holder Cap
-
60278001325 Fuse HolderFuse Holder
-
61278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
61278001443 Fuse (25 Amperes)Fuse (25 Amperes)
-
62278000805 CushionCushion
-
63710000113 Female TerminalFemale Terminal
-
64710000114 Female TerminalFemale Terminal
-
65710000115 Terminal EnvelopeTerminal Envelope
-
66409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
67515175321 Female TerminalFemale Terminal
-
68515175442 Tubing 6 mmTubing 6 mm
-
68415079900 Tubing 10 mmTubing 10 mm
-
68415080000 Tubing 16 mmTubing 16 mm
-
69293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
70710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
70710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
