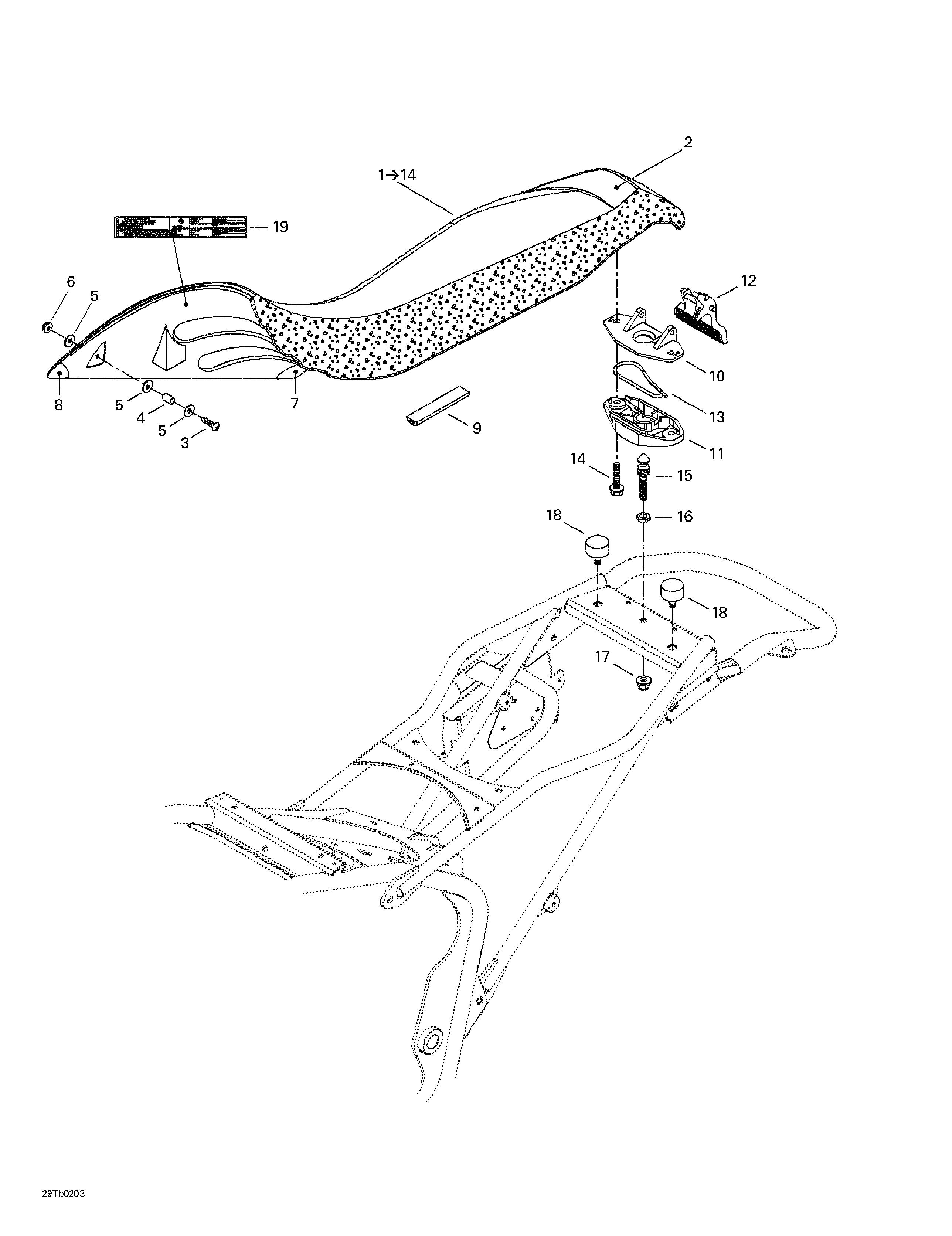

09- Seat для BRP DS 650 - 2002
-
№АртикулНазвание
-
1708000096 Seat Ass'y (Yellow). Includes 1 - 14.Seat Ass'y (Yellow). Includes 1 - 14.
-
708000126 Seat Ass'y (Black)Seat Ass'y (Black)
-
2708000098 Seat Cover (Yellow)Seat Cover (Yellow)
-
708000109 Seat Cover (Black)Seat Cover (Black)
-
3250000046 Screw M6 x 30Screw M6 x 30
-
4708000049 SpacerSpacer
-
5224061201 Flat WasherFlat Washer
-
6233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
7708000035 Seat CornerSeat Corner
-
8708000036 LH Seat CornerLH Seat Corner
-
708000037 R.H. Seat CornerR.H. Seat Corner
-
9293200020 Seal (Meter)Seal (Meter)
-
10269700076 Latch CoverLatch Cover
-
11269000015 Latch BaseLatch Base
-
12269700077 Latch LeverLatch Lever
-
13269700017 Latch SpringLatch Spring
-
14207562044 Hex. Flanged Screw M6 x 20 (Scotch Grip)Hex. Flanged Screw M6 x 20 (Scotch Grip)
-
15291000689 Latch StudLatch Stud
-
16232100600 Jam Nut M10Jam Nut M10
-
17233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
18708000006 Rubber StopperRubber Stopper
-
19704900253 Emission LabelEmission Label
