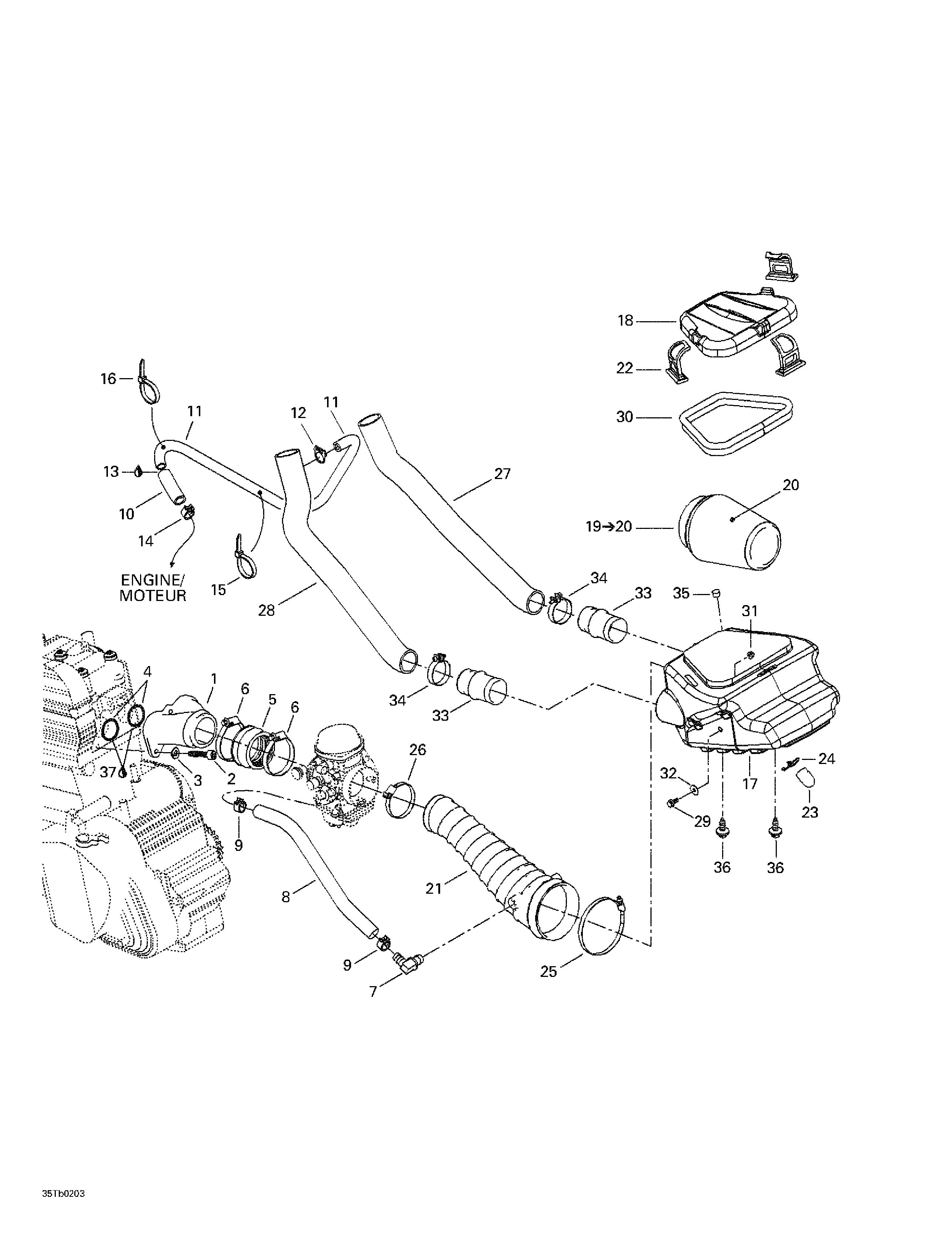

02- Air Intake System для BRP DS 650 - 2002
-
№АртикулНазвание
-
1711267230 Intake AdaptorIntake Adaptor
-
2205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4293300059 O-RingO-Ring
-
5711267240 Carburetor Flange 52 mmCarburetor Flange 52 mm
-
6293650090 Norma Gear ClampNorma Gear Clamp
-
7414523600 Elbow FittingElbow Fitting
-
8414644800 Oil LineOil Line
-
9414655700 Spring ClampSpring Clamp
-
10275500345 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
11276000001 Hose 12.5 mm (Meter)Hose 12.5 mm (Meter)
-
12293650119 Hose ClampHose Clamp
-
13413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
14293650047 Oetiker ClampOetiker Clamp
-
15414115200 Tie RapTie Rap
-
16293750008 Tie Rap 350 mmTie Rap 350 mm
-
17707800021 Air SilencerAir Silencer
-
18707800022 Air Silencer CoverAir Silencer Cover
-
19707800023 Air Filter. Includes 19 - 20.Air Filter. Includes 19 - 20.
-
20707800074 FoamFoam
-
21707800076 Intake AdaptorIntake Adaptor
-
22708200003 Latch-CoverLatch-Cover
-
23707800080 Drain TubeDrain Tube
-
24707800081 Retainer ClipRetainer Clip
-
25514052983 Norma Gear ClampNorma Gear Clamp
-
26514052859 Norma Gear ClampNorma Gear Clamp
-
27707800093 Vent HoseVent Hose
-
28707800094 Vent HoseVent Hose
-
29207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
30293250047 Neoprene SealNeoprene Seal
-
31233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
32224060201 Flat WasherFlat Washer
-
33707800038 DeflectorDeflector
-
34293650106 Gemi ClampGemi Clamp
-
35572051500 CapCap
-
36293730018 Dart-MountDart-Mount
-
37293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
