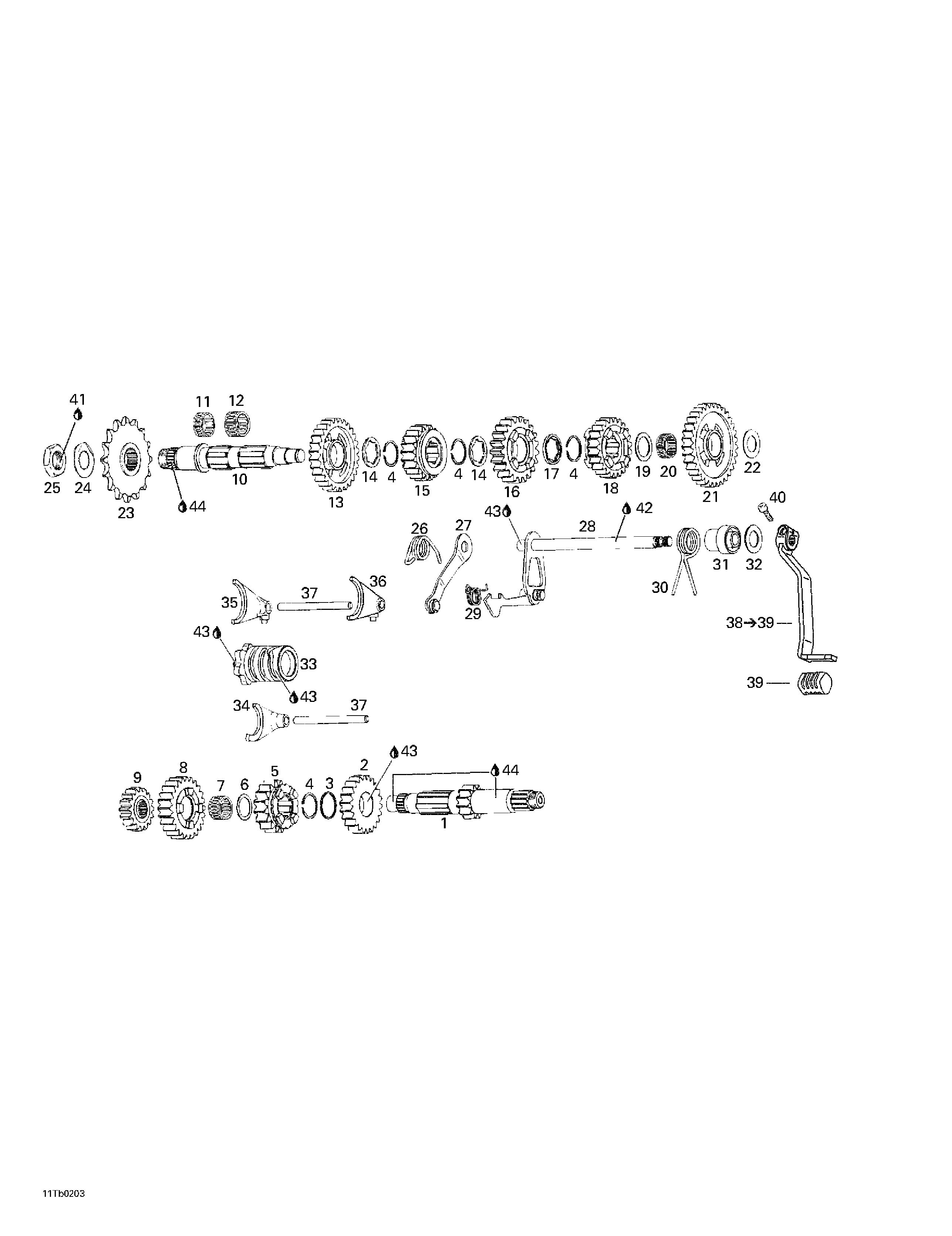

05- Transmission для BRP DS 650 - 2002
-
№АртикулНазвание
-
1711220230 Clutch Shaft (12 Teeth)Clutch Shaft (12 Teeth)
-
2711234715 Intermediate Gear (21 Teeth)Intermediate Gear (21 Teeth)
-
3711227825 Thrust WasherThrust Washer
-
4420445300 CirclipCirclip
-
5711634333 Pinion Gear (18 Teeth)Pinion Gear (18 Teeth)
-
6711227445 Thrust WasherThrust Washer
-
7711232805 Needle BearingNeedle Bearing
-
8711234725 Intermediate Gear (23 Teeth)Intermediate Gear (23 Teeth)
-
9711234675 Pinion Gear (15 Teeth)Pinion Gear (15 Teeth)
-
10711220730 Main ShaftMain Shaft
-
11711232520 Needle BearingNeedle Bearing
-
12711232530 Needle BearingNeedle Bearing
-
13711634305 Intermediate Gear (29 Teeth)Intermediate Gear (29 Teeth)
-
14711627051 Thrust RingThrust Ring
-
15711634345 Pinion Gear (22 Teeth)Pinion Gear (22 Teeth)
-
16711234705 Intermediate Gear (26 Teeth)Intermediate Gear (26 Teeth)
-
17711627061 Angular RingAngular Ring
-
18711634355 Pinion Gear (24 Teeth)Pinion Gear (24 Teeth)
-
19711244100 Thrust WasherThrust Washer
-
20711232742 Needle BearingNeedle Bearing
-
21711634290 Gear (33 Teeth)Gear (33 Teeth)
-
22711227430 Thrust WasherThrust Washer
-
23711236470 Chain WheelChain Wheel
-
24711245391 Tab WasherTab Washer
-
25711242651 Nut M20Nut M20
-
26711239095 Index SpringIndex Spring
-
27711248346 Index LeverIndex Lever
-
28711237929 Shift-ShaftShift-Shaft
-
29711239075 SpringSpring
-
30711239082 SpringSpring
-
31711247900 SpacerSpacer
-
32711227430 Thrust WasherThrust Washer
-
33711258275 Drum-ShiftDrum-Shift
-
34711258037 Fork-ShiftFork-Shift
-
35711258027 Fork-ShiftFork-Shift
-
36711258017 Fork-ShiftFork-Shift
-
37711258782 Fork SpindleFork Spindle
-
38711248317 Gearshift Lever. Includes 38 - 39.Gearshift Lever. Includes 38 - 39.
-
39711260205 Rubber SleeveRubber Sleeve
-
40205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
41293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
42293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
44711297616 Grease, 60 gGrease, 60 g
