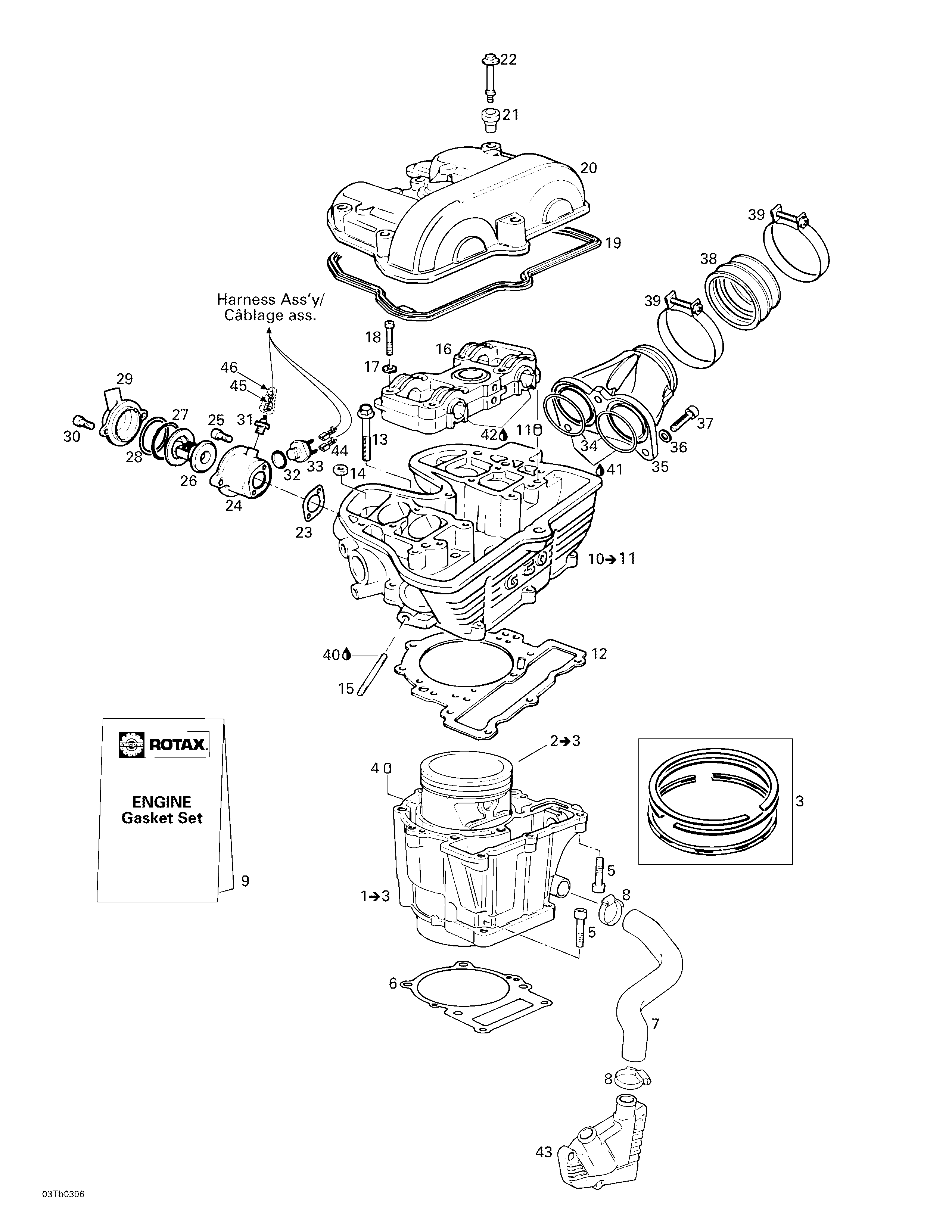

01- Cylinder, Cylinder Head для BRP DS 650 - 2003
-
№АртикулНазвание
-
1420223906 Cylinder with Piston Ass'y. Includes 1 - 3.Cylinder with Piston Ass'y. Includes 1 - 3.
-
2420295185 Piston Ass'y. Includes 2 - 3.Piston Ass'y. Includes 2 - 3.
-
3420295184 Piston Ring SetPiston Ring Set
-
4420929650 Drive Pin Ass. 5 x 10Drive Pin Ass. 5 x 10
-
5205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
6420650010 GasketGasket
-
7420222450 Water Cooling HoseWater Cooling Hose
-
8420951870 ClampClamp
-
9420294768 Gasket SetGasket Set
-
10420223916 Cylinder Head. Includes 10 - 11.Cylinder Head. Includes 10 - 11.
-
11420632010 Pin 8 x 12Pin 8 x 12
-
12420650020 GasketGasket
-
13207684544 Hex. Flanged Screw M8 x 45Hex. Flanged Screw M8 x 45
-
14233101414 Flanged Nut M10Flanged Nut M10
-
15420240362 Stud M8 x 58Stud M8 x 58
-
16420211326 Camshaft BridgeCamshaft Bridge
-
17420927945 Flat WasherFlat Washer
-
18420241820 Socket Head Screw M6 x 45Socket Head Screw M6 x 45
-
19420250900 GasketGasket
-
20420211301 Valve CoverValve Cover
-
21420260050 Rubber BushingRubber Bushing
-
22420240906 Distance ScrewDistance Screw
-
23420650060 GasketGasket
-
24420222430 Thermostat HousingThermostat Housing
-
25420840518 Socket Head Screw M5 x 18Socket Head Screw M5 x 18
-
26420222463 ThermostatThermostat
-
27420245770 Corrugated WasherCorrugated Washer
-
28420650030 O-RingO-Ring
-
29420222440 Thermostat CoverThermostat Cover
-
30420840512 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
31420265392 Thermostatic SwitchThermostatic Switch
-
32420230380 O-RingO-Ring
-
33420265390 Thermostatic Switch (Fan)Thermostatic Switch (Fan)
-
34293300059 O-RingO-Ring
-
35420267230 Intake AdaptorIntake Adaptor
-
36234061410 Flat Washer 6 mmFlat Washer 6 mm
-
37205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
38420267240 Carburetor Flange 52 mmCarburetor Flange 52 mm
-
39293650090 Norma Gear ClampNorma Gear Clamp
-
40413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
41293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
43420211270 Waterpump CoverWaterpump Cover
-
44710000038 Female TerminalFemale Terminal
-
45710000114 Female TerminalFemale Terminal
-
46278001484 Rubber CapRubber Cap
