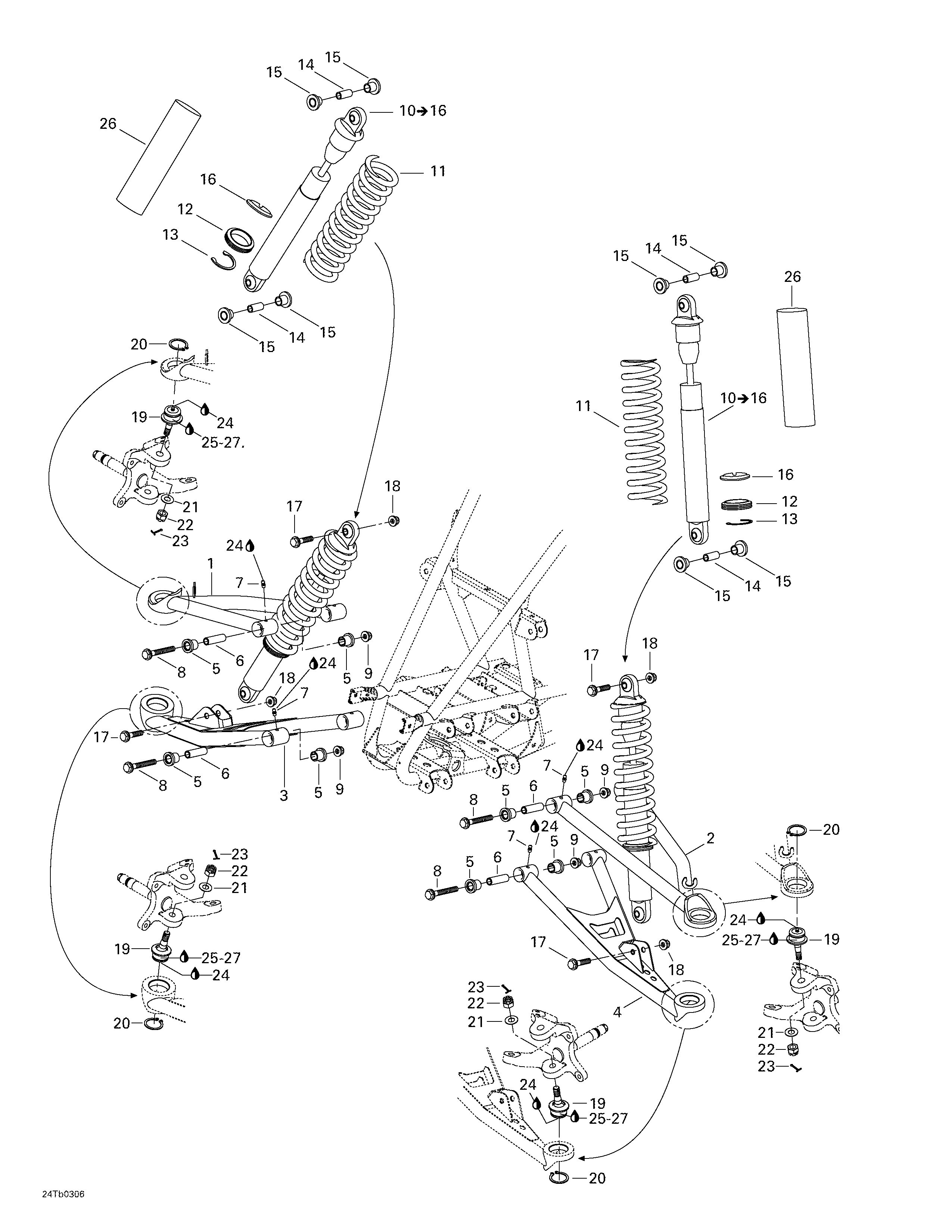

07- Front Suspension для BRP DS 650 - 2003
-
№АртикулНазвание
-
1706200246 R.H. Upper ArmR.H. Upper Arm
-
2706200252 L.H. Upper ArmL.H. Upper Arm
-
3706200257 R.H. Lower ArmR.H. Lower Arm
-
4706200264 L.H. Lower ArmL.H. Lower Arm
-
5706200063 CushionCushion
-
6706200061 Internal BushingInternal Bushing
-
7408200700 Grease FittingGrease Fitting
-
8207607546 Hex. Flanged Screw M10 x 75Hex. Flanged Screw M10 x 75
-
9233201416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
10706200297 Front ShockFront Shock
-
11706200082 Front Spring. DS 650 Baja.Front Spring. DS 650 Baja.
-
11706200296 Front Spring. DS 650.Front Spring. DS 650.
-
12706200212 Spring SeatSpring Seat
-
13706200138 Ring HolderRing Holder
-
14706200097 BushingBushing
-
15706200099 CushionCushion
-
16706200211 Retainer SpringRetainer Spring
-
17207605044 Hex. Flanged Screw M10 x 50Hex. Flanged Screw M10 x 50
-
18233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
19703500082 Ball JointBall Joint
-
20293370017 CirclipCirclip
-
21706200281 Hardened WasherHardened Washer
-
22232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
23211400017 Cutter PinCutter Pin
-
24293550010 Asalco GreaseAsalco Grease
-
25413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
26706200276 Protector. DS 650 Baja.Protector. DS 650 Baja.
-
27293800041 Loctite PrimerLoctite Primer
