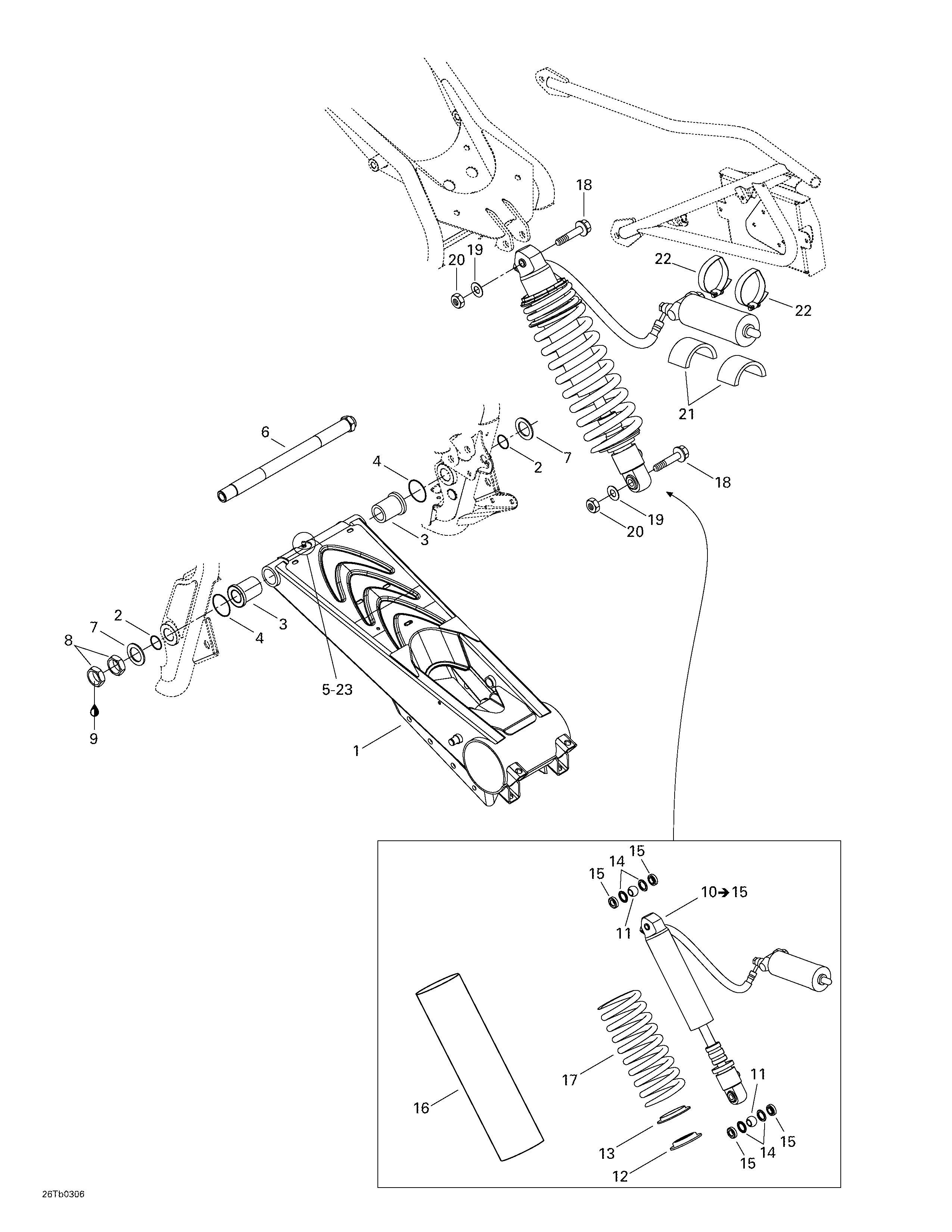

08- Rear Suspension для BRP DS 650 - 2003
-
№АртикулНазвание
-
1706000134 Swing ArmSwing Arm
-
2293300074 O-RingO-Ring
-
3706000089 CushionCushion
-
4293300068 O-RingO-Ring
-
5408200700 Grease FittingGrease Fitting
-
6706000102 Pivot BoltPivot Bolt
-
7293050003 WasherWasher
-
8250100009 Jam Nut M20Jam Nut M20
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10706000148 Rear Shock. Includes 10 - 15.Rear Shock. Includes 10 - 15.
-
11706000105 Ball JointBall Joint
-
12706000061 Spring StopperSpring Stopper
-
13706000060 Spring GuideSpring Guide
-
14293250111 SealSeal
-
15706000103 CushionCushion
-
16706000166 Protector. DS 650 Baja.Protector. DS 650 Baja.
-
17706000199 Red Spring. DS 650.Red Spring. DS 650.
-
706000242 Yellow Spring. DS 650 Baja.Yellow Spring. DS 650 Baja.
-
18250000095 Shock ScrewShock Screw
-
19732900048 WasherWasher
-
20232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
21293830083 ProtectorProtector
-
22514052859 Norma Gear ClampNorma Gear Clamp
-
23293550010 Synthetic GreaseSynthetic Grease
