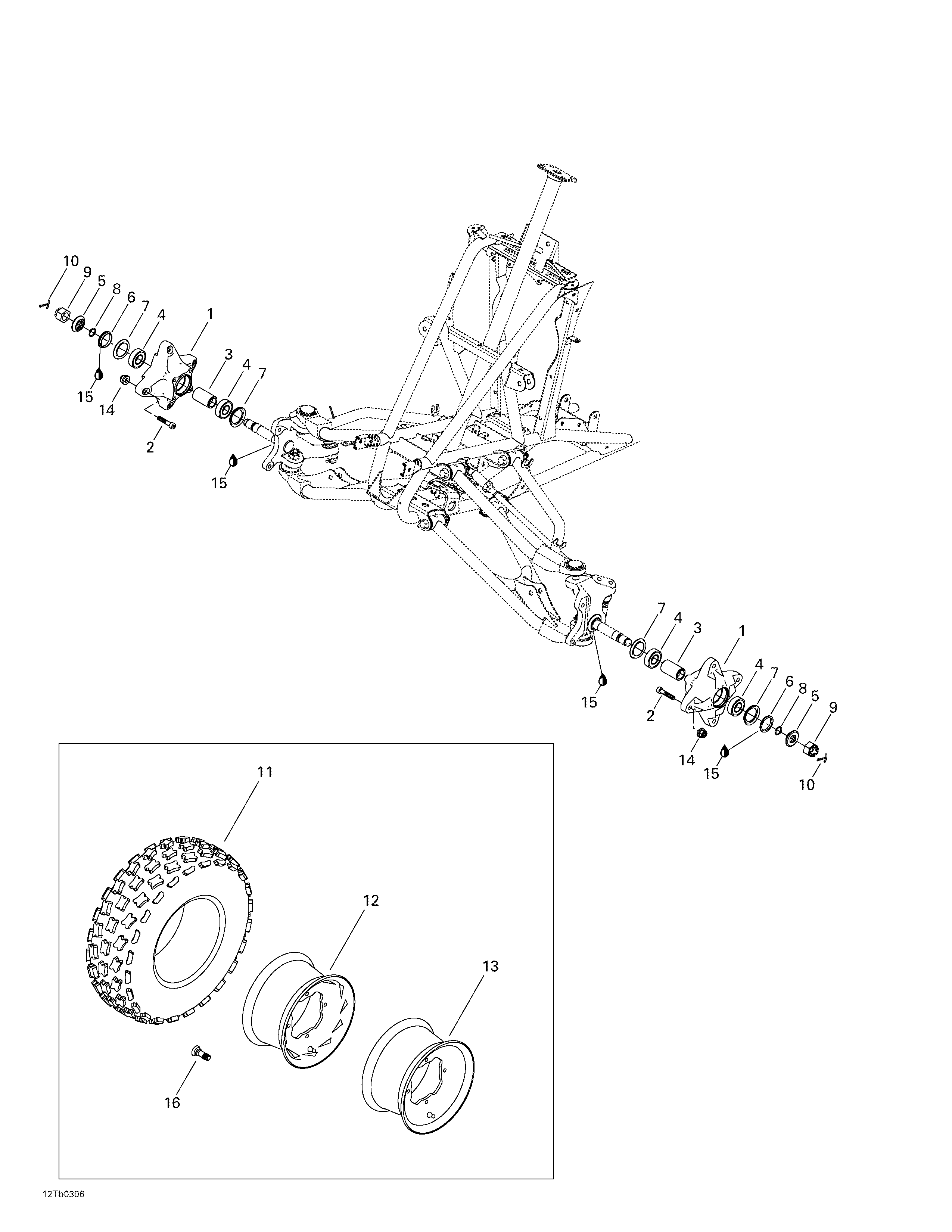

05- Drive System, Front для BRP DS 650 - 2003
-
№АртикулНазвание
-
1705400045 Wheel HubWheel Hub
-
3293900032 Inside BushingInside Bushing
-
4293350036 Ball BearingBall Bearing
-
5293900033 Outside BushingOutside Bushing
-
6705400056 Wear RingWear Ring
-
7293250094 SealSeal
-
8293300058 O-RingO-Ring
-
9232291413 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
10211400011 Cotter PinCotter Pin
-
11705400136 Front TireFront Tire
-
12705400137 Front Rim RH. DS 650 XFront Rim RH. DS 650 X
-
705400140 Front Rim LH. DS 650 Baja.Front Rim LH. DS 650 Baja.
-
13705400121 Front Rim. DS 650.Front Rim. DS 650.
-
14732610084 Flanged Nut M10Flanged Nut M10
-
15293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
16705400193 Rim ValveRim Valve
