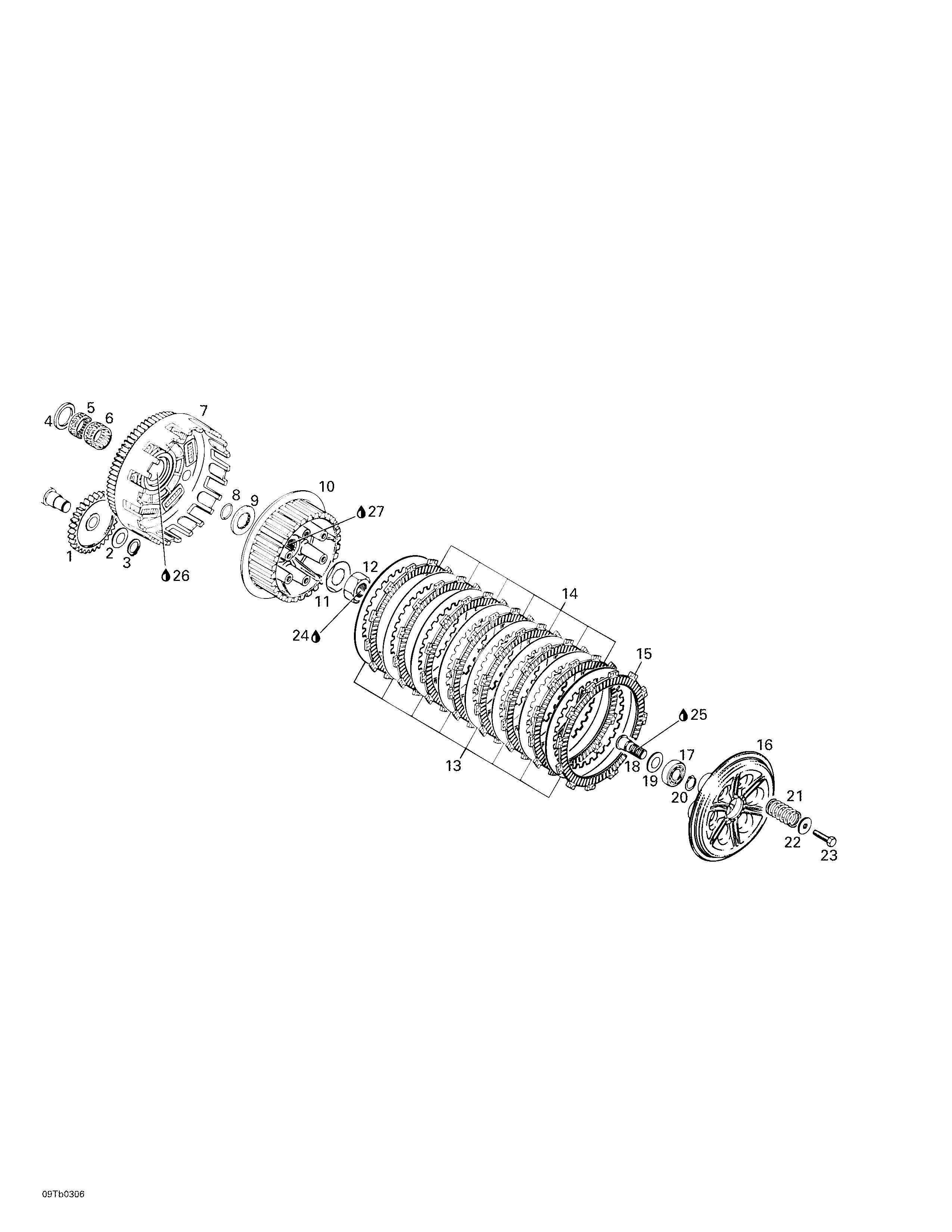

05- Clutch для BRP DS 650 - 2003
-
№АртикулНазвание
-
1420235272 Oil Pump GearOil Pump Gear
-
2420227401 Thrust WasherThrust Washer
-
3420945650 Retaining RingRetaining Ring
-
4420427460 Thrust WasherThrust Washer
-
5420932930 Needle BearingNeedle Bearing
-
6420232890 Needle BearingNeedle Bearing
-
7420296365 Primary Drive Ass'yPrimary Drive Ass'y
-
8420250890 O-RingO-Ring
-
9420244950 Thrust WasherThrust Washer
-
10420259117 Clutch HubClutch Hub
-
11420245325 Tab WasherTab Washer
-
12420242607 Nut M18Nut M18
-
13420259262 Plate 1,5 mmPlate 1,5 mm
-
14420259210 Friction Plate 3,5 mmFriction Plate 3,5 mm
-
15420259215 Friction Plate 3,5 mmFriction Plate 3,5 mm
-
16420259122 Pressure PlatePressure Plate
-
17420232262 Ball Bearing 6002Ball Bearing 6002
-
18420259202 Rack-Actuation ClutchRack-Actuation Clutch
-
19420227401 Thrust WasherThrust Washer
-
20420945650 Retaining RingRetaining Ring
-
21420239162 Clutch SpringClutch Spring
-
22420244020 WasherWasher
-
23207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
27711297616 Grease, 60 gGrease, 60 g
