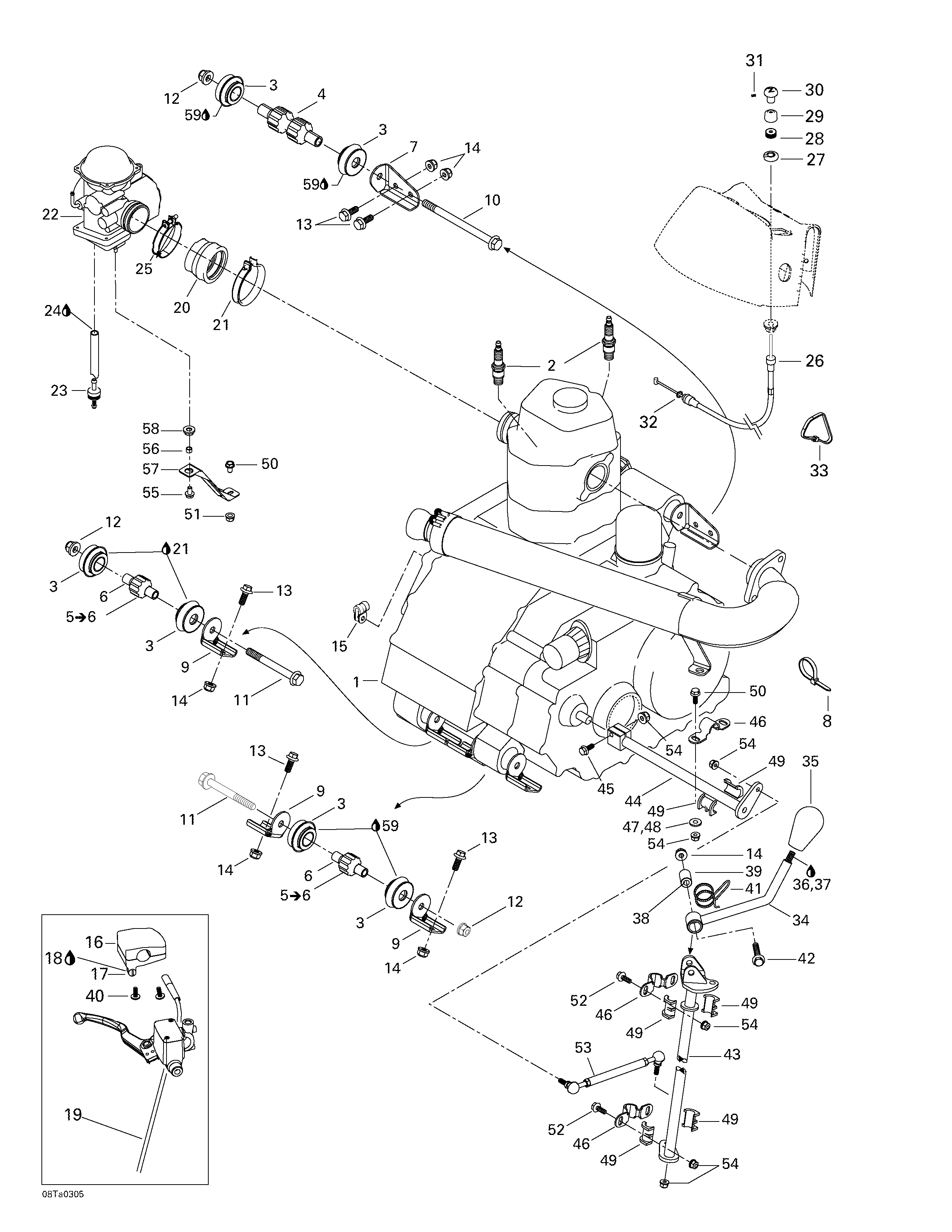

01- Engine для BRP Traxter XL, 7571 - 2003
-
№АртикулНазвание
-
1707000041 Rotax 4 Strokes Engine >Rotax 4 Strokes Engine >
-
2707000008 Spark Plug (NGK / DR8EA)Spark Plug (NGK / DR8EA)
-
3707000094 Anti-Vibration MountAnti-Vibration Mount
-
4707000019 Support BushingSupport Bushing
-
5707000030 Support Bushing. Includes 5 - 6.Support Bushing. Includes 5 - 6.
-
6707000004 Lower Bushing R.HLower Bushing R.H
-
7707000082 Engine BracketEngine Bracket
-
8293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
9705200197 Engine BracketEngine Bracket
-
10230604044 Hex. Flanged Screw M10 x 140Hex. Flanged Screw M10 x 140
-
11207609544 Hex. Flanged Screw M10 x 95Hex. Flanged Screw M10 x 95
-
12233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
13207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
14233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
15705600232 Cable ClipCable Clip
-
16709400016 Throttle HandleThrottle Handle
-
17250000017 Set Screw M5 x 20 (S. Grip)Set Screw M5 x 20 (S. Grip)
-
18293800061 Loctite BLACK MAX Gel Tube, 20gLoctite BLACK MAX Gel Tube, 20g
-
19707000097 Trottle CableTrottle Cable
-
20707000247 Carburetor AdaptorCarburetor Adaptor
-
21512059062 ClampClamp
-
22707200157 Carburetor BSR 33-29Carburetor BSR 33-29
-
23275500398 Check ValveCheck Valve
-
24413708300 Loctite 454Loctite 454
-
25293650094 Gear ClampGear Clamp
-
26707000264 Choke CableChoke Cable
-
27707000067 D'' Shape Washer```D'' Shape Washer```
-
28707000087 Cap HolderCap Holder
-
29707000088 Rubber CapRubber Cap
-
30707000089 ButtonButton
-
31250000108 Socket Screw M3 x 0.5Socket Screw M3 x 0.5
-
32293300075 O-ringO-ring
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34707000010 Lever Ass'yLever Ass'y
-
35705500022 Lever ButtonLever Button
-
36293800041 Loctite-Primer NLoctite-Primer N
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38705500150 Aluminum BushingAluminum Bushing
-
39705500193 Nylon BushingNylon Bushing
-
40205353060 Socket Screw M5 x 30Socket Screw M5 x 30
-
41705500024 Lever SpringLever Spring
-
42207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
43705500358 Upper TubeUpper Tube
-
44705500135 Lower TubeLower Tube
-
45207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
46705500041 Clamp RetainerClamp Retainer
-
47707000080 Shim 1.0 mmShim 1.0 mm
-
48707000081 Shim 2.0 mmShim 2.0 mm
-
49705500033 Half RingHalf Ring
-
50207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
51233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
52207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
53707000068 Tie-Rod Ass'yTie-Rod Ass'y
-
54233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
55207341644 Hex. Screw (Scotch Grip) M4 x 16Hex. Screw (Scotch Grip) M4 x 16
-
56707000181 SpacerSpacer
-
57707200159 Carburator SupportCarburator Support
-
58293720053 GrommetGrommet
-
59293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
