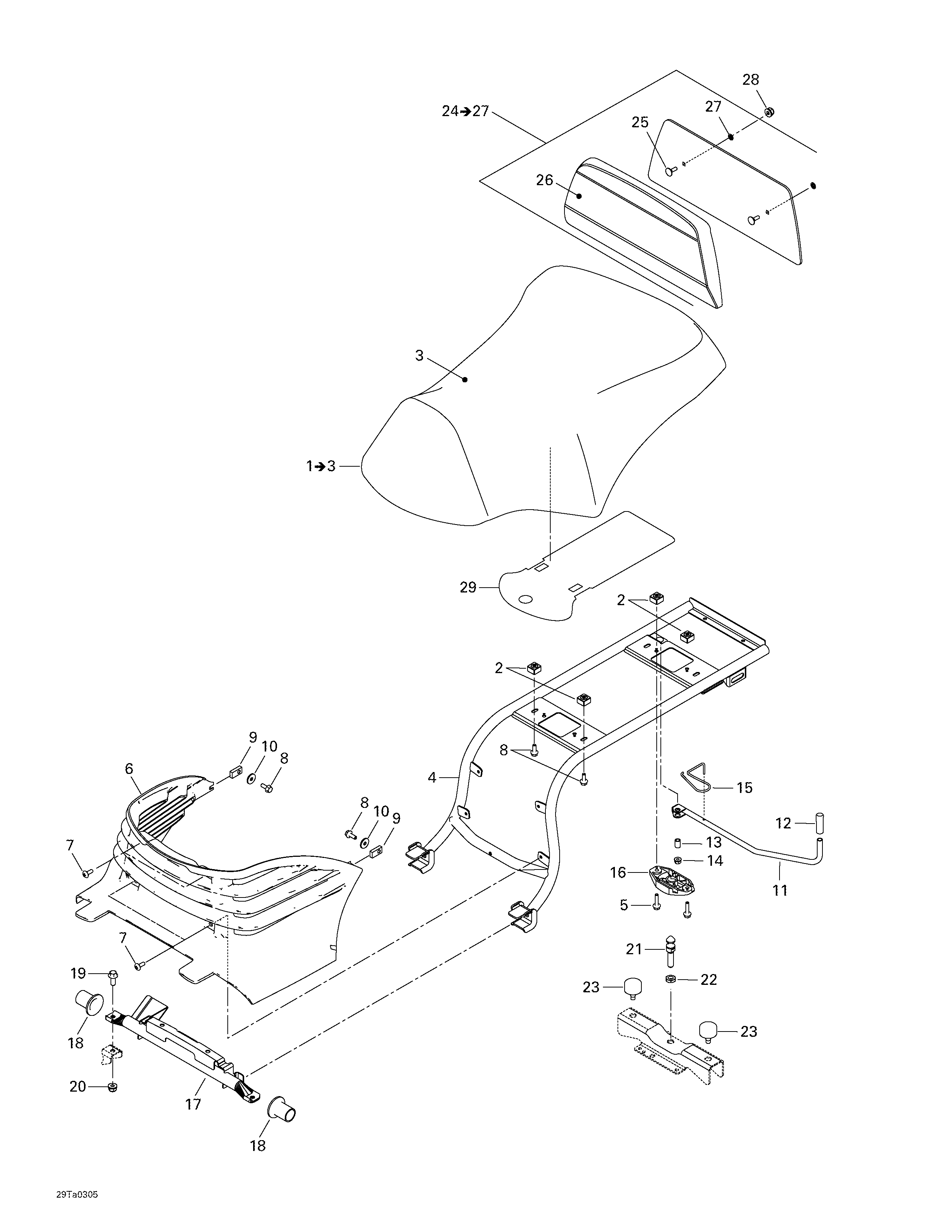

09- Seat для BRP Traxter XL, 7571 - 2003
-
№АртикулНазвание
-
1708000099 Seat-Assy. Includes 1 - 3.Seat-Assy. Includes 1 - 3.
-
2708000046 Nut Housing AssNut Housing Ass
-
3708000066 Cover SeatCover Seat
-
4708000069 Seat Support (Black)Seat Support (Black)
-
5207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
6705000187 Engine CoverEngine Cover
-
7210261080 Screw-Forming Hex. M6 x 10Screw-Forming Hex. M6 x 10
-
8207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
9708000042 Nut HousingNut Housing
-
10224061201 Flat WasherFlat Washer
-
11708000074 Lever-(Black)Lever-(Black)
-
12708000087 Vinyl Cap (Black)Vinyl Cap (Black)
-
13708000084 SleeveSleeve
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15708000073 SpringSpring
-
16708000034 Latch BaseLatch Base
-
17708000044 Seat Pivot(Black)Seat Pivot(Black)
-
18708000019 Seat BushingSeat Bushing
-
19207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
20233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
21291000945 Latch StudLatch Stud
-
22232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
23708000006 Rubber StopperRubber Stopper
-
24708000079 Backrest-Ass'y. Includes 24 - 27.Backrest-Ass'y. Includes 24 - 27.
-
25207763060 Carriage Bolt M6 x 30Carriage Bolt M6 x 30
-
26708000078 Backrest CoverBackrest Cover
-
27250100020 Locking NutLocking Nut
-
28233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29708000029 Reflective SheetReflective Sheet
