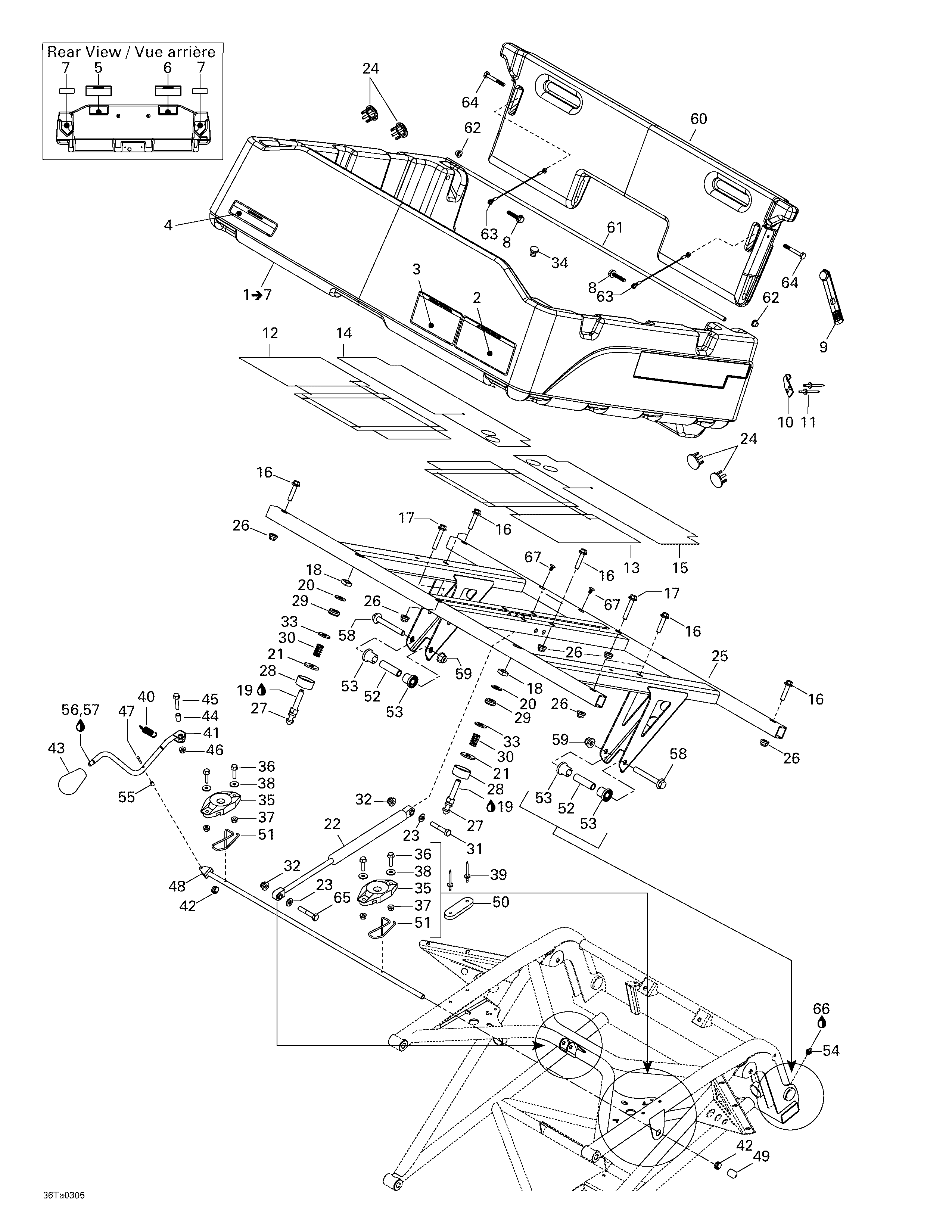

09- Rear Cargo Box для BRP Traxter XL, 7571 - 2003
-
№АртикулНазвание
-
1703500158 XL Box Kit. Includes 1 - 7.XL Box Kit. Includes 1 - 7.
-
2704900132 Warning Label (Cargo)Warning Label (Cargo)
-
3704900373 Warning Label (Tire Pressure)Warning Label (Tire Pressure)
-
4704900134 Warning Label (Lateral Compartment)Warning Label (Lateral Compartment)
-
5704900137 Warning Label (Flamable Products)Warning Label (Flamable Products)
-
6704900138 Warning Label (Passenger)Warning Label (Passenger)
-
7704900128 Rear Reflector (Red)Rear Reflector (Red)
-
8207562044 Hex. Flanged Screw M6 x 20 (Scotch Grip)Hex. Flanged Screw M6 x 20 (Scotch Grip)
-
9705000297 Door BracketDoor Bracket
-
10291000166 Latch SupportLatch Support
-
11293150023 Rivet-Pop 1/8''Rivet-Pop 1/8''
-
12705000313 Heat Shield R.HHeat Shield R.H
-
13705000318 Heat Shield L.HHeat Shield L.H
-
14705000316 Heat Shield R.HHeat Shield R.H
-
15705000319 Heat Shield L.HHeat Shield L.H
-
16207683044 Hex. Flanged Screw M8 x 30Hex. Flanged Screw M8 x 30
-
17207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
18232802412 Square Nut M10Square Nut M10
-
19293800060 Loctite-243, 10mLLoctite-243, 10mL
-
20503175800 WasherWasher
-
21506148100 WasherWasher
-
22705000261 Gas ShockGas Shock
-
23234081410 Flat Washer M8Flat Washer M8
-
24293000096 Protector CapProtector Cap
-
25705000604 Box SupportBox Support
-
26233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
27291000664 Latch StudLatch Stud
-
28293830025 Rubber PadRubber Pad
-
29211100009 Rubber WasherRubber Washer
-
30705000307 SpringSpring
-
31230080044 Hex. Screw M8x100Hex. Screw M8x100
-
32233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
33250200014 Flat WasherFlat Washer
-
34705000323 CapCap
-
35708000034 Latch BaseLatch Base
-
36207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38234062600 Flat Washer M6Flat Washer M6
-
39390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
40705600098 Brake Pedal SpringBrake Pedal Spring
-
41705000253 Lever (Black)Lever (Black)
-
42705000292 Plastic SleevePlastic Sleeve
-
43705500022 Lever ButtonLever Button
-
44708000084 SleeveSleeve
-
45207663044 Hex. Flanged Screw M6x30Hex. Flanged Screw M6x30
-
46233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
47293150084 RivetRivet
-
48705000289 Central Tube (Black)Central Tube (Black)
-
49705000300 CapCap
-
50705000299 Rubber SupportRubber Support
-
51705000259 SpringSpring
-
52706200061 Interior BushingInterior Bushing
-
53706200063 CushionCushion
-
54408200700 Fitting-GreaseFitting-Grease
-
55705000305 Holder RingHolder Ring
-
56293800041 Primer-LoctitePrimer-Loctite
-
57293800060 Loctite-243, 10 mlLoctite-243, 10 ml
-
58207607046 Hex. Flanged Screw M10x70Hex. Flanged Screw M10x70
-
59233001414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
60705000220 Box PanelBox Panel
-
61705000294 Pivot Tube (Black)Pivot Tube (Black)
-
62250100026 Pushnut CapPushnut Cap
-
63705000296 Door CableDoor Cable
-
64243164540 Screw-Plastite Hex. M6.81 x 45Screw-Plastite Hex. M6.81 x 45
-
65207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
66293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
67293730018 Dart MountDart Mount
