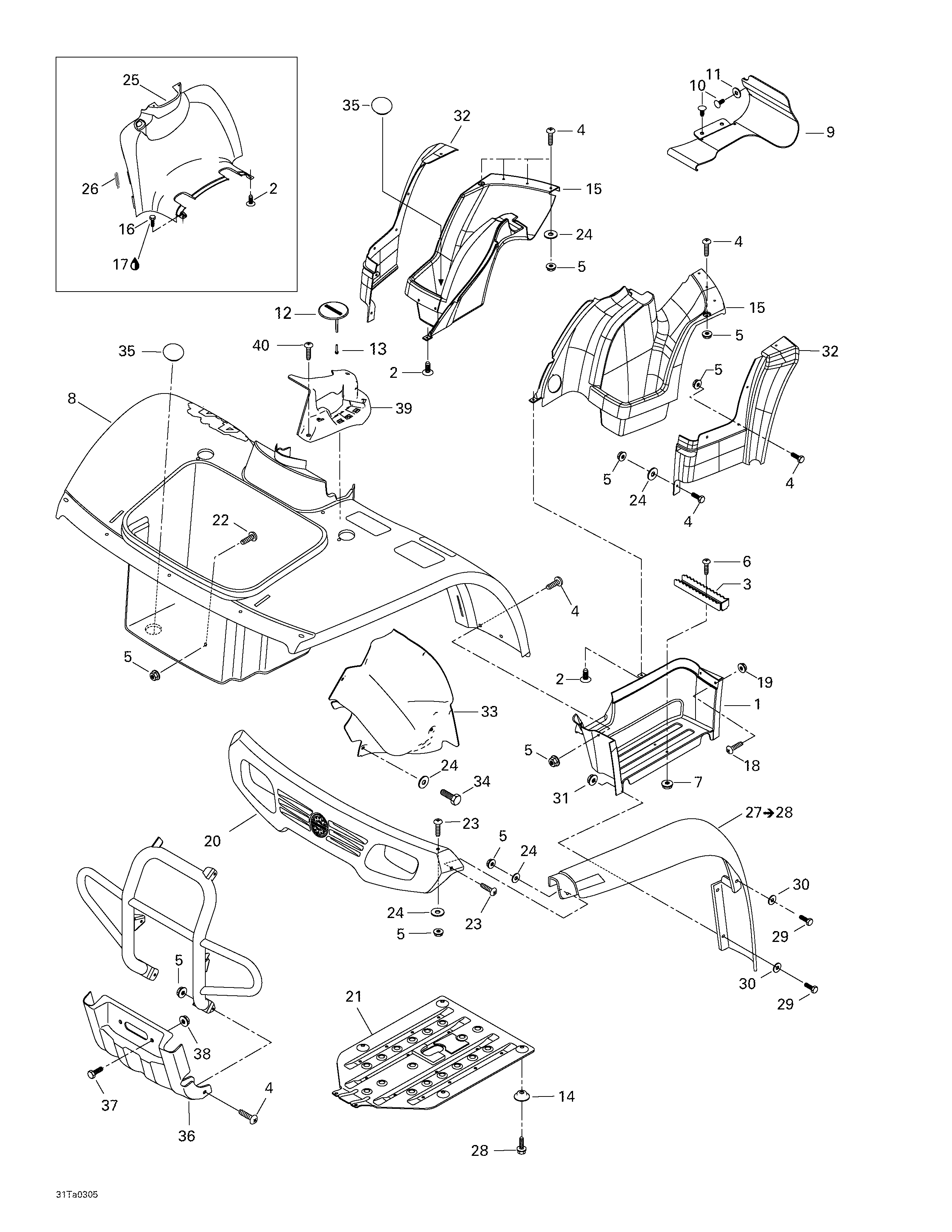

09- Body And Accessories для BRP Traxter XL, 7571 - 2003
-
№АртикулНазвание
-
1705000017 Foot Well RHFoot Well RH
-
705000018 Foot Well LHFoot Well LH
-
2293730011 DartDart
-
3705000631 Foot PegFoot Peg
-
4211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
5233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
7233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8703500243 Front FenderFront Fender
-
9705000413 Air ShieldAir Shield
-
10390402000 Pop-RivetsPop-Rivets
-
11391301600 WasherWasher
-
12705000232 Steering CoverSteering Cover
-
13241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
14705200533 CupCup
-
15705000221 Rear Fender R.H. (Green)Rear Fender R.H. (Green)
-
705000222 Rear Fender L.H. (Green)Rear Fender L.H. (Green)
-
16207661244 Screw Hex. Flanged M6 x 12Screw Hex. Flanged M6 x 12
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
19233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20703500011 Front Fascia KitFront Fascia Kit
-
21705200535 PlatePlate
-
22211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
23211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
24224060201 Flat WasherFlat Washer
-
25705000010 Tank CoverTank Cover
-
26570023800 LatchLatch
-
27703500014 L.H. Front Mudguard Kit. Includes 27 - 28.L.H. Front Mudguard Kit. Includes 27 - 28.
-
703500015 R.H. Front Mudguard KitR.H. Front Mudguard Kit
-
28207582044 Screw Hex. Flanged M8 x 20 (Scotch Grip)Screw Hex. Flanged M8 x 20 (Scotch Grip)
-
29207162044 Screw Hex. M6 x 20Screw Hex. M6 x 20
-
30224060201 Flat WasherFlat Washer
-
31233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32705000224 L.H. Rear MudguardL.H. Rear Mudguard
-
705000225 R.H. Rear MudguardR.H. Rear Mudguard
-
33705000133 Protector L.HProtector L.H
-
705000134 Protector R.HProtector R.H
-
34210261680 Screw Hex. M6.3 x 19Screw Hex. M6.3 x 19
-
35570041600 Rubber CoverRubber Cover
-
36705000135 Protection PlateProtection Plate
-
37207602544 Screw Hex. Flanged M10 x 25Screw Hex. Flanged M10 x 25
-
38233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
39705000081 IndicatorIndicator
-
40414745900 Screw PhillipsScrew Phillips
