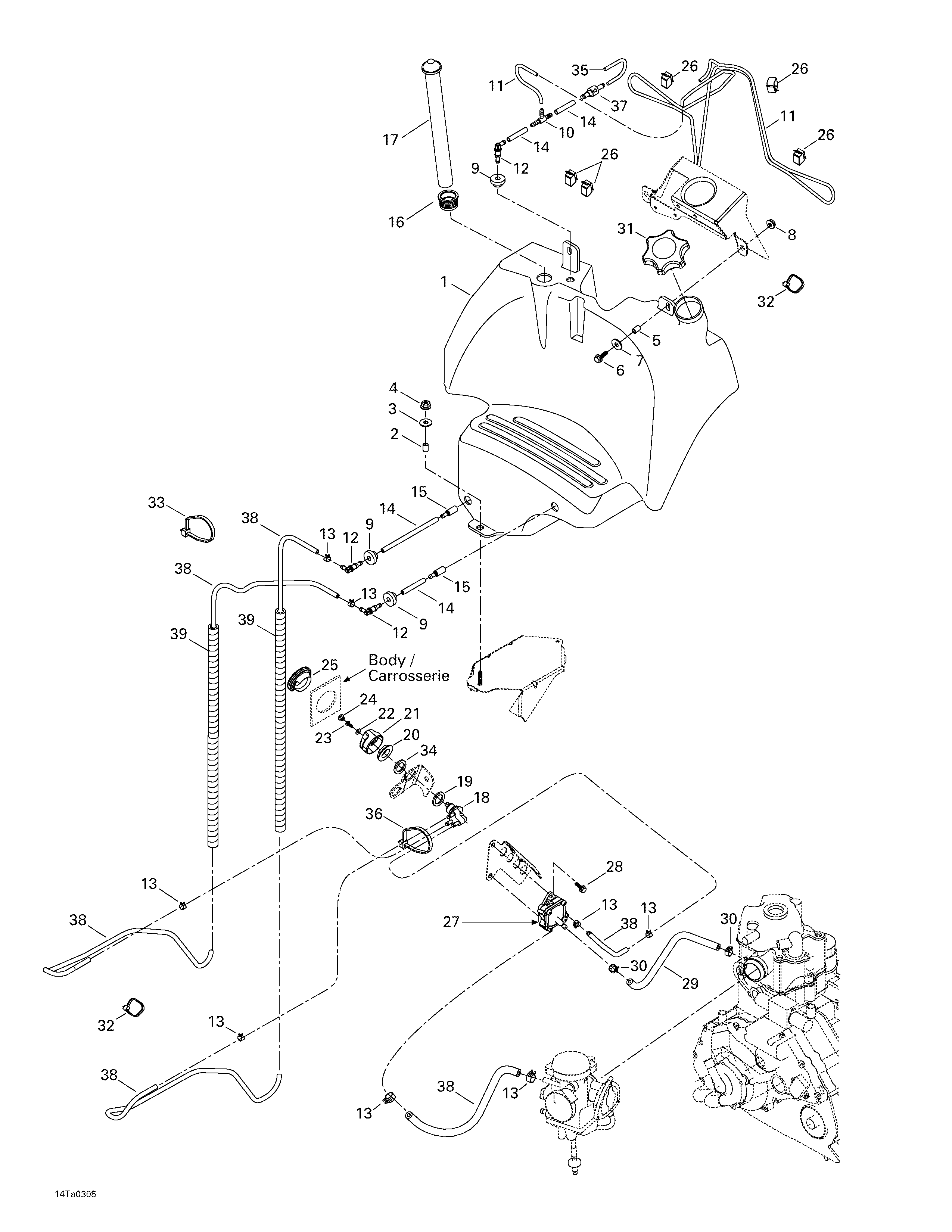

02- Fuel Tank для BRP Traxter XL, 7571 - 2003
-
№АртикулНазвание
-
1709000025 Fuel TankFuel Tank
-
2293900028 BushingBushing
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5293900029 BushingBushing
-
6207662544 Screw Hex. Flanged M6 x 25Screw Hex. Flanged M6 x 25
-
7224061201 Flat WasherFlat Washer
-
8233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9570045500 GrommetGrommet
-
10414222500 T'' Fitting```T'' Fitting```
-
11709000031 Vent HoseVent Hose
-
12414580600 Elbow Male ConnectorElbow Male Connector
-
13414415200 Spring ClampSpring Clamp
-
14415080200 Line (Meter)Line (Meter)
-
15414865700 Fuel FilterFuel Filter
-
16293720058 GrommetGrommet
-
17709000033 Fuel GaugeFuel Gauge
-
18275500098 Fuel ValveFuel Valve
-
19293250004 Fuel Valve GasketFuel Valve Gasket
-
20212100009 Plastic Hex. NutPlastic Hex. Nut
-
21275500263 Fuel Valve KnobFuel Valve Knob
-
22234040600 Flat Washer 4 mmFlat Washer 4 mm
-
23208640860 Phillips ScrewZ M4 x 8Phillips ScrewZ M4 x 8
-
24275500241 Plug CapPlug Cap
-
25709000005 Fuel Valve GrommetFuel Valve Grommet
-
26414227300 ClipClip
-
27707200000 Fuel PumpFuel Pump
-
28210261040 Screw M6 x 10Screw M6 x 10
-
29709000024 Formed HoseFormed Hose
-
30414415200 Spring ClampSpring Clamp
-
31572039600 CapCap
-
32293750002 Tie Rap 130 mmTie Rap 130 mm
-
33414115200 Tie Rap 180 mmTie Rap 180 mm
-
34250200015 WasherWasher
-
35709000029 Vent HoseVent Hose
-
36293750008 Tie Rap 350 mmTie Rap 350 mm
-
37275500479 Check ValveCheck Valve
-
38415079800 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
39409901800 TubingTubing
-
40703500045 Primer KitPrimer Kit
