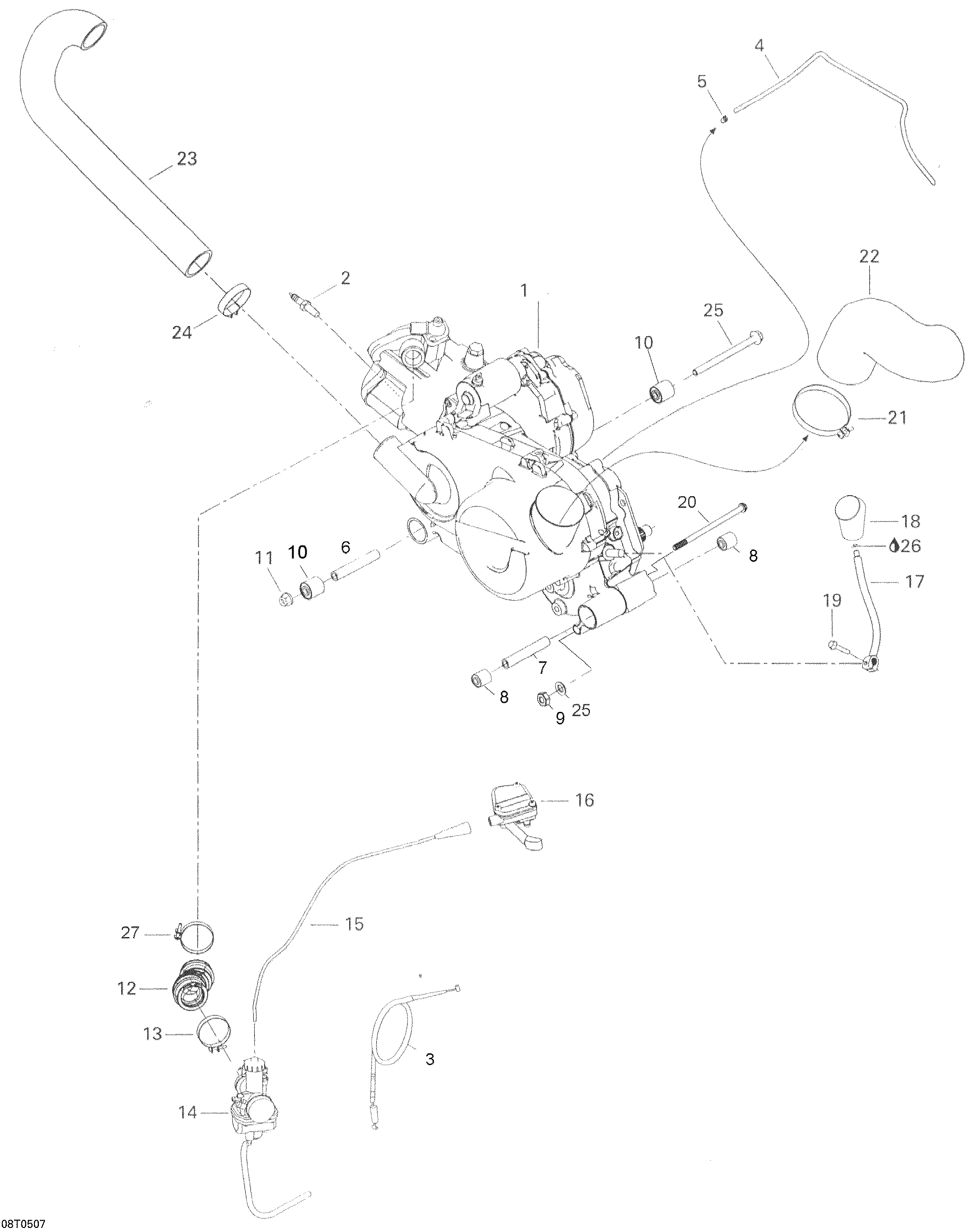

01- Engine And Engine Support для BRP Rally 175 - 2005
-
№АртикулНазвание
-
1A84100179000 Engine 175 CCEngine 175 CC
-
2707000306 Spark PlugSpark Plug
-
3A17950179000 Choke CableChoke Cable
-
4415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
5414554800 Universal Spring ClampUniversal Spring Clamp
-
6A11150179000 Front Crankcase AxleFront Crankcase Axle
-
7A11151179000 Rear Crankcase AxleRear Crankcase Axle
-
8A96400123538 Rear BushingRear Bushing
-
9232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10A96400123535 Front BushingFront Bushing
-
11A9035112000 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
12707000195 Carburetor AdaptorCarburetor Adaptor
-
13293650151 Gemi ClampGemi Clamp
-
14A16100179000 CarburetorCarburetor
-
15707000318 Throttle CableThrottle Cable
-
16709400142 Throttle HandleThrottle Handle
-
17A24701179000 Shifter LeverShifter Lever
-
18A24702179000 Lever ButtonLever Button
-
19207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
20A9600010158 Hex Flanged ScrewHex Flanged Screw
-
21293650152 Gemi ClampGemi Clamp
-
22707000202 ExhaustExhaust
-
23707000203 Air IntakeAir Intake
-
24293650153 ClampClamp
-
25A941011020020 WasherWasher
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27A9451548000 ClampClamp
