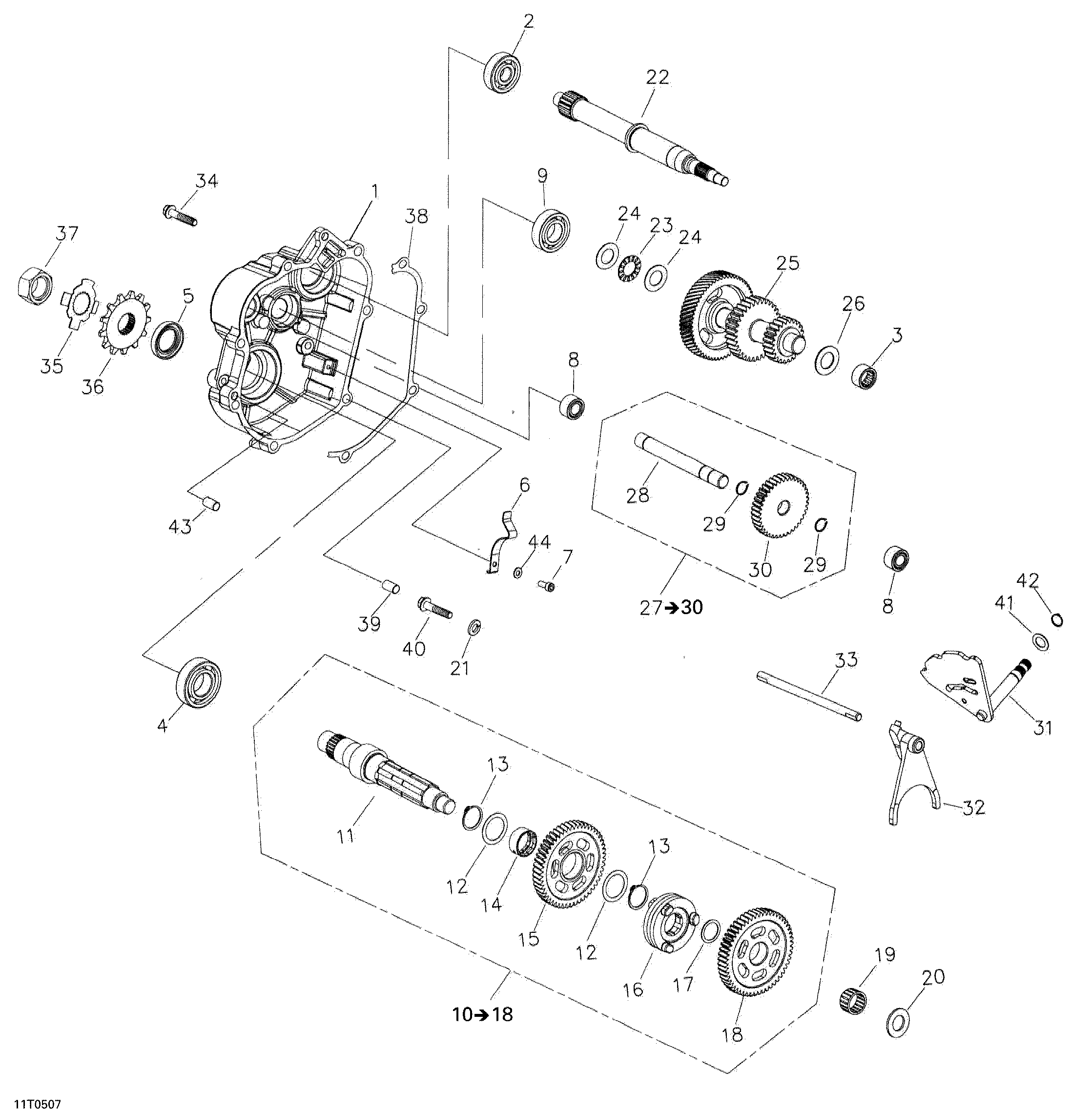

05- Gear Shift для BRP Rally 175 - 2005
-
№АртикулНазвание
-
1A21301179001 Gear Box CoverGear Box Cover
-
2A961006302C3 Ball Bearing 6302Ball Bearing 6302
-
3A96200HK1812 Needle BushingNeedle Bushing
-
4A961006205C3 Ball BearingBall Bearing
-
5A9650025407 Oil SealOil Seal
-
6A24435179001 SpringSpring
-
7420241841 Socket Screw M5 x 12Socket Screw M5 x 12
-
8A96200HK1512 Needle BearingNeedle Bearing
-
9A961006303 Ball Bearing 6003Ball Bearing 6003
-
10A23220179002 Driven Gear Ass'y. Includes 10 To 18Driven Gear Ass'y. Includes 10 To 18
-
11A23221179001 Driven ShaftDriven Shaft
-
12A941052635005 WasherWasher
-
13A945112500S CirclipCirclip
-
14A23402179001 Inner BushingInner Bushing
-
15A23405179001 High Gear, 51 TeethHigh Gear, 51 Teeth
-
16A23461179001 Sliding BushingSliding Bushing
-
17A941052026010 WasherWasher
-
18A23406179001 Reverse Idle Gear, 53 TeethReverse Idle Gear, 53 Teeth
-
19A96200202413 Sprag ClutchSprag Clutch
-
20A941051528010 WasherWasher
-
21420927571 WasherWasher
-
22A23411179001 Drive Pulley Shaft 24TDrive Pulley Shaft 24T
-
23A968001730A Plain BearingPlain Bearing
-
24A941051730010 Thrust WasherThrust Washer
-
25A23211179001 Intermediate Shaft Ass'yIntermediate Shaft Ass'y
-
26A941051826010 Thrust WasherThrust Washer
-
27A24773179000 Reverse Idle Gear A'ss'y. Includes 27 To 30Reverse Idle Gear A'ss'y. Includes 27 To 30
-
28A24775179001 Reverse Idle Gear ShaftReverse Idle Gear Shaft
-
29A945111800S CirclipCirclip
-
30A23407179001 Idle Gear, 38 TeethIdle Gear, 38 Teeth
-
31A24630179001 Shift Shaft Ass'yShift Shaft Ass'y
-
32A24211179000 Shift ForkShift Fork
-
33A24241179000 Guide PinGuide Pin
-
34A960000804010G Allen Screw M8 x 40Allen Screw M8 x 40
-
35A23415179001 Lock WasherLock Washer
-
36A23801179000 Sprocket, 13 TeethSprocket, 13 Teeth
-
37420242651 Nut M20Nut M20
-
38A21395179001 GasketGasket
-
39A9430110140 Dowel PinDowel Pin
-
40A960000804510G Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
41A941051222010 WasherWasher
-
42A945111200S CirclipCirclip
-
43A9430708120 Center Pin 8x12Center Pin 8x12
