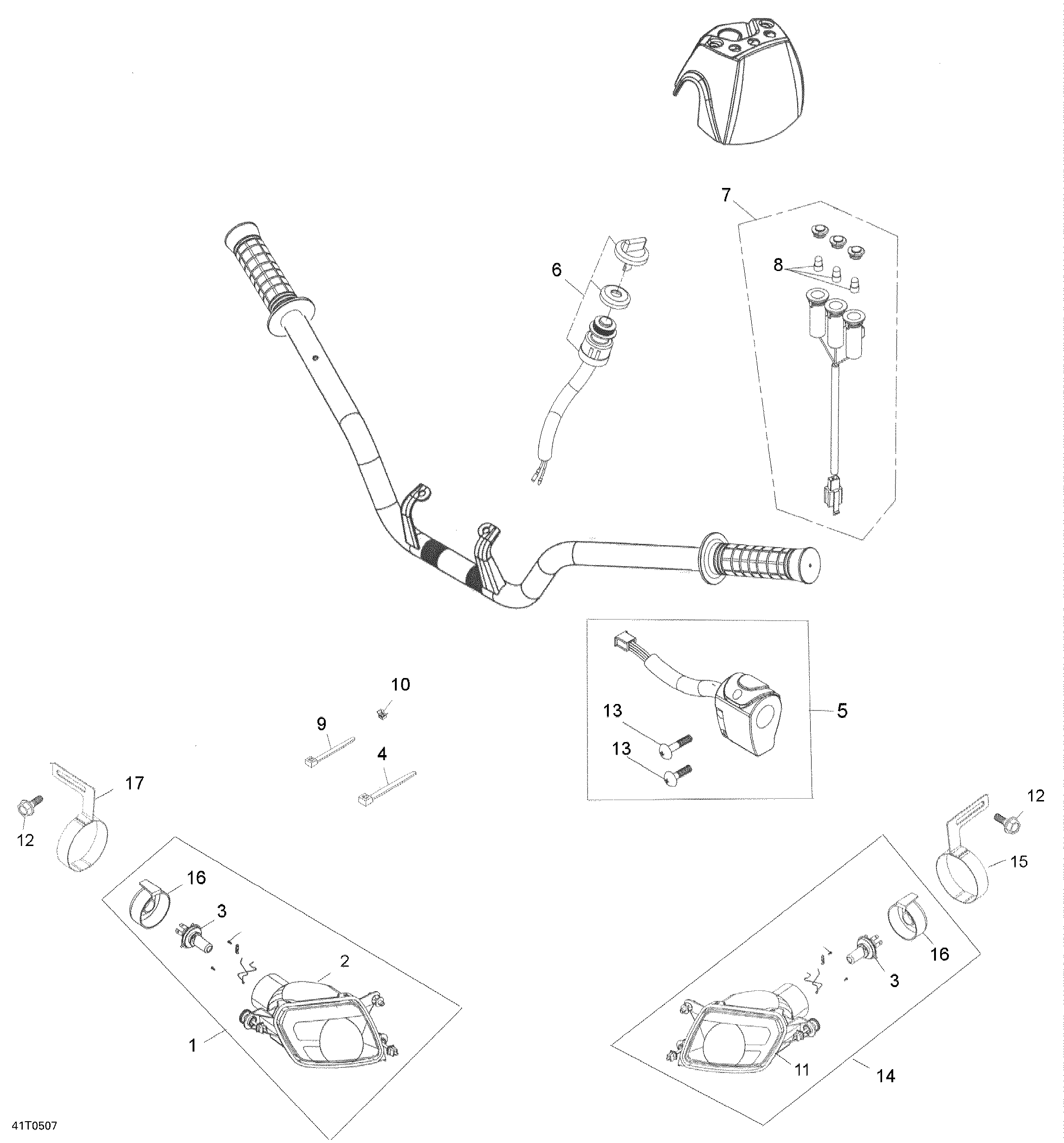

10- Electrical Accessories для BRP Rally 175 - 2005
-
№АртикулНазвание
-
1A33100179001 R.h. Front Light Ass'yR.h. Front Light Ass'y
-
3A34901179000 BulbBulb
-
4414115200 Tie-RapTie-Rap
-
5A35200179000 HandleHandle
-
6A35100179000 Ignition SwitchIgnition Switch
-
7A37250179000 Pilot LampPilot Lamp
-
8A34908179000 BulbBulb
-
9414115200 Tie-RapTie-Rap
-
10293730018 Mount DartMount Dart
-
12A901120601610 Flanged Hex Screw M6 X 16Flanged Hex Screw M6 X 16
-
13205453546 Socket Screw M5 x 35Socket Screw M5 x 35
-
14A33200179001 L.h. Front Light Ass'yL.h. Front Light Ass'y
-
15A33154179000 L.h. Head Light BracketL.h. Head Light Bracket
-
17A33153179000 R.h. Head Light BracketR.h. Head Light Bracket
