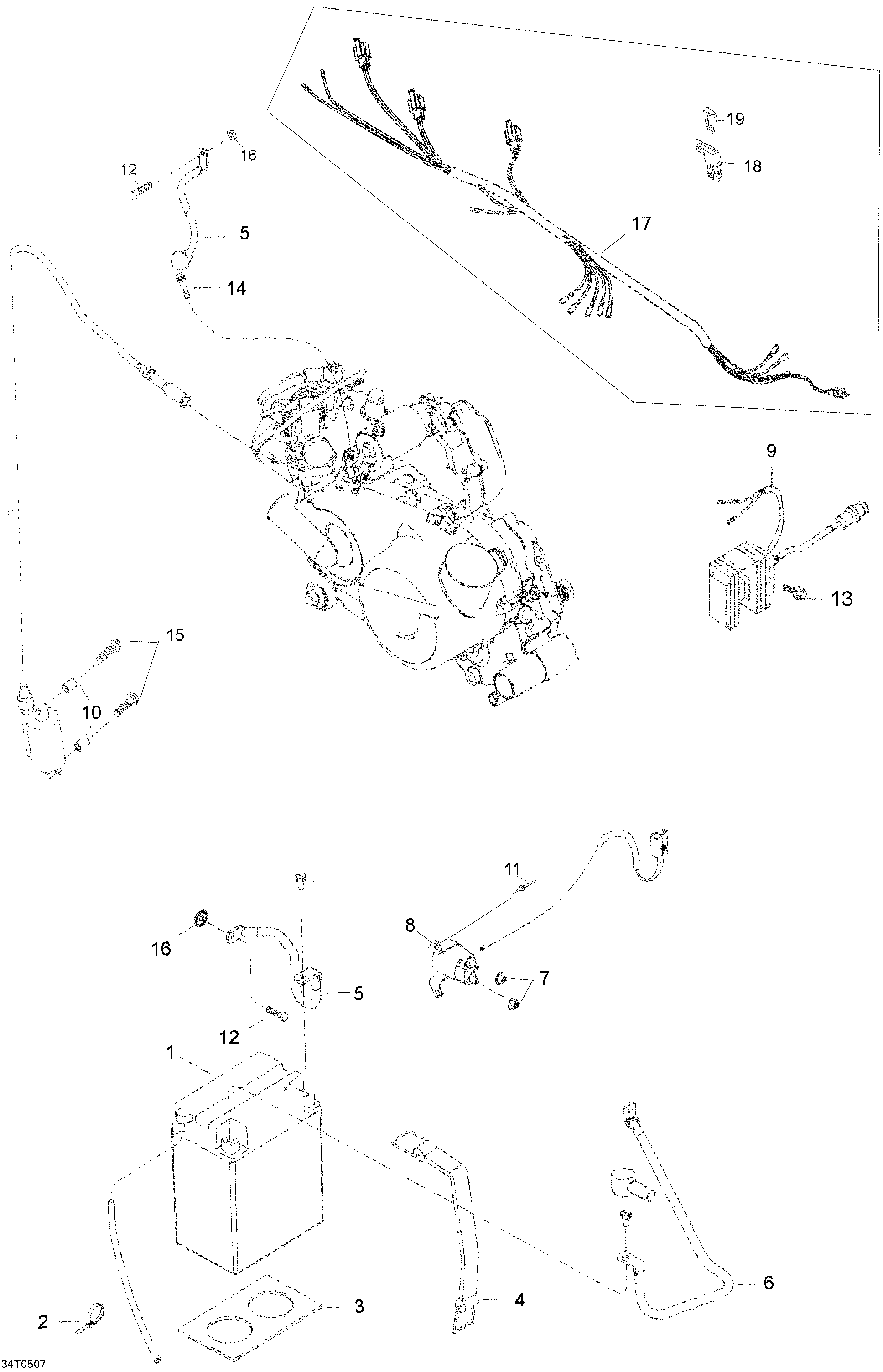

10- Battery And Electrical Accessories для BRP Rally 175 - 2005
-
№АртикулНазвание
-
1715000194 Battery, 13 AmperesBattery, 13 Amperes
-
2414115200 Tie-RapTie-Rap
-
3710000241 Rubber ProtectorRubber Protector
-
4515176044 Battery StrapBattery Strap
-
5A32103179000 Ground CableGround Cable
-
6A32101179000 Positive CablePositive Cable
-
7233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
8710000252 Starter RelayStarter Relay
-
9A31600169000 Voltage regulatorVoltage regulator
-
10A30512179000 SpacerSpacer
-
11A90662118000 Pop-rivet 3/16''Pop-rivet 3/16''
-
12A9200306015 Torx Button Head Screw M6 X 25Torx Button Head Screw M6 X 25
-
13210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
14205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
15A9200306035 Pop Rivet 3/16''Pop Rivet 3/16''
-
16A941150611006 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
17A32100179000 Harness Ass'yHarness Ass'y
-
18A98201179000 Fuse HolderFuse Holder
-
19278000343 Fuse, 15 AmperesFuse, 15 Amperes
