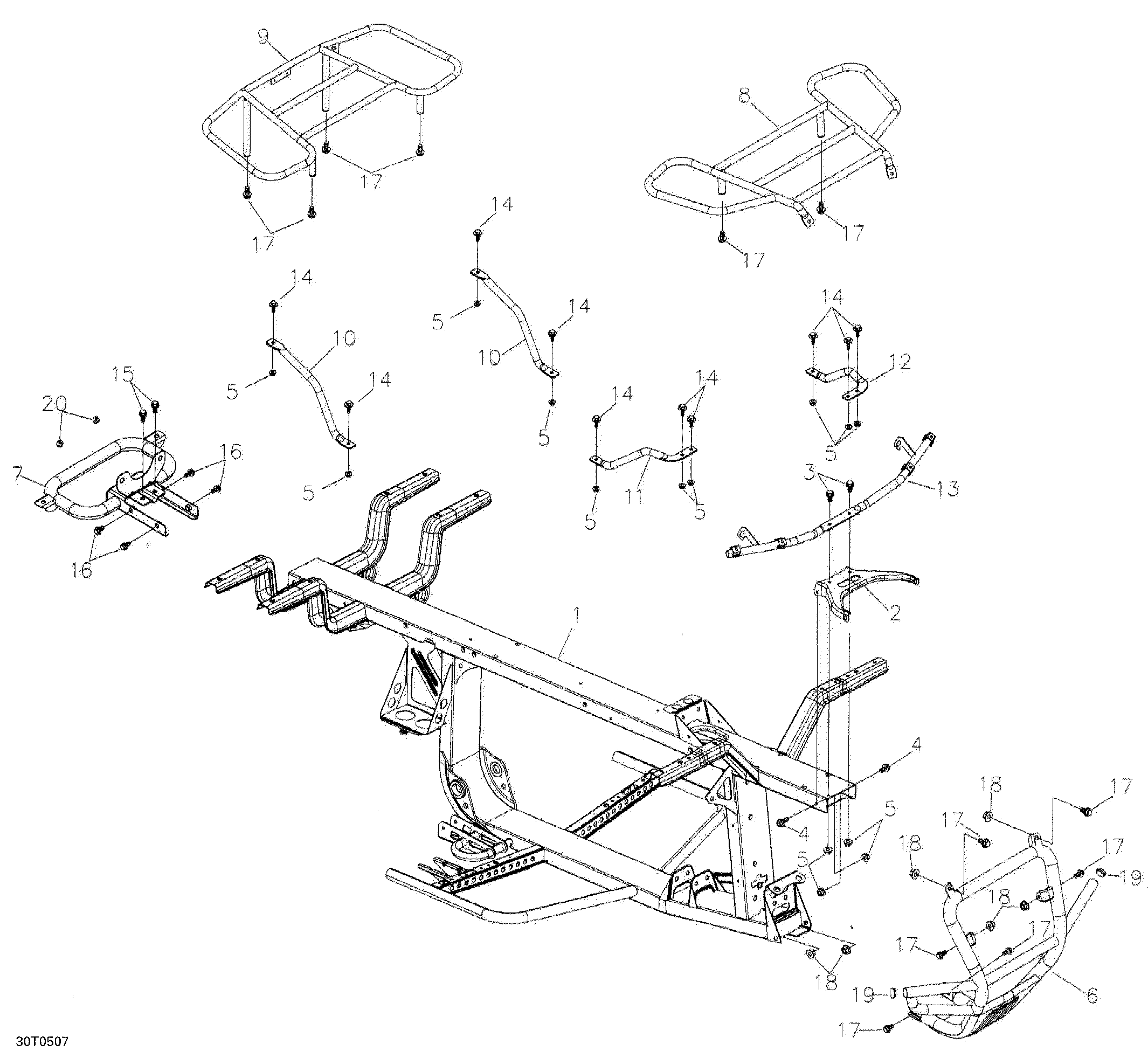

09- Frame And Luggage Racks для BRP Rally 175 - 2005
-
№АртикулНазвание
-
1A50100179000 Painted FramePainted Frame
-
2A50114179000 Front PlateFront Plate
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
5233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
6A50104179000 Front BumperFront Bumper
-
7A50105179000 Rear BumperRear Bumper
-
8A61200179000 Front RackFront Rack
-
9A81200179000 Rear RackRear Rack
-
10A83401179000 Rear Cover PoleRear Cover Pole
-
11A64307179000 R.h. Front Cover PoleR.h. Front Cover Pole
-
12A64308179000 L.h. Front Cover PoleL.h. Front Cover Pole
-
13A64336179000 Front Fascia PoleFront Fascia Pole
-
14210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
15A9600008016G Hex. Flanged Screw M8 X 16Hex. Flanged Screw M8 X 16
-
16A9600008016GL Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
17207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
18233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
19A50117179000 Front Bumper CapFront Bumper Cap
-
20250100035 Jack Nut M5Jack Nut M5
