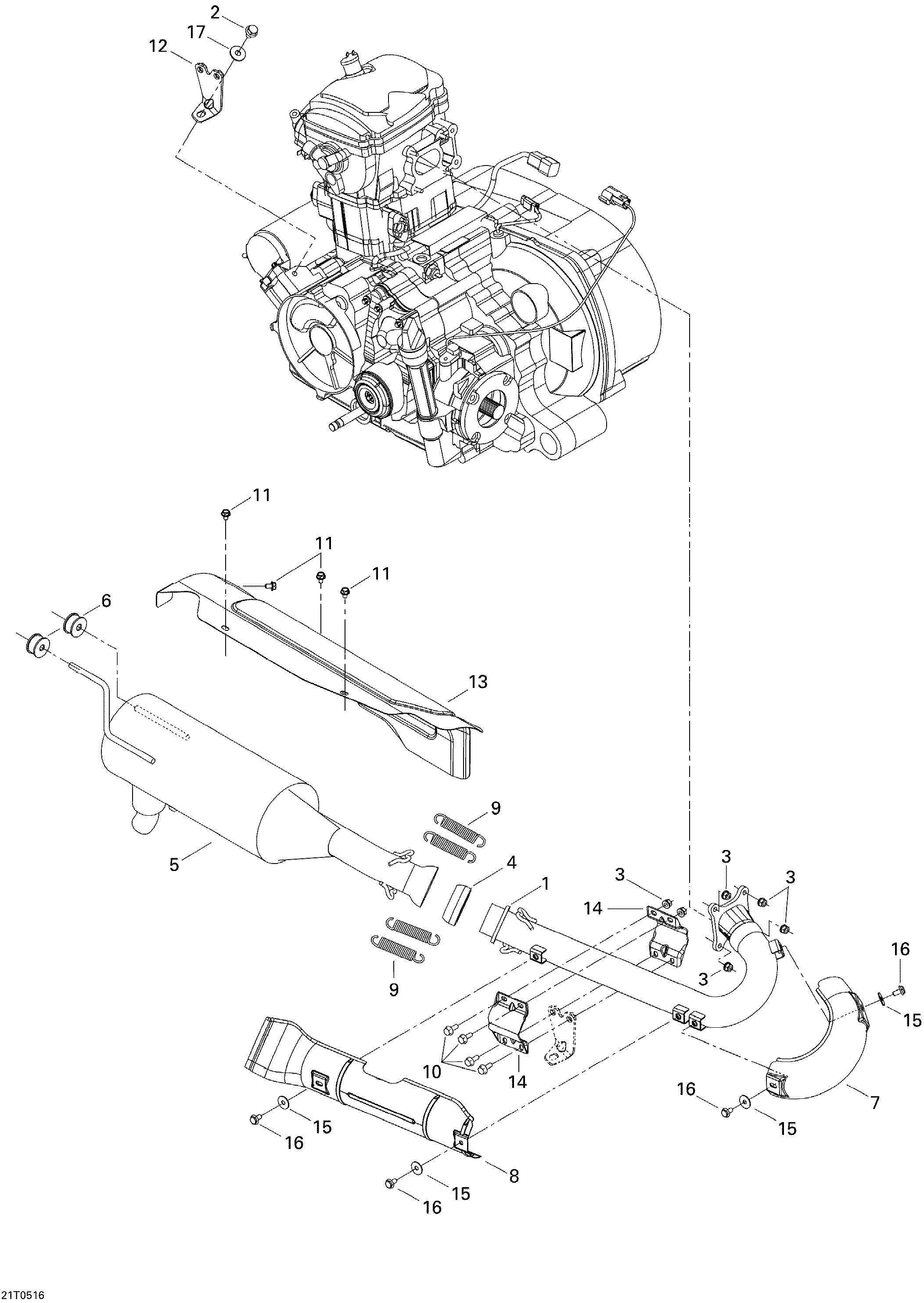

01- Exhaust System для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1707600084 Tuned PipeTuned Pipe
-
2207581646 Flanged Screw M8 X 16 (scotch Grip)Flanged Screw M8 X 16 (scotch Grip)
-
3233061414 Hexagonal Flange Nut M6Hexagonal Flange Nut M6
-
4707600164 Pipe GasketPipe Gasket
-
5707600230 Tuned PipeTuned Pipe
-
6707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
7707600167 Heat ShieldHeat Shield
-
8707600168 Heat ShieldHeat Shield
-
9707600177 SpringSpring
-
10207661646 Hex Flange Screw M6 X 16Hex Flange Screw M6 X 16
-
11210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
12707600131 Exhaust SupportExhaust Support
-
13707600076 Heat ShieldHeat Shield
-
14707600165 Exhaust ClampExhaust Clamp
-
15224060201 Flat WasherFlat Washer
-
16250000073 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
17234082410 Flat Washer 8 mmFlat Washer 8 mm
