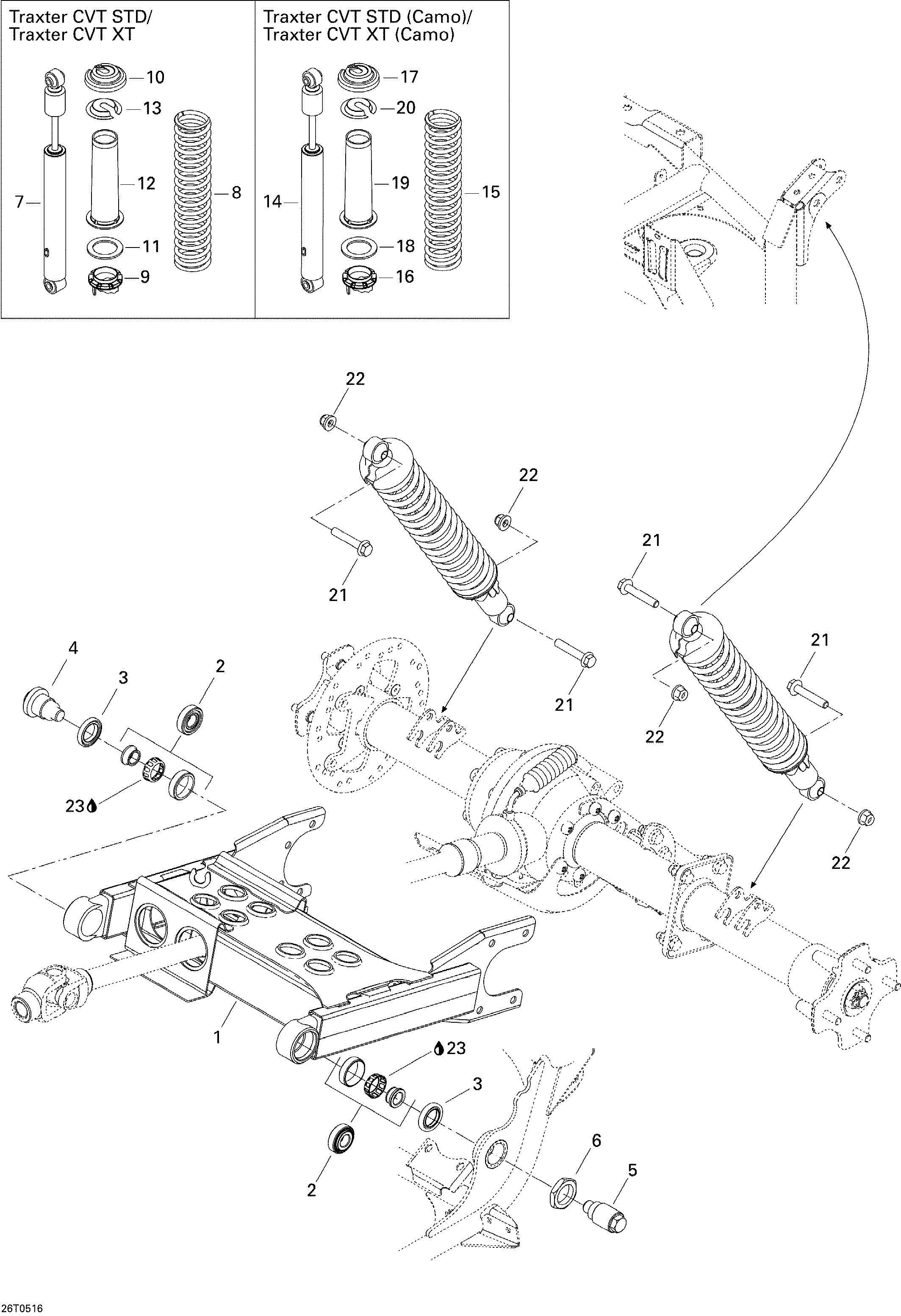

08- Rear Suspension для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1706000298 Swing Arm (Black)Swing Arm (Black)
-
2706000169 Cone BearingCone Bearing
-
3706000010 Oil SealOil Seal
-
4706000092 RH Pivot BoltRH Pivot Bolt
-
5706000093 LH Pivot BoltLH Pivot Bolt
-
6706000006 Hex Jam NutHex Jam Nut
-
7706000380 Rear Shock. Traxter CVT STD & XTRear Shock. Traxter CVT STD & XT
-
8706000301 Rear Spring (Yellow). Traxter CVT STD & XTRear Spring (Yellow). Traxter CVT STD & XT
-
9706000294 Ring Adjuster. Traxter CVT STD & XTRing Adjuster. Traxter CVT STD & XT
-
10503140600 Spring Stopper. Traxter CVT STD & XTSpring Stopper. Traxter CVT STD & XT
-
11706000335 Spring Seat. Traxter CVT STD & XTSpring Seat. Traxter CVT STD & XT
-
12503190436 Protector. Traxter CVT STD & XTProtector. Traxter CVT STD & XT
-
13503141600 Cap. Traxter CVT STD & XTCap. Traxter CVT STD & XT
-
14706000380 Rear Shock. Traxter CVT STD & XT (Camo)Rear Shock. Traxter CVT STD & XT (Camo)
-
15706000304 Rear Spring. Traxter CVT STD & XT (Camo)Rear Spring. Traxter CVT STD & XT (Camo)
-
16706000294 Ring Adjuster. Traxter CVT STD & XT (Camo)Ring Adjuster. Traxter CVT STD & XT (Camo)
-
17503140600 Spring Stopper. Traxter CVT STD & XT (Camo)Spring Stopper. Traxter CVT STD & XT (Camo)
-
18706000335 Spring Seat. Traxter CVT STD & XT (Camo)Spring Seat. Traxter CVT STD & XT (Camo)
-
19503190436 Protector. Traxter CVT STD & XT (Camo)Protector. Traxter CVT STD & XT (Camo)
-
20503141600 Cap. Traxter CVT STD & XT (Camo)Cap. Traxter CVT STD & XT (Camo)
-
21207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
22233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
23293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
