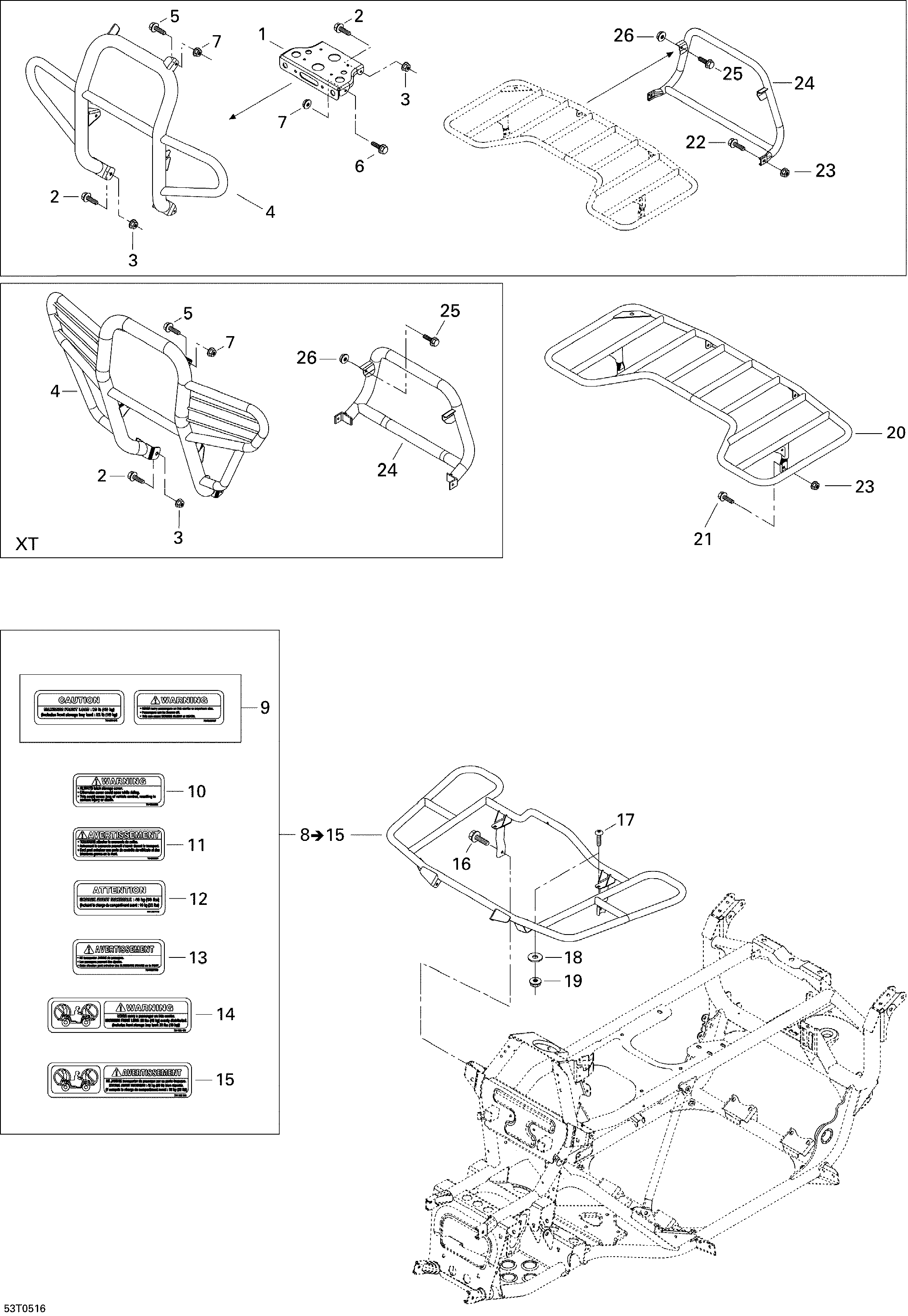

09- Luggage Racks для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1705200196 Winch Latch (Black)Winch Latch (Black)
-
2207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4705000585 Front Bumper (Black). Traxter CVT XTFront Bumper (Black). Traxter CVT XT
-
4705000591 Front Bumper (Black). Traxter CVT STDFront Bumper (Black). Traxter CVT STD
-
5207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
6207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8703500452 Luggage Rack Kit. Includes 8 to 15Luggage Rack Kit. Includes 8 to 15
-
9704900799 Warning Label (front Load). English VersionWarning Label (front Load). English Version
-
10704900800 Warning Label (cover Latch). English VersionWarning Label (cover Latch). English Version
-
11704900801 Warning Label (cover Latch). French VersionWarning Label (cover Latch). French Version
-
12704900016 Caution Decal, Maximum Load. French VersionCaution Decal, Maximum Load. French Version
-
13704900798 Warning Label (death And Injuries). French VersionWarning Label (death And Injuries). French Version
-
14704900453 Warning Label (front Load). English VersionWarning Label (front Load). English Version
-
16207582044 Hex Flanged Screw M8 X 20 (Scotch Grip)Hex Flanged Screw M8 X 20 (Scotch Grip)
-
17250000035 Truss Phillips Screw M6 X 25Truss Phillips Screw M6 X 25
-
18224061121 Flat WasherFlat Washer
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20705000622 Rear Luggage Rack (black)Rear Luggage Rack (black)
-
21207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
22207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24705000602 Rear Bumper (Black). Traxter CVT STDRear Bumper (Black). Traxter CVT STD
-
24705001267 Rear Bumper (Black). Traxter CVT XTRear Bumper (Black). Traxter CVT XT
-
25207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
26233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
