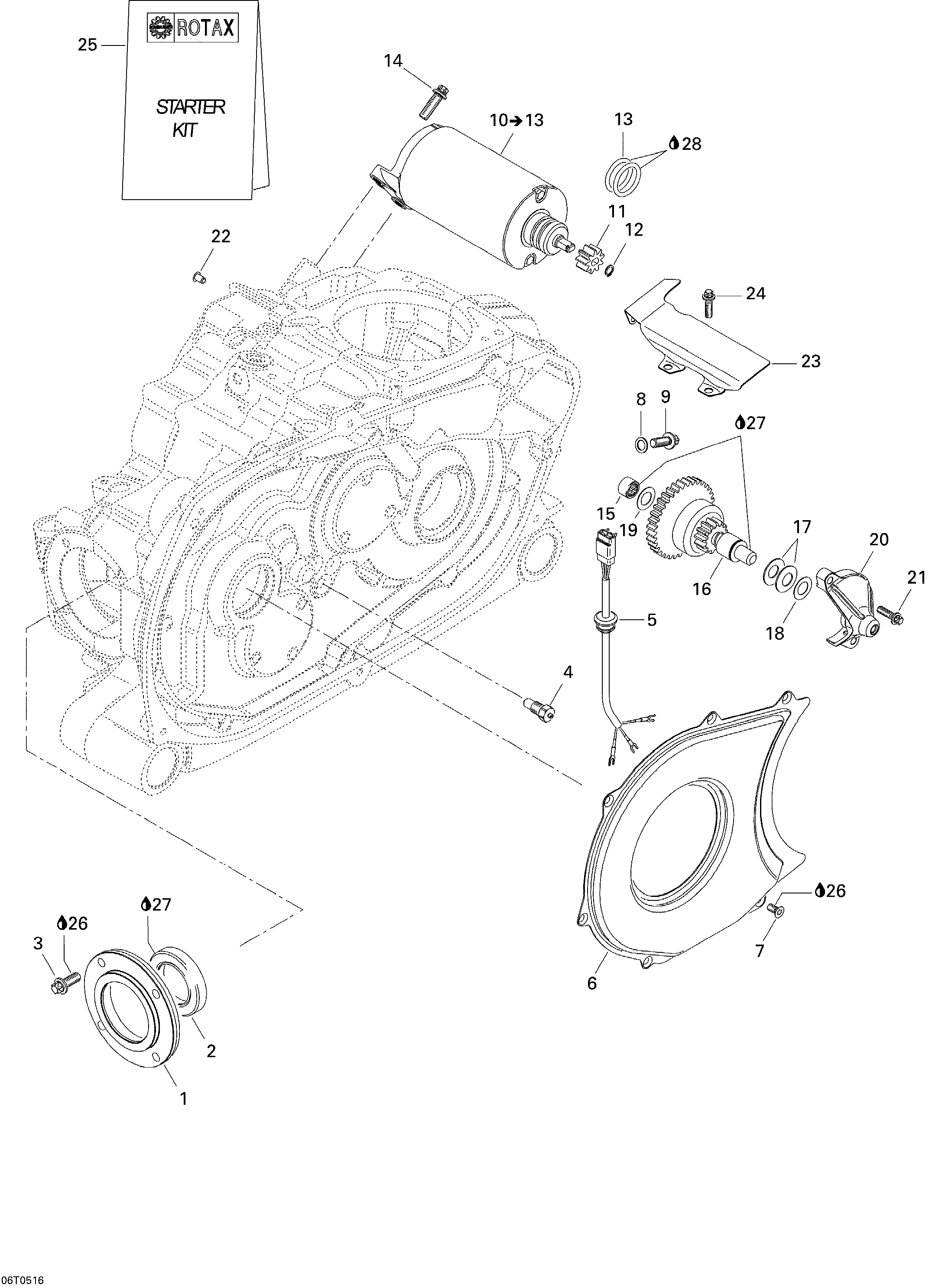

04- Electric Starter для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1420610243 Bearing CoverBearing Cover
-
2420650682 Oil SealOil Seal
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420241856 Contact Screw M10Contact Screw M10
-
5420265831 Wiring HarnessWiring Harness
-
6420610263 Air GuideAir Guide
-
7420241465 Screw Torx M6 X 12Screw Torx M6 X 12
-
8420950141 Sealing RingSealing Ring
-
9420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
10420888991 Electric Starter Ass'y. Includes 10 To 13Electric Starter Ass'y. Includes 10 To 13
-
11420834521 Starter Gear (9 Tooth)Starter Gear (9 Tooth)
-
12420845600 Retaining RingRetaining Ring
-
13420250300 O-ringO-ring
-
14420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420232480 Needle Bushing 12-16-10Needle Bushing 12-16-10
-
16703500286 Starter Bendix KitStarter Bendix Kit
-
17420238300 Spring WasherSpring Washer
-
18420827261 Thrust WasherThrust Washer
-
19420227450 Thrust WasherThrust Washer
-
20420610376 Gear CoverGear Cover
-
21420640690 Socket Screw M6 X 25Socket Screw M6 X 25
-
22420860245 PlugPlug
-
23420251240 Heat DeflectorHeat Deflector
-
24420440162 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
25420664710 Carbon Brush SetCarbon Brush Set
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27293550030 Grease, Super LubeGrease, Super Lube
-
28293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
