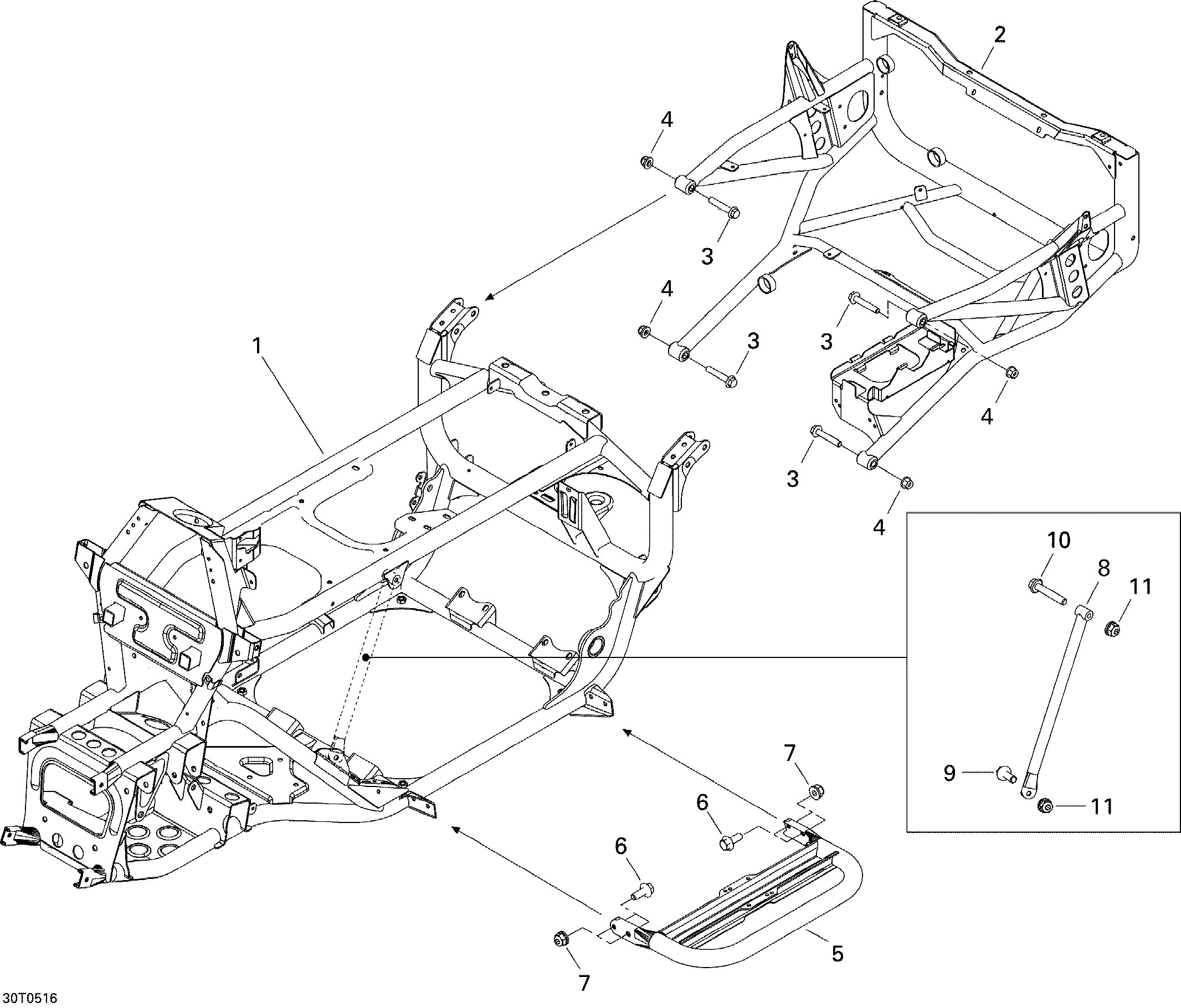

09- Frame для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1705200996 Black FrameBlack Frame
-
2705201039 Frame Extension (black)Frame Extension (black)
-
3207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
4233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5705000610 Footrest (Black)Footrest (Black)
-
6207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8705200404 RH Removable BraceRH Removable Brace
-
8705200405 LH Removable BraceLH Removable Brace
-
9207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
10207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
11233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
