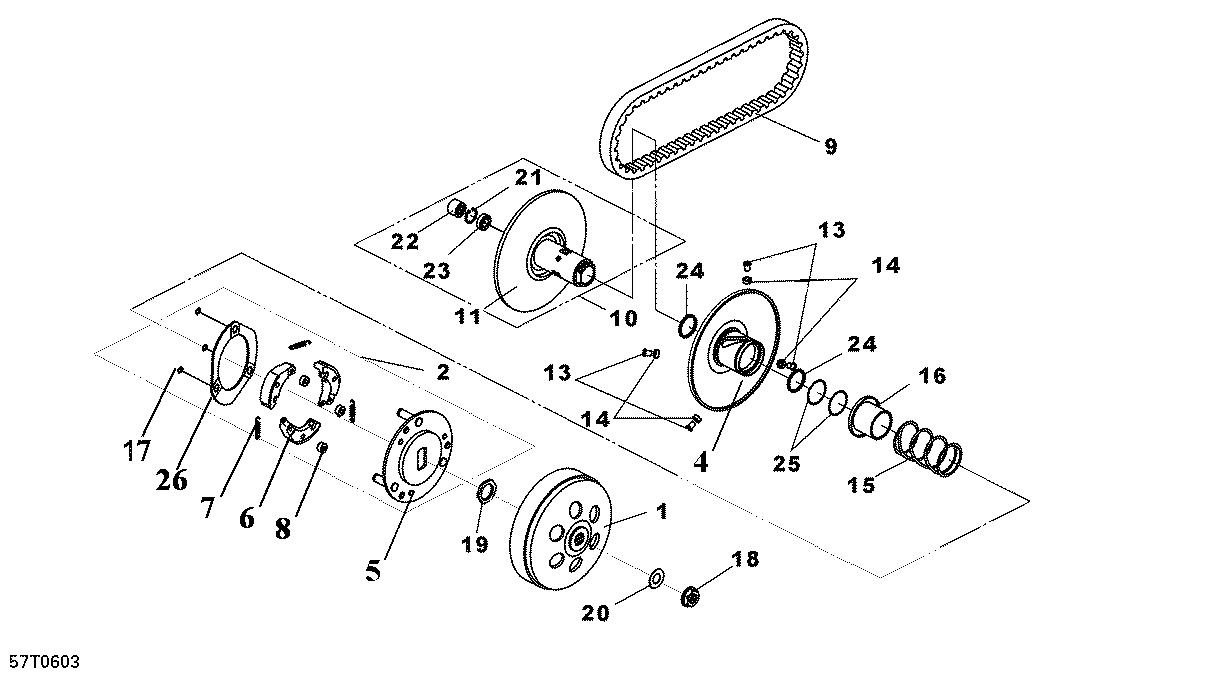

05- Driven Pulley для BRP DS 250, CE - 2006
-
№АртикулНазвание
-
1S22101HMA000 Outer ClutchOuter Clutch
-
2S22300RB1000 Drive Plate Ass'yDrive Plate Ass'y
-
4S23220HMA000 Movable FlangeMovable Flange
-
9S23100RB1000 Drive BeltDrive Belt
-
11S23210HMA000 Fix FlangeFix Flange
-
13S23225HMA000 PinPin
-
14S23226HMA000 Guide RollerGuide Roller
-
15S23233HMA000 Driven Pulley SpringDriven Pulley Spring
-
16S23237HMA000 Seal CollarSeal Collar
-
18S90201KR8751 Flanged Nut 14 mmFlanged Nut 14 mm
-
19S90202HMA000 Special NutSpecial Nut
-
20S90401KJ9000 Thrust WasherThrust Washer
-
21S90602HMA000 CirclipCirclip
-
22S91006HMA300 Needle BearingNeedle Bearing
-
23S91007HMA300 BearingBearing
-
24S91211HMA000 Oil SealOil Seal
-
25S91305HMA000 O-ringO-ring
