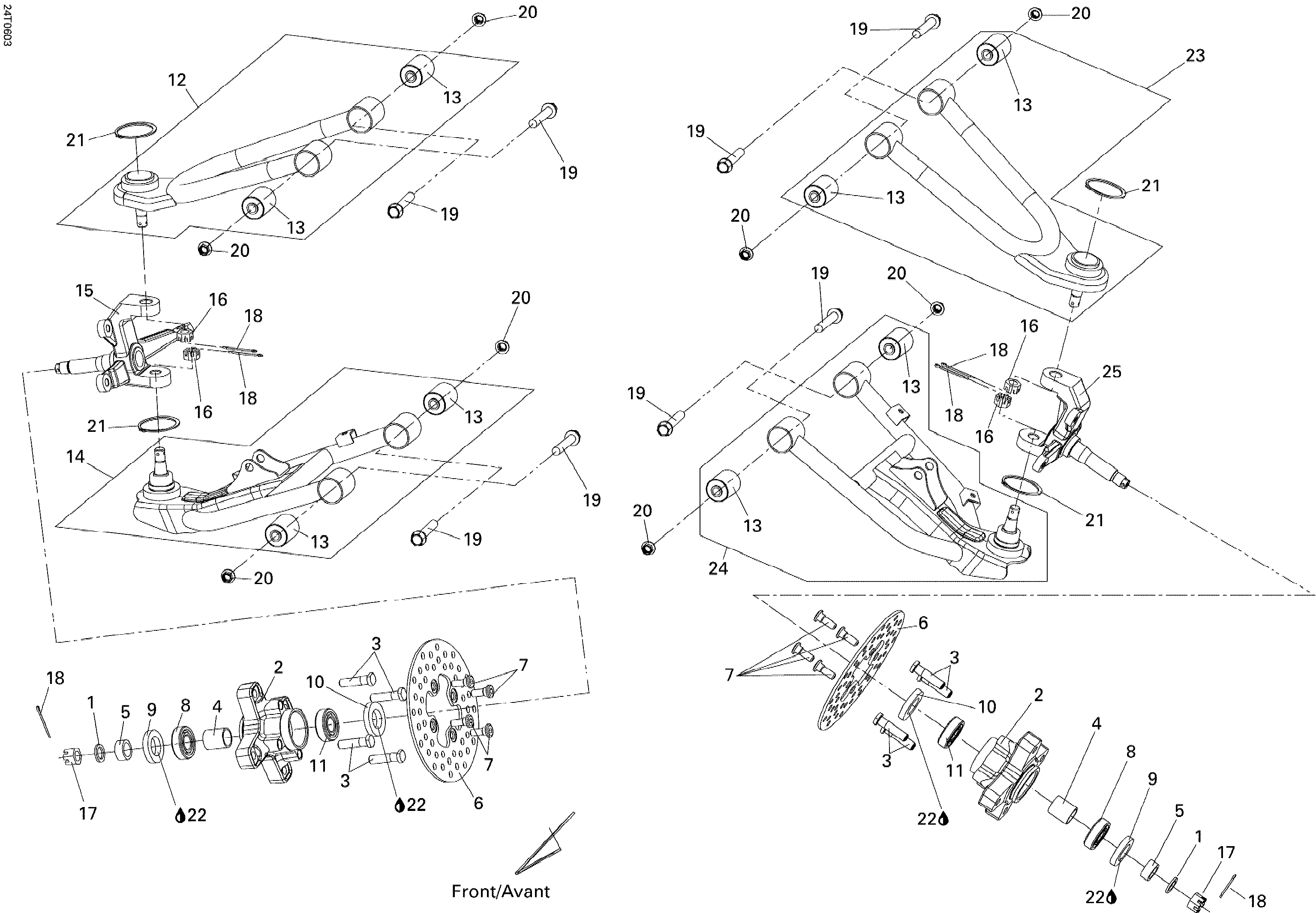

07- Front Suspension для BRP DS 250, CE - 2006
-
№АртикулНазвание
-
1S44611RCA000 Front Wheel WasherFront Wheel Washer
-
2S44610RCA000 Front Wheel HubFront Wheel Hub
-
3S44612RCA000 Wheel StudWheel Stud
-
4S44620RCA000 Inner SpacerInner Spacer
-
5S44622RCA000 Outer CollarOuter Collar
-
6S45351RCA000 Brake DiskBrake Disk
-
7S90105KR3000 Bolt M8 X 24Bolt M8 X 24
-
8S91028GA7003 Ball BearingBall Bearing
-
9S91202RCA000 Oil SealOil Seal
-
10S91205RCA000 Oil SealOil Seal
-
11S961506004310 Ball BearingBall Bearing
-
12S50200RCA000 RH Upper Arm Ass'yRH Upper Arm Ass'y
-
13S50201RCA000 Swing Lock BushingSwing Lock Bushing
-
14S50220RCA000 RH Lower Arm Ass'yRH Lower Arm Ass'y
-
15S50240RCA000 RH Knuckle Ass'yRH Knuckle Ass'y
-
16232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
17S94011142000S Hex. Castlellated Nut 14 mmHex. Castlellated Nut 14 mm
-
18211400011 Cotter PinCotter Pin
-
19S958011006007 Flanged Bolt M10 X 60Flanged Bolt M10 X 60
-
20S90304RCA000 Flanged Nylon Nut 10 mmFlanged Nylon Nut 10 mm
-
21S9451029120 CirclipCirclip
-
22293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
23S50210RCA000 LH Upper Arm Ass'yLH Upper Arm Ass'y
-
24S50230RCA000 LH Lower Arm Ass'yLH Lower Arm Ass'y
-
25S50250RCA000 LH Knuckle Ass'yLH Knuckle Ass'y
