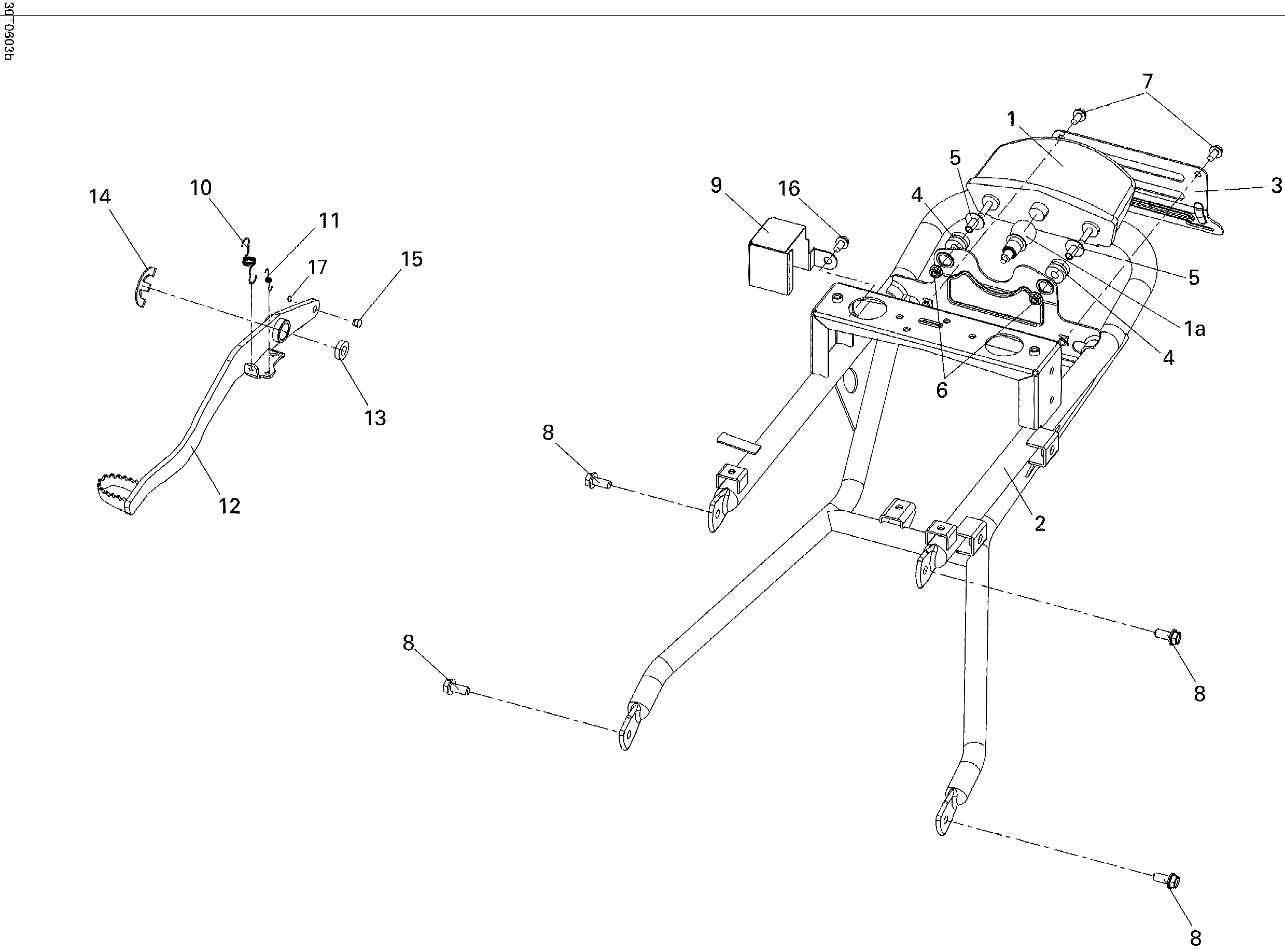

09- Rear Frame для BRP DS 250, CE - 2006
-
№АртикулНазвание
-
1S33700RCA000 Tail Light Ass'yTail Light Ass'y
-
1aS34906RCA000 Tail Light BulbTail Light Bulb
-
2S50180RCA000 Rear FrameRear Frame
-
3S50185RCA000 License BracketLicense Bracket
-
4S80103X01000 Rubber WasherRubber Washer
-
5S80104X01000 Rear Fender CollarRear Fender Collar
-
6S9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
7S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
8S958010801807 Flanged Bolt M8 X 18Flanged Bolt M8 X 18
-
9S50175RCA000 CVT Tube ProtectorCVT Tube Protector
-
10S50706RCA000 Brake Pedal SpringBrake Pedal Spring
-
11S50707RCA000 Brake Switch SpringBrake Switch Spring
-
12S50708RCA000 Brake Pedal Ass'yBrake Pedal Ass'y
-
13S50709RCA000 Brake Plate WasherBrake Plate Washer
-
14S9454005017 E RingE Ring
-
15S91510RCA000 PinPin
-
16S958010801207 Flanged Bolt M8 X 12Flanged Bolt M8 X 12
-
17293370002 C RingC Ring
