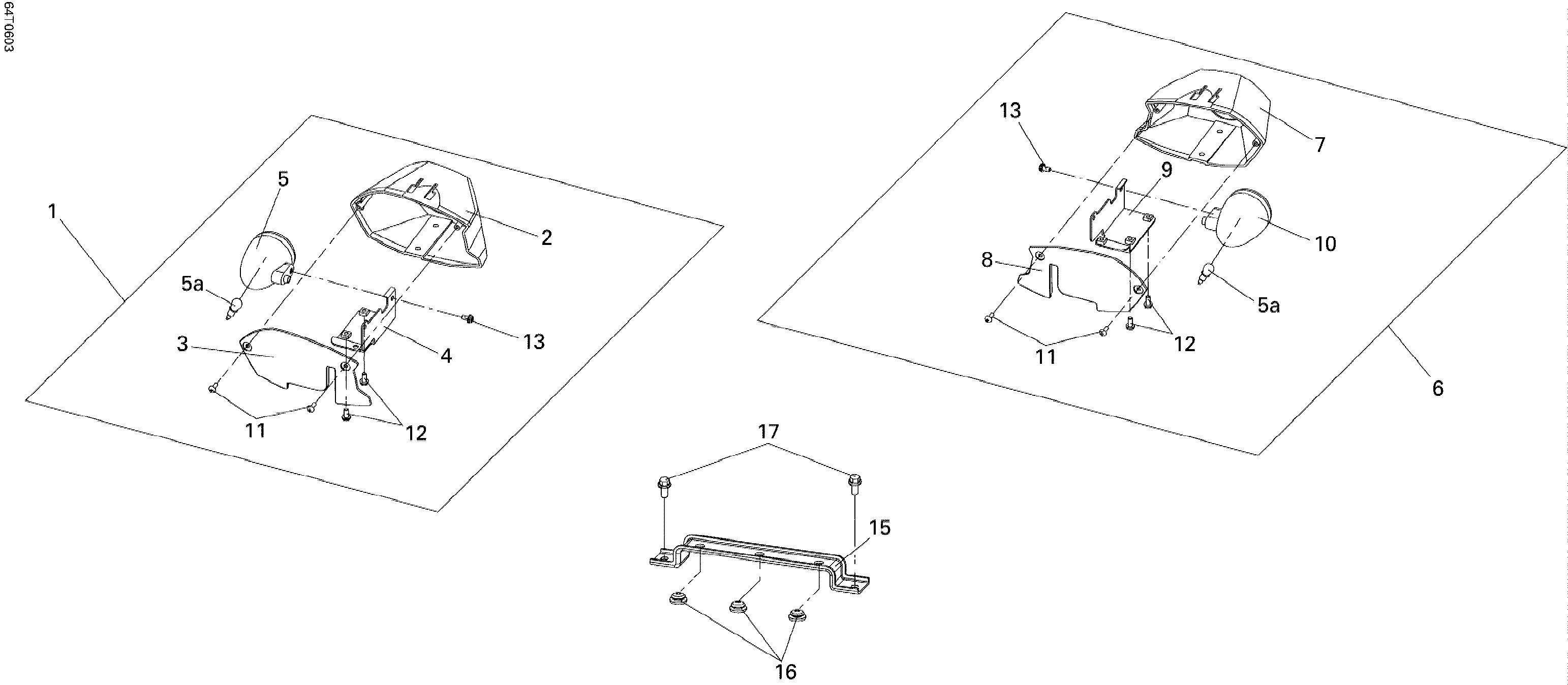

10- Flasher Lights для BRP DS 250, CE - 2006
-
№АртикулНазвание
-
1S8344ARCA000 RH Flasher Ass'yRH Flasher Ass'y
-
5aS34905RCA000 Flasher Light Bulb, 21wFlasher Light Bulb, 21w
-
6S8345ARCA000 LH Flasher Ass'yLH Flasher Ass'y
-
15S50324RCA000 Battery BracketBattery Bracket
-
16S83618MKA000 Battery GrommetBattery Grommet
-
17S934040601607 Washer Bolt M6 X 16Washer Bolt M6 X 16
