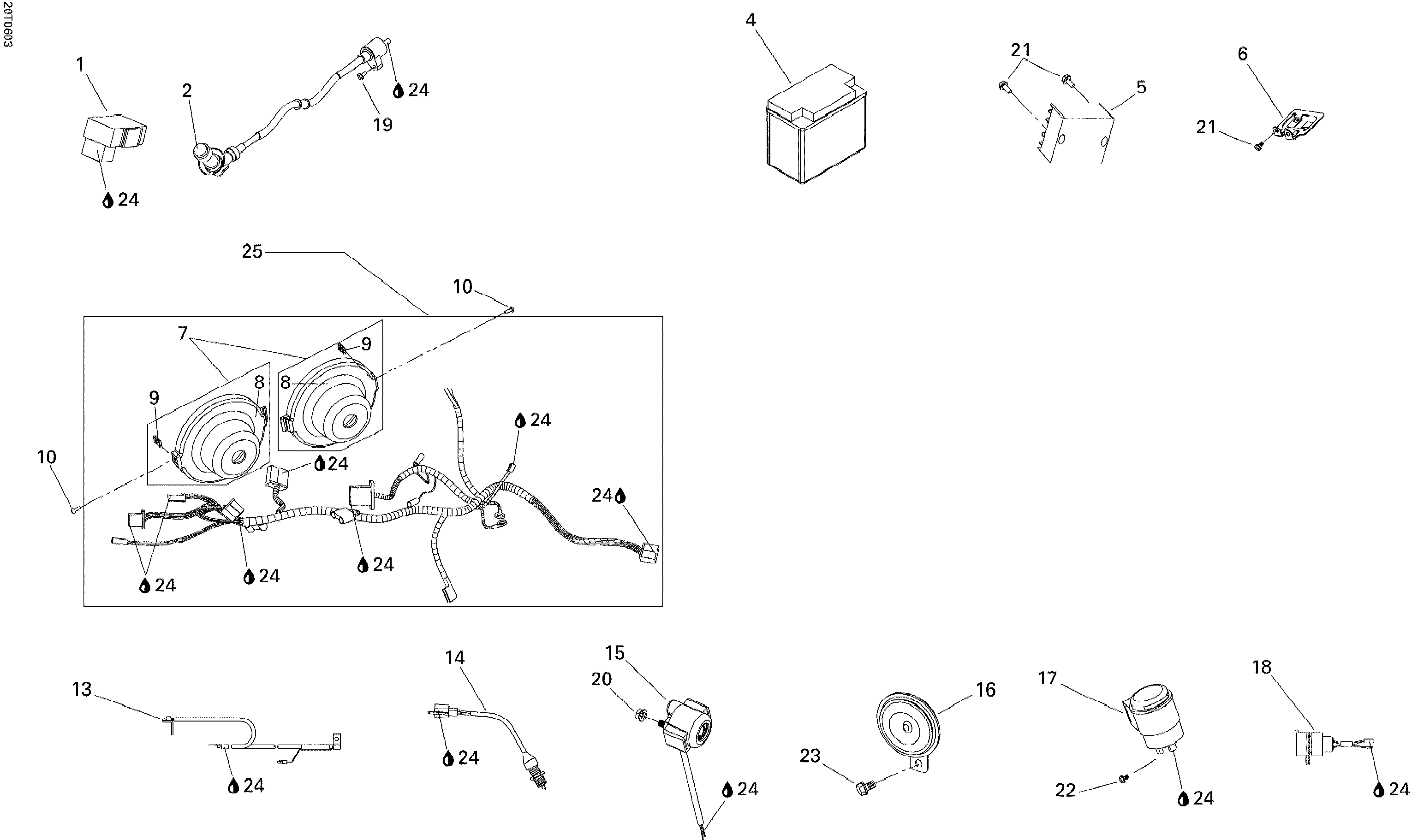

10- Electrical Components для BRP DS 250, CE - 2006
-
№АртикулНазвание
-
1S30400RCA000 Cdi Unit Ass'yCdi Unit Ass'y
-
2S3051ARB1000 Ignition CoilIgnition Coil
-
4715900031 Battery 12 AmpBattery 12 Amp
-
5S31600RCA000 RectifierRectifier
-
6S31601RCA000 Rectifier SupportRectifier Support
-
7S6310BRCA000 Head Light Rear Cover Ass'yHead Light Rear Cover Ass'y
-
9S90302V02000 Spring NutSpring Nut
-
10S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
13S32412RB1000 Ground CableGround Cable
-
14S35350RCA000 Rear Stop Switch AssyRear Stop Switch Assy
-
15S3585ARCA000 Starter Solenoid And Positive CableStarter Solenoid And Positive Cable
-
16S38110RCA000 HornHorn
-
17S38301RA1000 Flasher RelayFlasher Relay
-
18S38600RA1000 DC Power Outlet, 12 VoltsDC Power Outlet, 12 Volts
-
19S90112GK8000 Flanged Bolt M5 X 22Flanged Bolt M5 X 22
-
20S9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
21S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
22S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
23S958010801207 Flanged Bolt M8 X 12Flanged Bolt M8 X 12
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25S32100RCA000 Electrical Harness Ass'yElectrical Harness Ass'y
