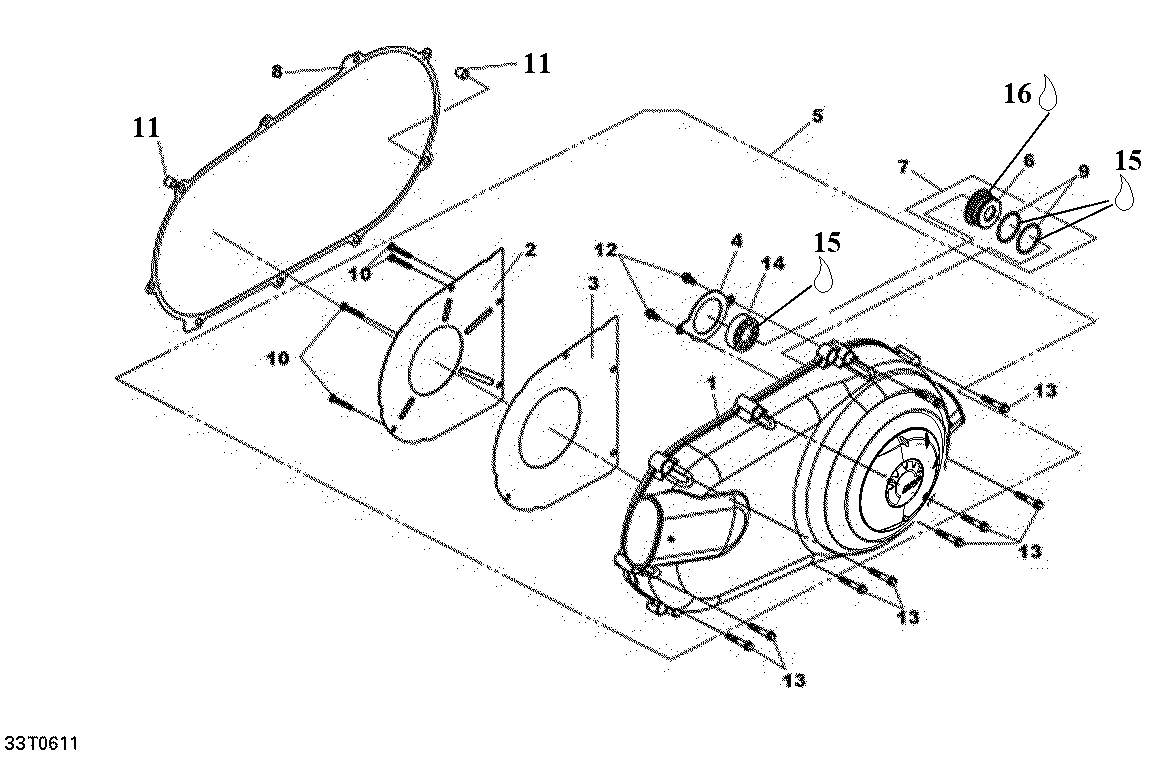

05- CVT Cover для BRP DS 250 NA / Inter - 2006
-
№АртикулНазвание
-
5S1134ARCA000 LH Crankcase CVT Cover Ass'yLH Crankcase CVT Cover Ass'y
-
7S1137AHMA000 Bearing Collar Ass'yBearing Collar Ass'y
-
8S11395RB1000 GasketGasket
-
11S9430108140 Dowel PinDowel Pin
-
12S960010601200 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
13S960010603500 Flanged Hex. Screw M6 X 35Flanged Hex. Screw M6 X 35
-
14504152418 Ball BearingBall Bearing
-
16293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
