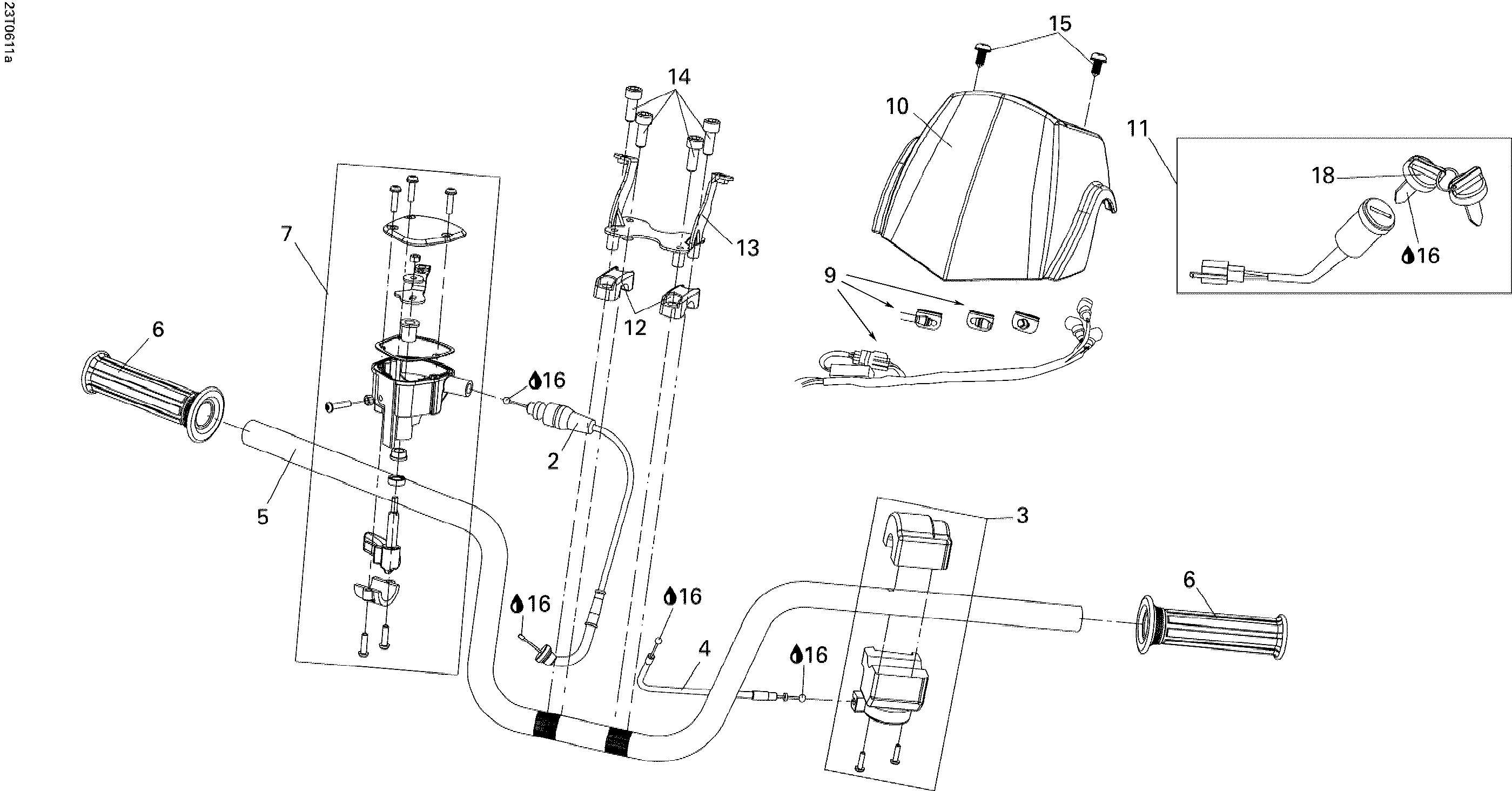

07- Handlebar для BRP DS 250 NA / Inter - 2006
-
№АртикулНазвание
-
2S17910RCA000 Throttle CableThrottle Cable
-
3S35200RCB000 Multifunction Switch Assy.Multifunction Switch Assy.
-
4S44850RCA000 Choke CableChoke Cable
-
5S53100RCA000 Handle BarHandle Bar
-
6S53166N01000 Handle GripHandle Grip
-
7S53190RCA000 Throttle Lever Ass'yThrottle Lever Ass'y
-
9S37224RCB000 Position Light Harness Ass'yPosition Light Harness Ass'y
-
10S53210RCB000 Steering CoverSteering Cover
-
11S35010RCB000 Ignition Switch And Key SetIgnition Switch And Key Set
-
12S53131RCA000 Handle Bar Upper ClampHandle Bar Upper Clamp
-
13S53106RCB000 Steering Cover SupportSteering Cover Support
-
14S967000804007 Socket Bolt M8 X 40Socket Bolt M8 X 40
-
15S938910501207 Flanged Bolt M5 X 12Flanged Bolt M5 X 12
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18S35115RCA0000A Blank Ignition Key ABlank Ignition Key A
-
18S35115RCA0000B Blank Ignition Key BBlank Ignition Key B
-
18S35115RCA0000C Blank Ignition Key CBlank Ignition Key C
-
18S35115RCA0000D Blank Ignition Key DBlank Ignition Key D
