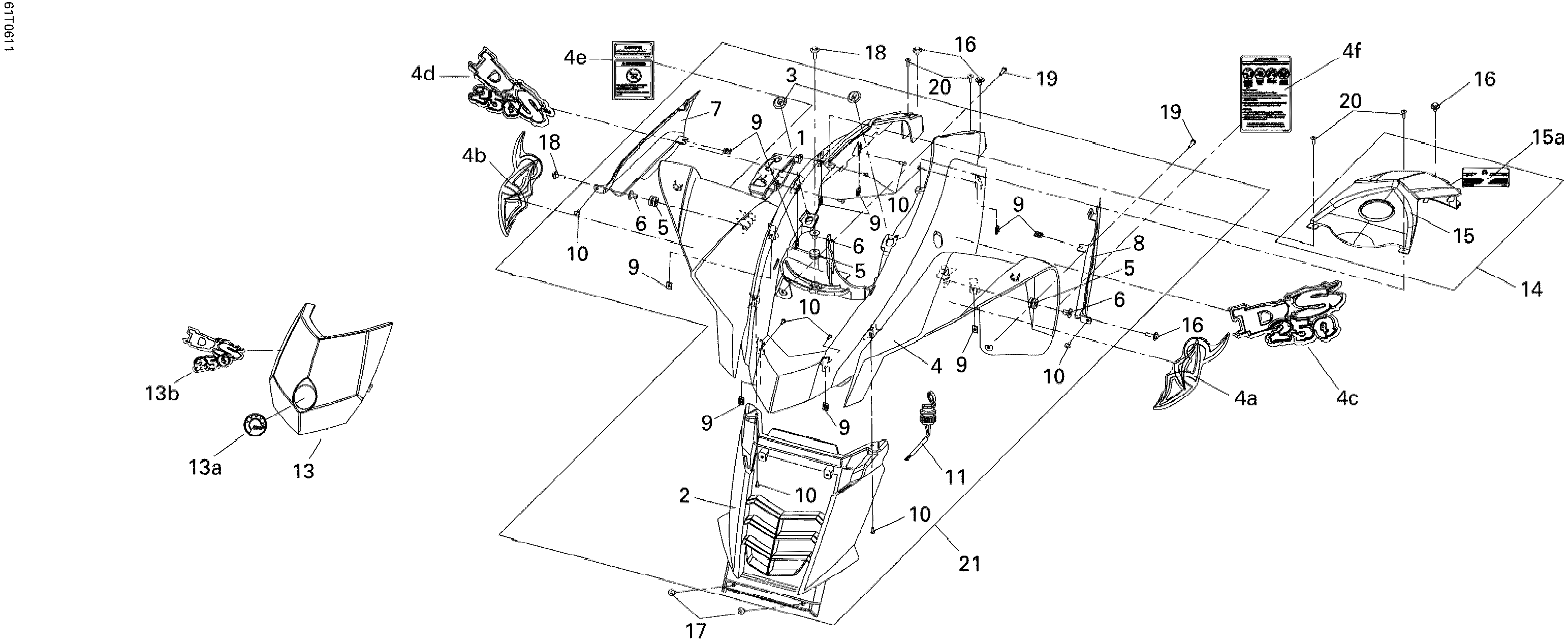

09- Front Fender для BRP DS 250 NA / Inter - 2006
-
№АртикулНазвание
-
1S46220RCA000 Shift Lever CoverShift Lever Cover
-
2S50611RCA000 Radiator GrillRadiator Grill
-
3S61105RCA000 GrometGromet
-
4S6110GRCA000 Front FenderFront Fender
-
4aS87134RCA000 LH Front Fender DecalLH Front Fender Decal
-
4bS87135RCA000 RH Front Fender DecalRH Front Fender Decal
-
4cS87136RCA000 LH Front Decal ''DS 250''LH Front Decal ''DS 250''
-
4dS87137RCA000 RH Front Decal ''DS 250''RH Front Decal ''DS 250''
-
4eS8750ARCA000 Warning Label, Under 16 YearsWarning Label, Under 16 Years
-
4fS87501RCA000 Warning Label, Death And InjuryWarning Label, Death And Injury
-
5S80103X01000 Rubber WasherRubber Washer
-
6S80104X01000 Fender CollarFender Collar
-
7S83520RCA000 RH Side PannelRH Side Pannel
-
8S83620RCA000 LH Side PannelLH Side Pannel
-
9S90302V02000 Clip NutClip Nut
-
10S9390332280 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
11S38600RA1000 DC Power Outlet, 12 VoltsDC Power Outlet, 12 Volts
-
13S64305RCA000 Radiator CoverRadiator Cover
-
13aS87500RCA000 Brp LogoBrp Logo
-
13bS87130RCA000 Decal Ds 250Decal Ds 250
-
14S4302GRCB000 Fuel Tank Cover Ass'yFuel Tank Cover Ass'y
-
15aS87513RCA000 Fuel Tank Cover DecalFuel Tank Cover Decal
-
16S934040601407 Washer BoltWasher Bolt
-
17S90164RCA000 Special ScrewSpecial Screw
-
18S934040602507 Washer BoltWasher Bolt
-
19S9390344380 Tapping ScrewTapping Screw
-
20S9390345380 Taping Screw M5 X 16Taping Screw M5 X 16
