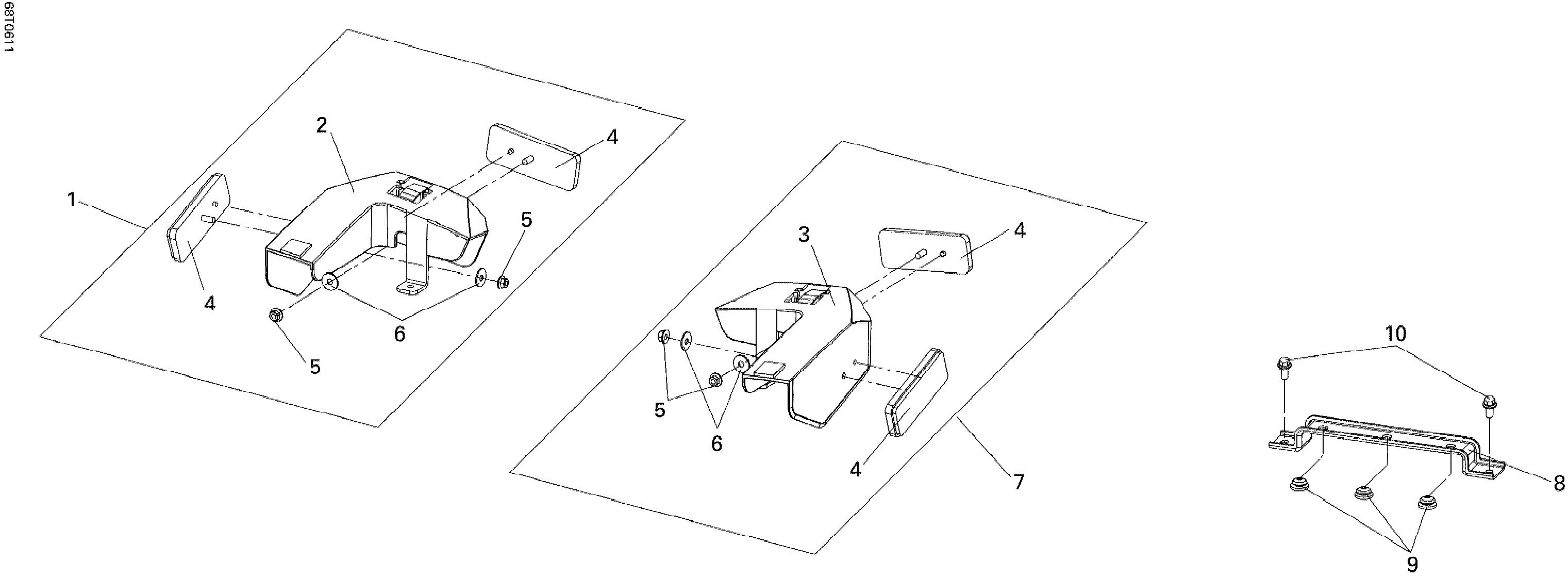

09- Rear Reflectors для BRP DS 250 NA / Inter - 2006
-
№АртикулНазвание
-
1S8330ARCB000 RH Reflector SetRH Reflector Set
-
5S9405005000 Flanged Nut 5 mmFlanged Nut 5 mm
-
6S9410305800 WasherWasher
-
7S8330BRCB000 LH Reflector SetLH Reflector Set
-
8S50324RCA000 Battery BracketBattery Bracket
-
9S83618MKA000 Battery GrommetBattery Grommet
-
10S934040601607 Washer Bolt M6 X 16Washer Bolt M6 X 16
