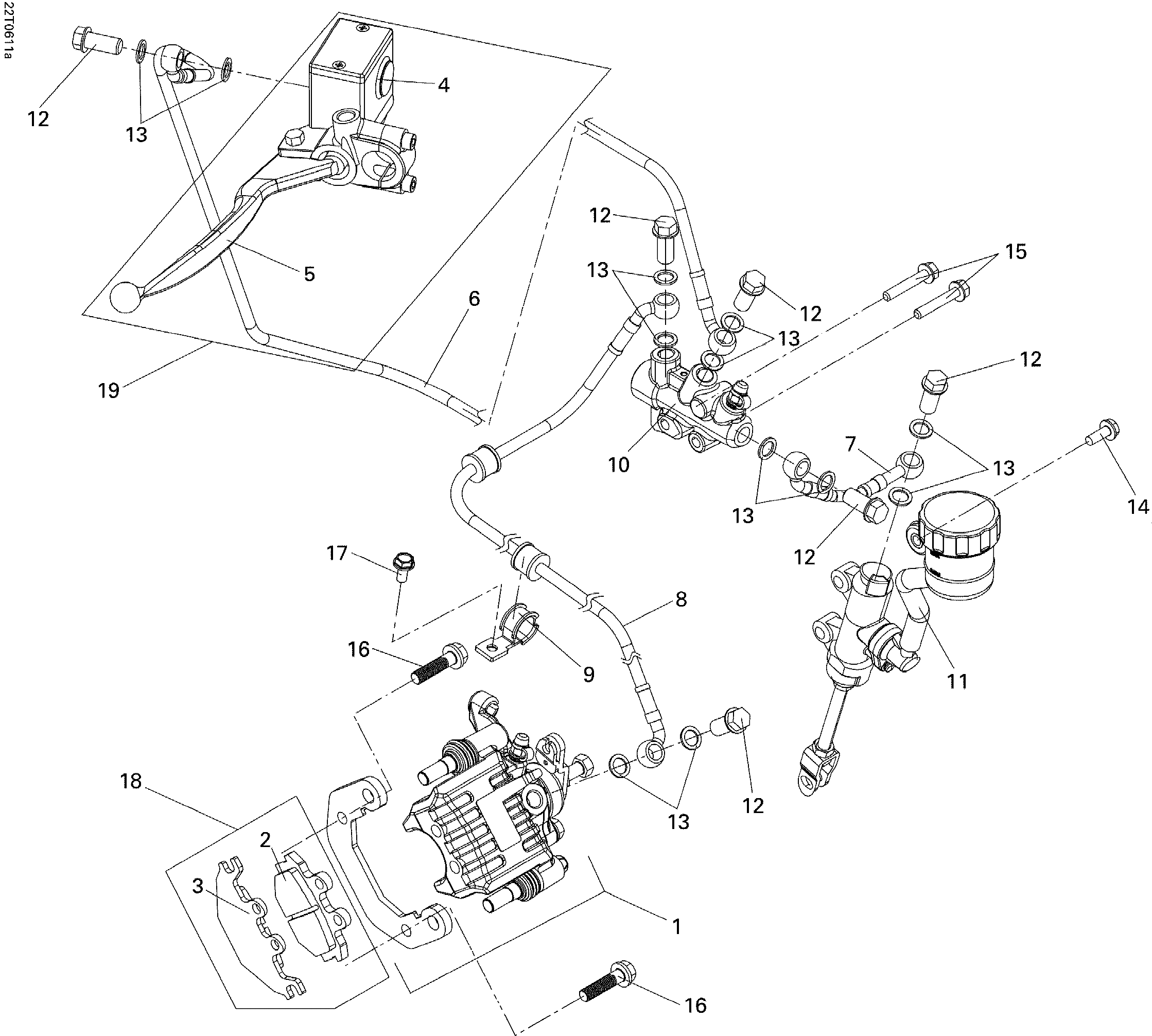

06- Brakes Rear для BRP DS 250 NA / Inter - 2006
-
№АртикулНазвание
-
1S43100RCB000 Rear Brake Caliper Ass'yRear Brake Caliper Ass'y
-
6S46202RCB000 Brake HoseBrake Hose
-
7S46205RCB000 Foot Master Cylinder HoseFoot Master Cylinder Hose
-
8S46206RCB000 Rear Brake Caliper HoseRear Brake Caliper Hose
-
9S45156H3C000 Hose ClampHose Clamp
-
10S46300RCB000 Pressure Control ValvePressure Control Valve
-
11S46500RCA000 Foot Master Cylinder AssyFoot Master Cylinder Assy
-
12S90145M9Q000 Banjo BoltBanjo Bolt
-
13S90545M9Q000 Oil Bolt WasherOil Bolt Washer
-
14S958010601807 Flanged Bolt M6 X 18Flanged Bolt M6 X 18
-
15S958010604007 Flanged Bolt M6 X 40Flanged Bolt M6 X 40
-
16S958010803007 Flanged Bolt M8 X 30Flanged Bolt M8 X 30
-
17S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
18S4311ARCA000 Rear Brake Pad KitRear Brake Pad Kit
-
19S43500RCB000 Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
